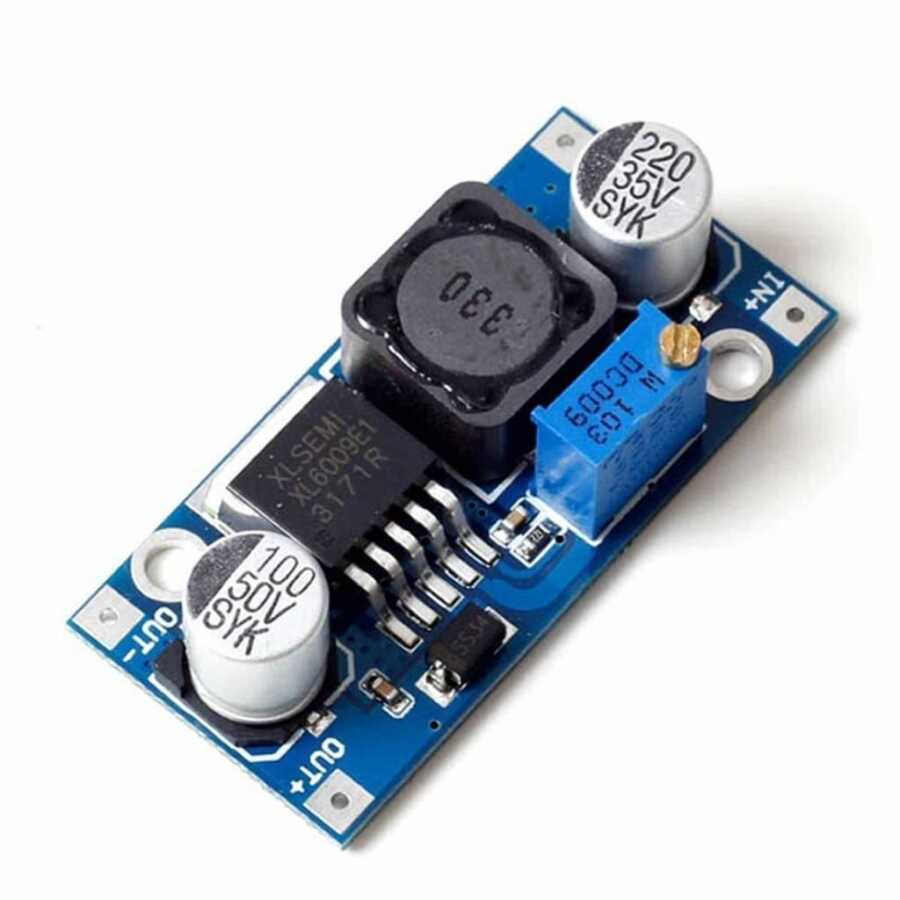

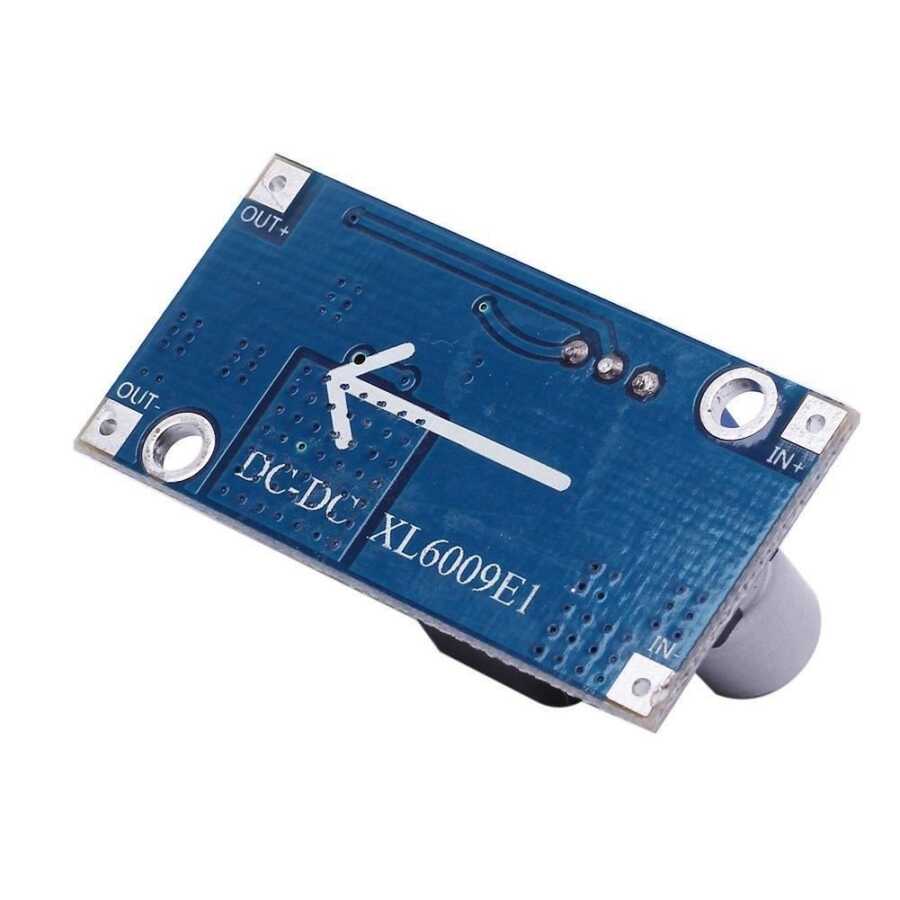

4A Adjustable Voltage Regulator Board - XL6009

Finding power supplies for your project can be quite difficult and time consuming, especially if your project requires a number of components with varying voltages DC-DC Voltage Amplifier LM2577 converts low voltage to a higher voltage without the need for additional voltage. It has the ability to carry 4A load.

You can adjust the output voltage between 5-35V with the trimpot on it. Since it is a voltage booster module, you should always set the input voltage lower than the output voltage.

Technical Specifications

Module Features: Stepped (Boost) switching regulator

Rectification: Non-Synchronous Rectification

Input voltage: DC 3.0 - 32V

Output Voltage: Adjustable 5.0 - 35V DC

Output Current: max. 4A

Conversion efficiency:Up to 94%

Voltage regulation:0.5%

Load regulation:0.5%

Switching Frequency: 400KHz

Output Ripple: 50mV

Operating temperature: Industrial grade (-40 to + 85 ° C)

Dimensions: 43mm x 21 mm x 14mm

Mini Adjustable 3A Voltage Regulator Card

Note: For first use, increase the output voltage, slowly turn the potentiometer clockwise for about 7-8 turns.

How to set up before use:

Make sure the power input is not greater than the input voltage specified in the specifications.
Set the multimeter to DC Voltage.
Slowly turn the adjustment potentiometer to the desired voltage.
