12V Input Multi-Output Voltage Converter 3.3V 5V 12V

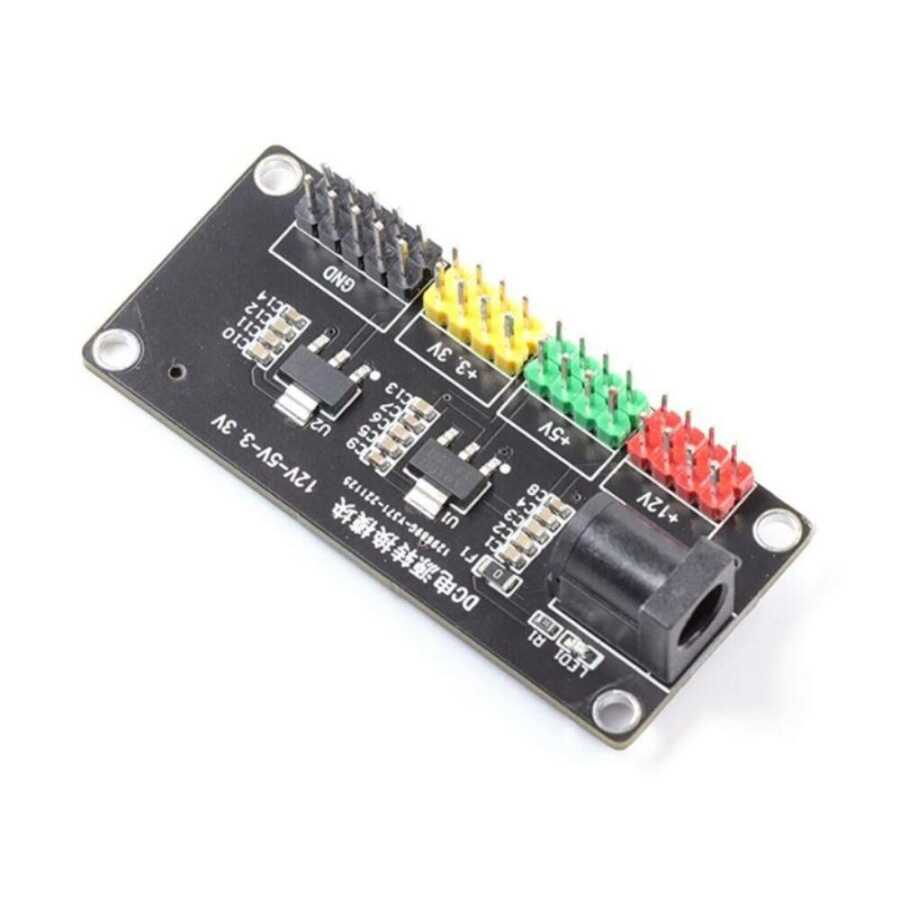

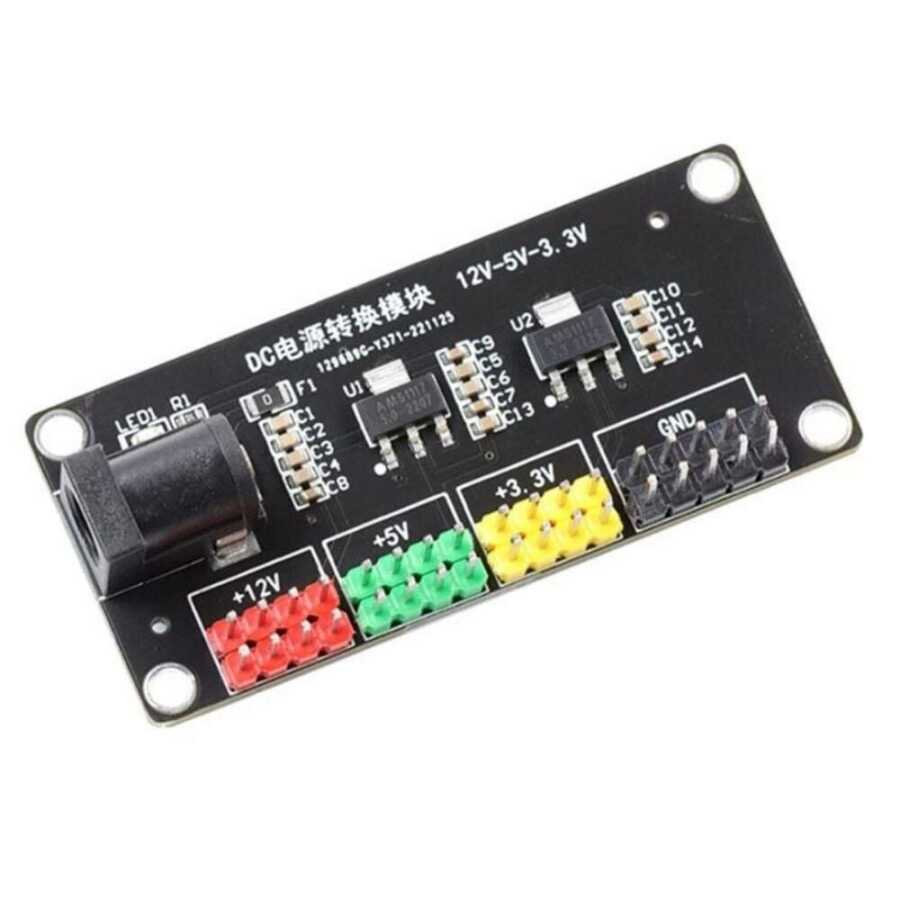

12V Input Multi-Output Voltage Converter 3.3V 5V 12V. It is a converter that allows you to get 3.3, 5 and 12V output by feeding it with a 12V 1A adapter. There are headers in sections on the module to get the required voltage. You can get the output you want from the header in the required section. 8 pins in 3.3, 5, 12V compartment; There is a 10-pin header in the GND compartment.
The current drawn by the device you will use with the converter should not exceed 800mA.
If exceeded, the module will be damaged.
Features
- Supply Voltage: 12V
- Supply Current: 1A
- Output Voltage: 3.3, 5, 12VDC
- Output Current: 800mA (maximum)
- Usable Adapter Tip: 5.5x2.1mm
- PCB Board Size: 59.5x26.5mm
