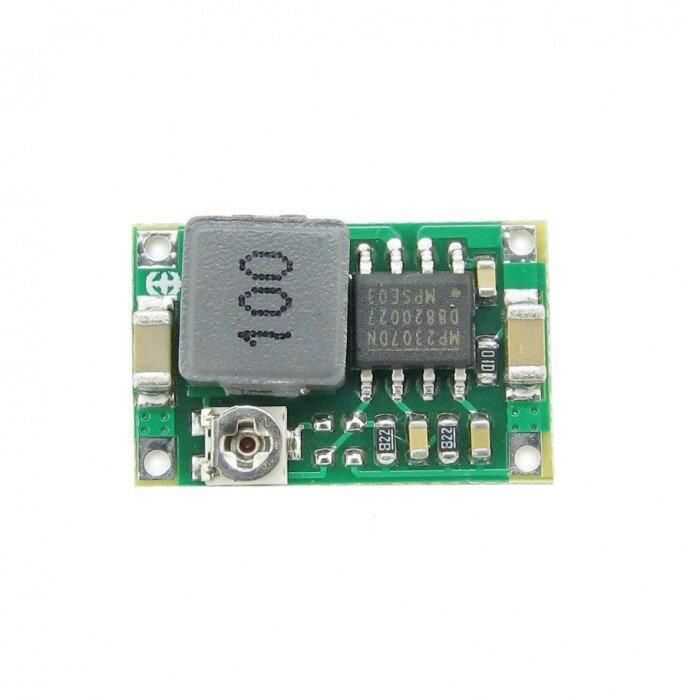

2A Mini Adjustable Voltage Step Down Regulator Board

Mini 360 DC DC 2A voltage step down module, smaller and more efficient, integrated molded power inductor and synchronous rectifier control uses the chip. Input voltage is in the range of 4.75-23V and output voltage is in the range of 1-17V.

Technical Specifications

Module Features: Uninsulated Buck

Rectification: Synchronous rectification

Input Voltage: DC 4.75 - 23V

Output Voltage: DC 1.0 - 17V

Output Current: 2A ;

Conversion efficiency: 96% Max.

Switching Frequency: 340KHz

Output Ripple: 30mV (no load)

Load regulation: ±0.5%

Voltage regulation: ±2.5%

Operating temperature: Industrial grade -40 to + 85 ° C

Dimensions: 17mm x 11mm x 3.8mm
