56-00024 80A Battery Disconnect Switch

56-00024 80A Battery Disconnect Switch

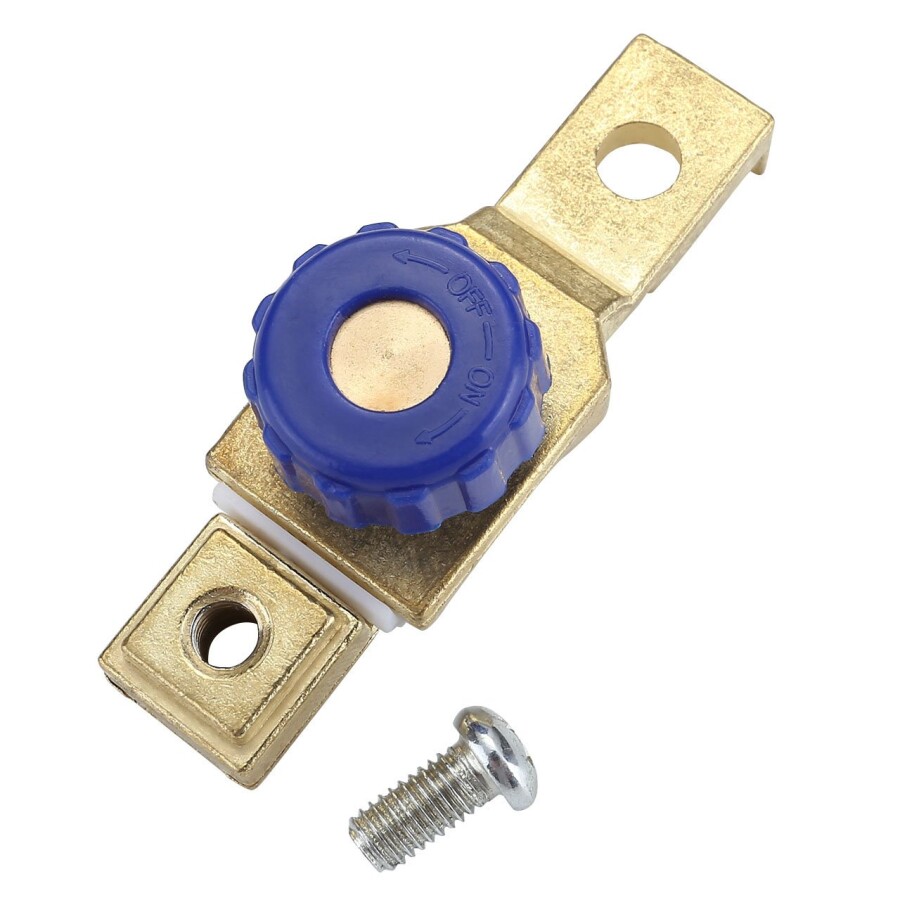

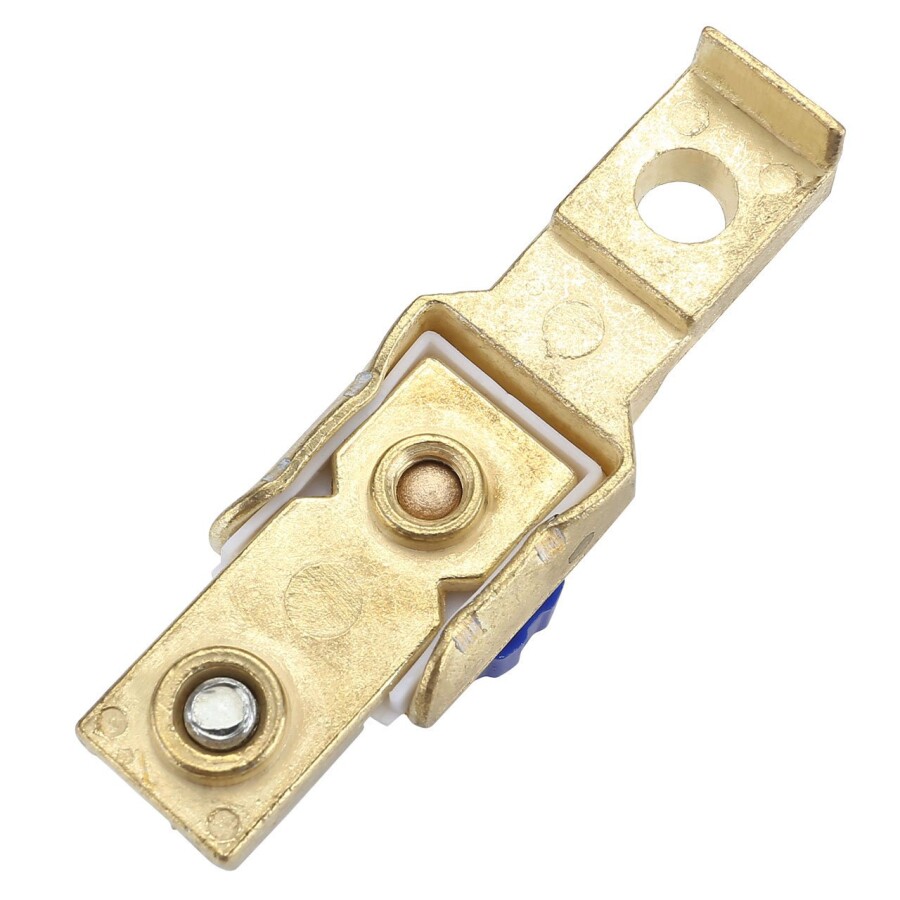

The 56-00024 80A Battery Disconnect Switch is a compact battery isolation switch designed to easily connect or disconnect the motorcycle battery's negative terminal from the electrical system. Suitable for use with 6V and 12V DC motorcycle batteries, this product is specifically designed for negative battery terminals featuring a 6 mm connection hole.

With a rated current capacity of 80A, the switch is designed for use in low-voltage motorcycle battery systems. Disconnecting the battery from the electrical system when the vehicle is not in use for extended periods helps reduce unnecessary energy consumption caused by standby currents and prevents the battery from draining.

It also facilitates the temporary disconnection of the battery from the system during maintenance and repair operations.

Applications

• Motorcycle battery systems
• 6V motorcycle electrical systems
• 12V motorcycle electrical systems
• Negative battery terminals with a 6 mm connection hole
• Disconnecting the battery when the motorcycle is not in use for extended periods
• Reducing battery drain caused by standby current
• Temporarily isolating the battery during maintenance and repair
• Manual battery cutoff applications in compact spaces

Specifications

• Operating Voltage: 6-12V DC
• Rated Current: 80A
• Connection Terminal: Negative

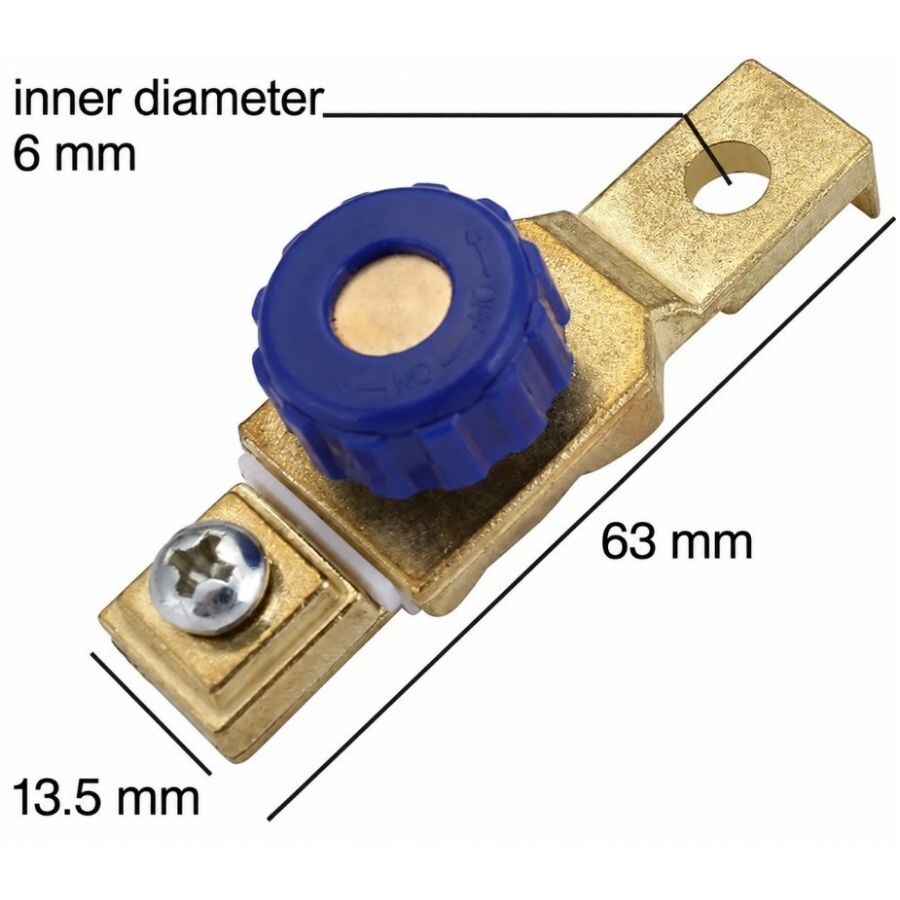

• Battery Terminal / Hole Size: 6 mm / 0.25"
• Connection Type: Screw-type
• Control Type: Rotary knob
• Body Structure: Compact L-type design
• Material: Brass
• Dimensions: 63 × 20 × 25 mm
• Mounting Type: Panel mount
• Compatibility: Motorcycle battery systems
