56-00028 125A Battery Disconnect Switch

56-00028 125A Battery Disconnect Switch

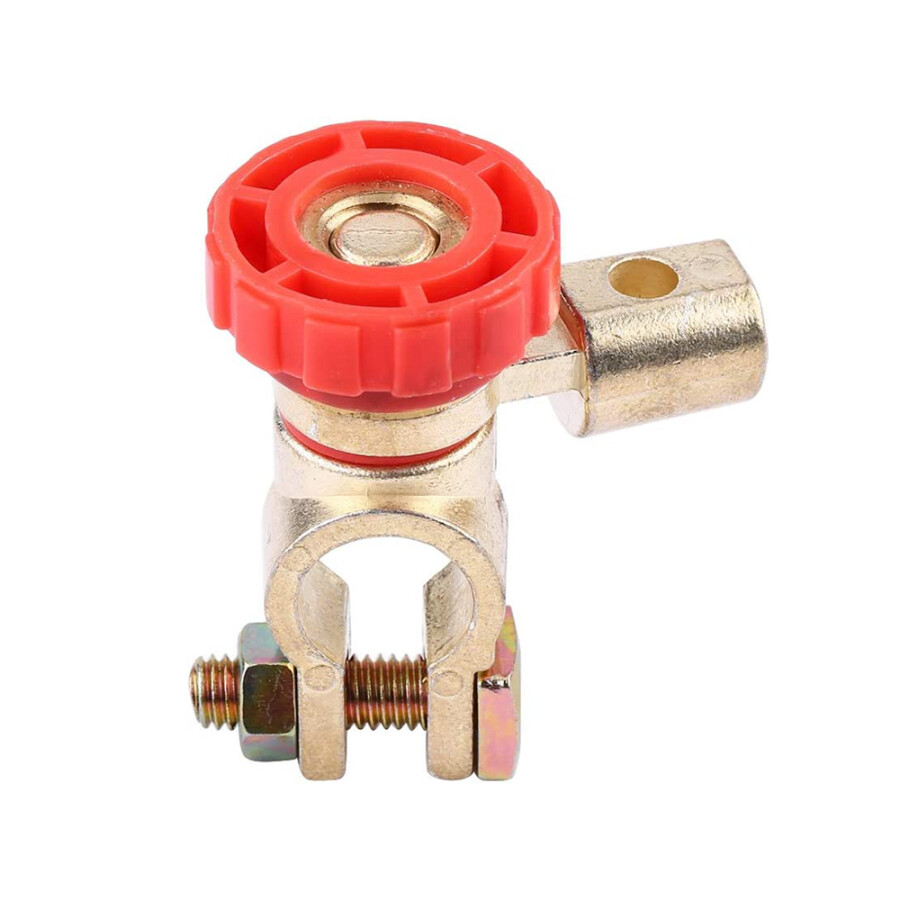

The 56-00028 125A Battery Disconnect Switch is a compact battery isolation switch designed to manually connect and disconnect the link between the battery's negative terminal and the vehicle's electrical system. It is particularly suitable for use with top-post negative battery terminals.

The product is compatible with 12-24V DC systems and features a capacity of 125A continuous current and 500A cranking current. This allows it to be used to control the main power connection in the battery systems of cars, boats, trucks, RVs, and various other vehicles.

Applications

• Car battery systems
• Boat and yacht electrical systems
• Trucks and commercial vehicles
• RVs and motorhomes
• Motorcycles
• Jet skis and similar watercraft
• Racing vehicles
• 12V and 24V DC battery systems
• Negative top-post batteries
• Disconnecting the battery when the vehicle is not in use for extended periods
• Reducing standby current draw
• Isolating the electrical system during maintenance and repair
• Quickly connecting or disconnecting the main battery

Specifications

• Product Type: Top-post battery disconnect / battery isolation switch
• Operation: ON – OFF
• Operating Voltage: 12-24V DC
• Continuous Current Rating: 125A
• Cranking Current Rating: 500A
• Connection Terminal: Negative Battery Terminal
• Terminal Type: Negative top-post

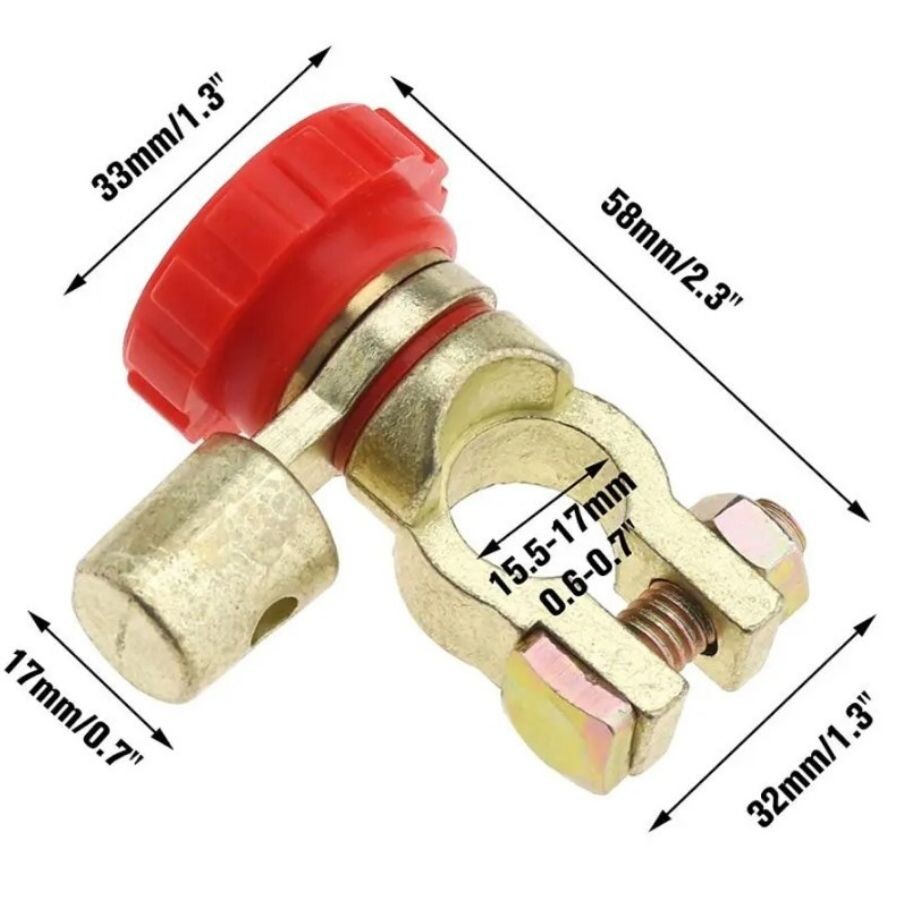

• Terminal Hole Diameter: 17.5 mm
• Compatible Terminal Range: 15.5–17 mm
• Compatible Cable Gauge: 4-6 AWG
• Material: Zinc alloy and brass
• Control Type: Side-mounted rotary knob
• Mounting Type: Direct connection to the negative top battery terminal
