ASW-A1001 250A Knife-Blade Type Battery Disconnect Switch

ASW-A1001 250A Knife-Blade Type Battery Disconnect Switch

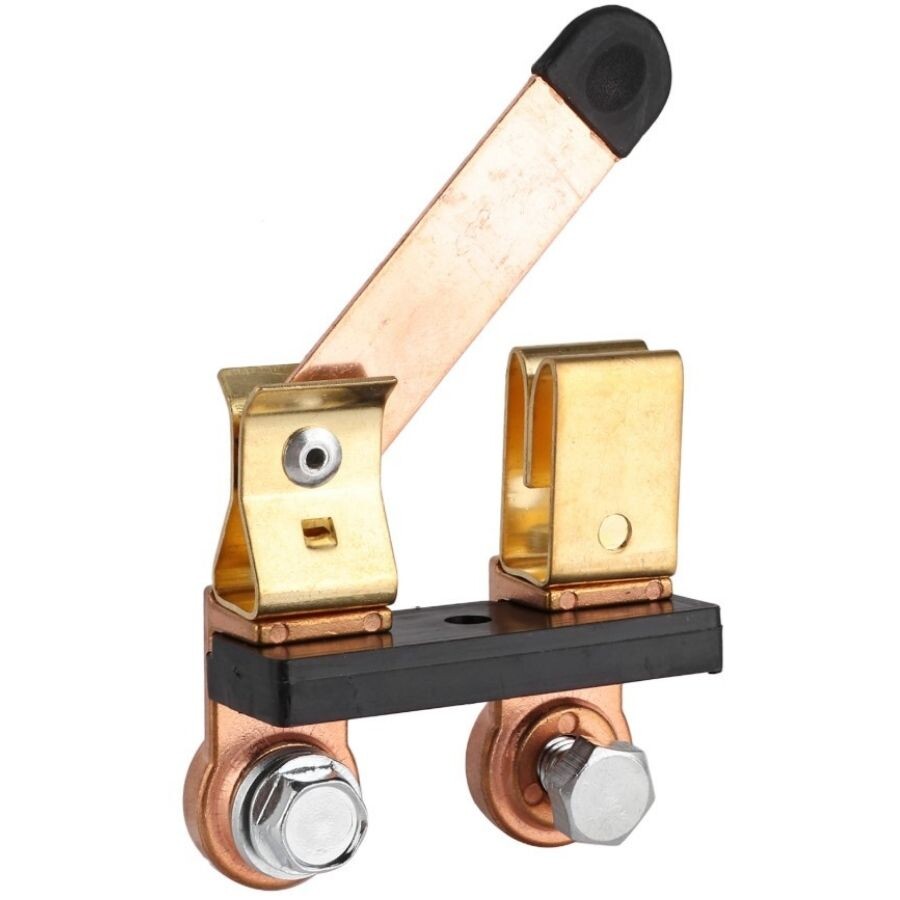

The ASW-A1001 250A Knife-Blade Type Battery Disconnect Switch is a practical battery isolation switch designed to manually connect and disconnect the link between the battery's negative terminal and the vehicle's electrical system. It is particularly suitable for use with side-post batteries and battery terminals featuring an M10 mounting hole.

The product is compatible with 12V and 24V DC systems. In 12V systems, it has a continuous current rating of 250A and an intermittent current rating of 750A.

This allows it to be used to disconnect the main power in battery systems for automobiles, boats, trucks, RVs, ATVs, and various electrical equipment.

Applications

• Automotive battery systems
• GM-style side-post batteries
• Boat and yacht electrical systems
• Trucks and commercial vehicles
• RVs and motorhomes
• ATVs and off-road vehicles
• Electrical equipment
• 12V and 24V DC battery systems
• Disconnecting the battery when the vehicle is not in use for extended periods
• Reducing battery drain caused by standby current
• Isolating the electrical system during maintenance and repair
• Quickly connecting/disconnecting the negative battery line

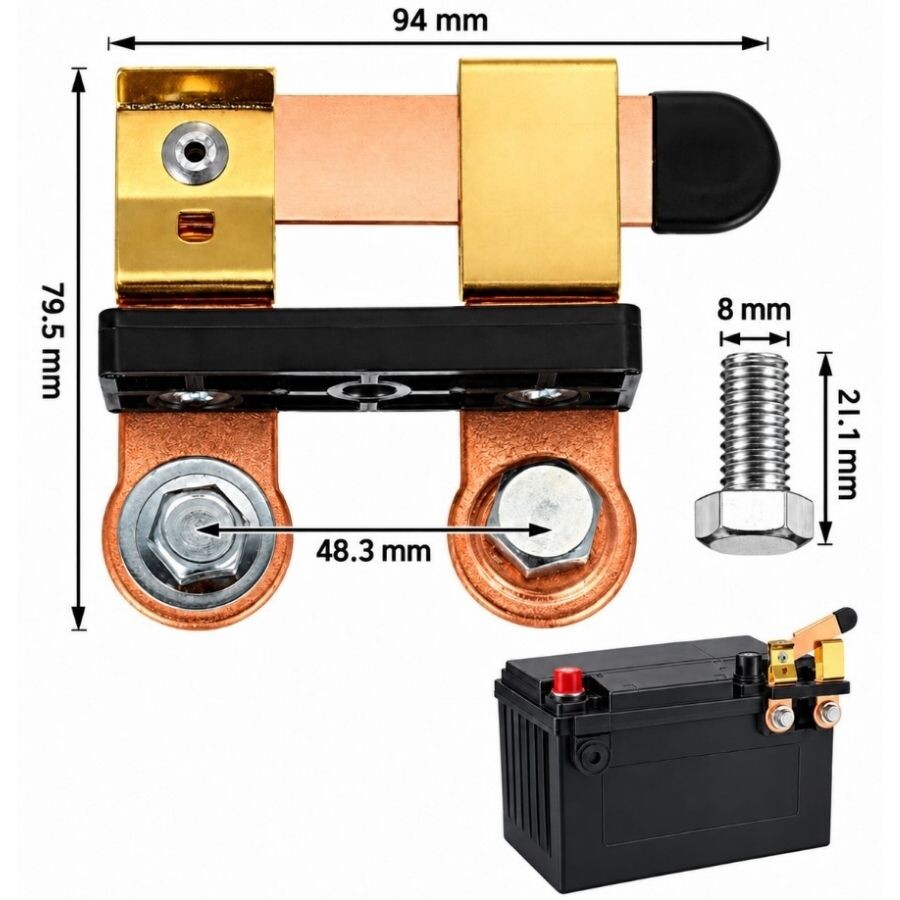

Specifications

• Operation Function: ON – OFF
• Operating Voltage: 12-24V DC
• Continuous Current Capacity: 250A @ 12V
• Instantaneous DC Current Capacity: 750A @ 12V DC
• Connection Pole: Negative
• Terminal Type: Side-post
• Terminal / Hole Diameter: M10
• Compatible Cable Gauge: 4-6 AWG
• Switch Type: Knife-blade / lever-operated mechanical switch
• Number of Positions: 2
• Material: Brass and electrolytic-plated copper
• Mounting Location: Battery negative terminal
