ASW-A805 200A ON-OFF Battery Disconnect Switch

ASW-A805 200A ON-OFF Battery Disconnect Switch

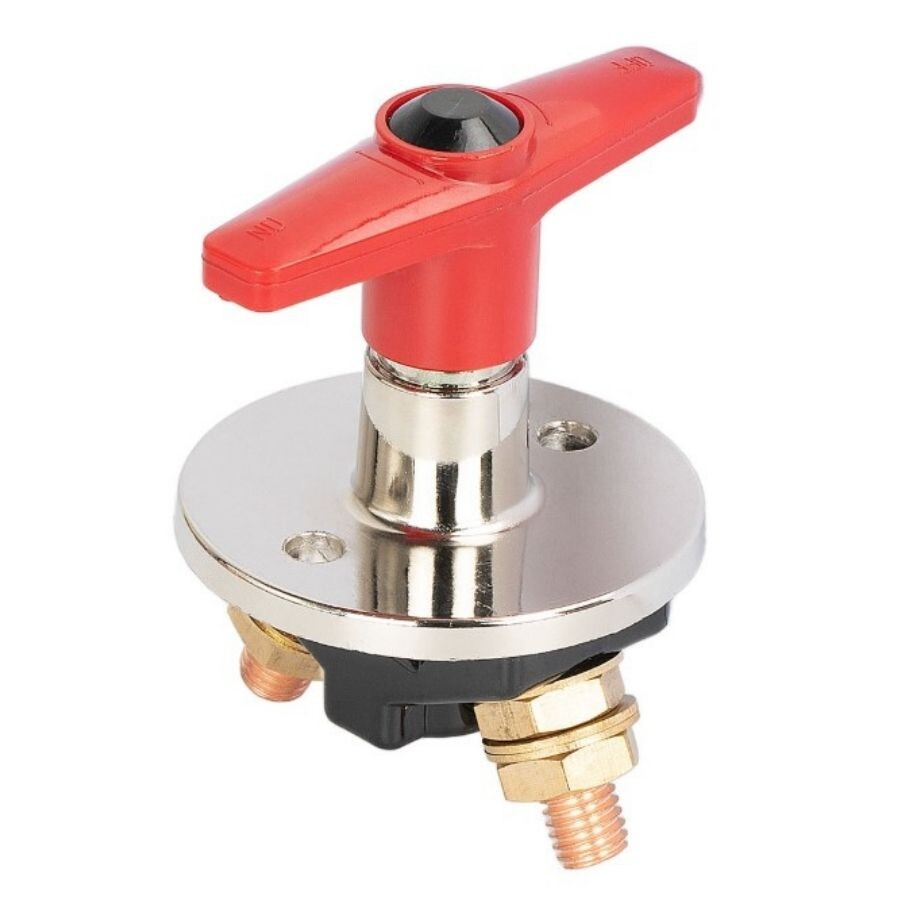

The ASW-A805 200A ON-OFF Battery Disconnect Switch is a heavy-duty master power cutoff switch designed to manually connect and disconnect the main power link between the battery and the electrical system. Compatible with 12V and 24V DC systems, it is suitable for controlling high-current power lines in automotive, marine, and industrial applications.

The switch features a continuous current rating of 200A and a cranking current rating of 1000A. Thanks to its high current capacity, it can be used in high-power applications such as vehicle main battery lines and starter systems.

The internal copper conductors are designed to ensure reliable current transmission under high electrical loads.

Applications

• Automotive battery systems
• Boat and yacht electrical systems
• Caravans and motorhomes
• Trucks and commercial vehicles
• Racing, off-road, and all-terrain vehicles
• Agricultural machinery
• Construction machinery
• Industrial machinery and equipment
• Switching the main battery power line on and off
• Disconnecting the battery from the system when the vehicle or equipment is not in use
• Isolating the electrical system during maintenance and repair
• Cutting off the main power line in emergencies
• 12V and 24V high-current DC power systems

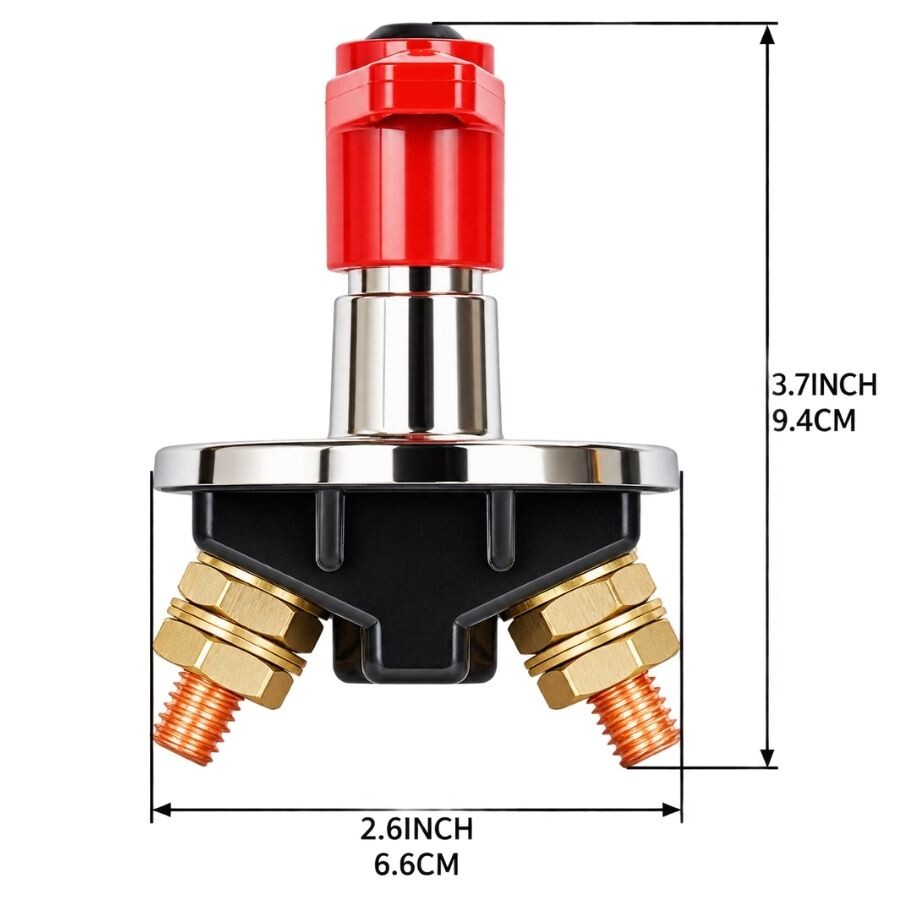

Specifications

• Operation Function: ON – OFF
• Number of Positions: 2
• Operating Voltage: 12-24V DC
• Continuous Current Capacity: 200A
• Cranking Current Capacity: 1000A
• Control Type: Rotary T-handle
• Handle Color: Red
• Number of Terminals: 2
• Terminal Material: Copper
• Internal Conductor Material: Copper
• Mounting Type: Panel / flange mount
• Flange Finish: Chrome-plated
