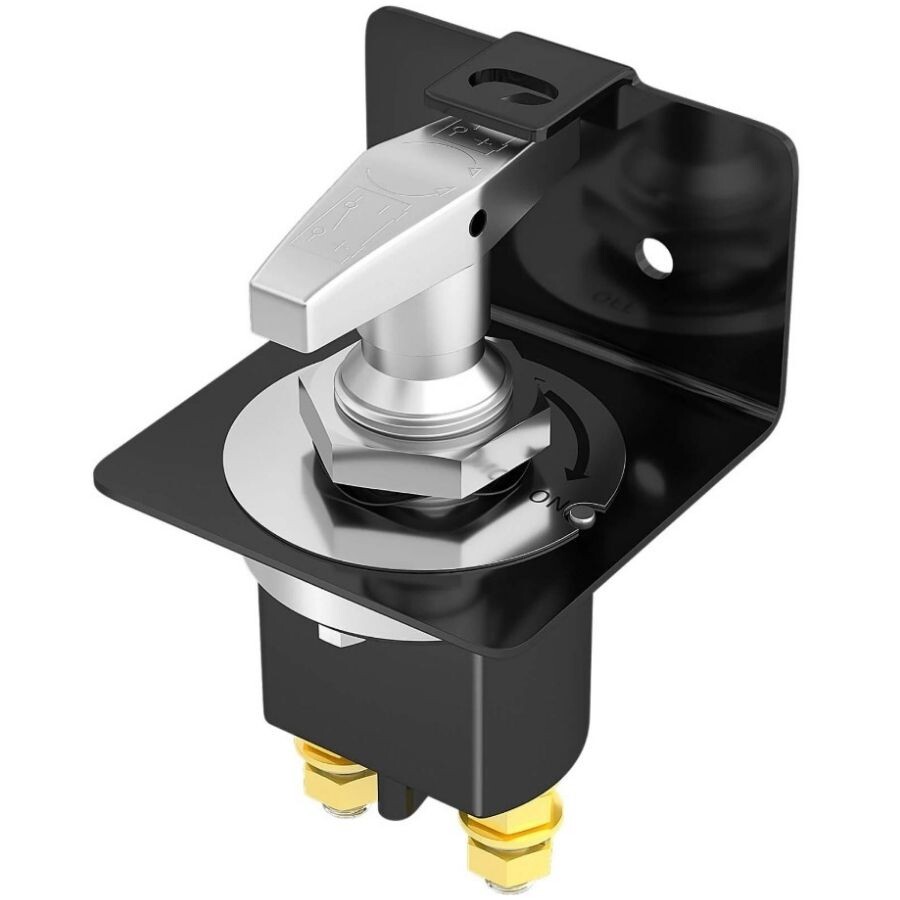

ASW-A808 500A ON-OFF Battery Disconnect Switch

ASW-A808 500A ON-OFF Battery Disconnect Switch

The ASW-A808 500A ON-OFF Battery Disconnect Switch is a heavy-duty power cutoff switch designed to manually connect and disconnect the main power between the battery and the electrical system. Engineered for use in 12V DC systems, it enables control of the main battery connection in vehicles such as cars, boats, and RVs, as well as in other high-current electrical systems.

The switch features a rated current of 500A and an instantaneous current capacity of 5000A. Thanks to this high current-carrying capacity, it is suitable for use in starter systems, main battery lines, and high-power DC applications.

Completely disconnecting the battery from the electrical system helps reduce unnecessary energy consumption when the vehicle or equipment is not in use and ensures safe system isolation during maintenance.

Applications

• Automotive battery systems
• Boat and yacht electrical systems
• Caravans and motorhomes
• Trucks and commercial vehicles
• Off-road and all-terrain vehicles
• Racing vehicles
• Construction machinery
• Agricultural machinery
• High-current 12V DC power systems
• Manual disconnection of the main battery line
• Electrical system isolation during maintenance and repair
• Battery disconnection during prolonged vehicle inactivity
• Emergency main power disconnection
• Lockable main power cutoff for high-vibration environments

Specifications

• Operation Function: ON – OFF
• Operating Voltage: 12V DC
• Rated Current: 500A
• Peak Current Capacity: 5000A
• Terminal Size: M10 / 3/8"
• Terminal Polarity: Negative
• Housing Material: Metal
• Conductor Material: Copper
• Control Type: Rotary switch
• Locking Plate: Included
• Mounting Type: Panel mount
