ASW-A802 200A ON-OFF Battery Disconnect Switch

ASW-A802 200A ON-OFF Battery Disconnect Switch

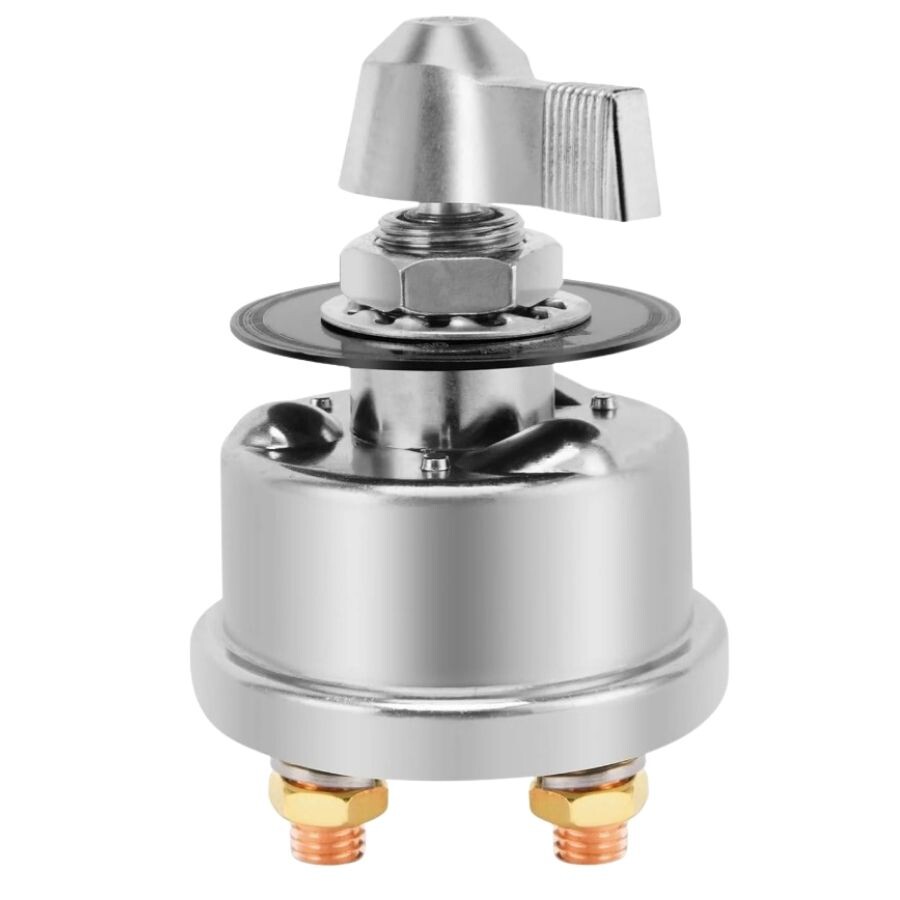

The ASW-A802 200A ON-OFF Battery Disconnect Switch is a high-current, heavy-duty power cutoff switch designed to manually connect and disconnect the main power between the battery and the electrical system. Compatible with systems ranging from 12V to 48V DC, it can be used to control the main battery connection in automobiles, boats, RVs, trucks, and various industrial DC power systems.

The switch features a continuous current rating of 200A and an intermittent current rating of 1000A. Thanks to this high current capacity, it provides a reliable mechanical power cutoff solution for vehicle main power lines, as well as starter and battery systems.

Thanks to its ON-OFF operating mechanism, the battery connection can be quickly disconnected when needed.

Applications

• Automotive battery systems
• Boat and yacht electrical systems
• Caravans and motorhomes
• Trucks and commercial vehicles
• Off-road and all-terrain vehicles
• Agricultural machinery
• Construction machinery
• Industrial DC power systems
• Switching the main battery power line on and off
• Isolating the battery from the system when the vehicle is not in use
• Reducing unnecessary standby power drain on the battery
• Electrical system maintenance and repair
• Cutting off the main power line in emergencies
• 12V, 24V, 36V, and 48V DC battery systems

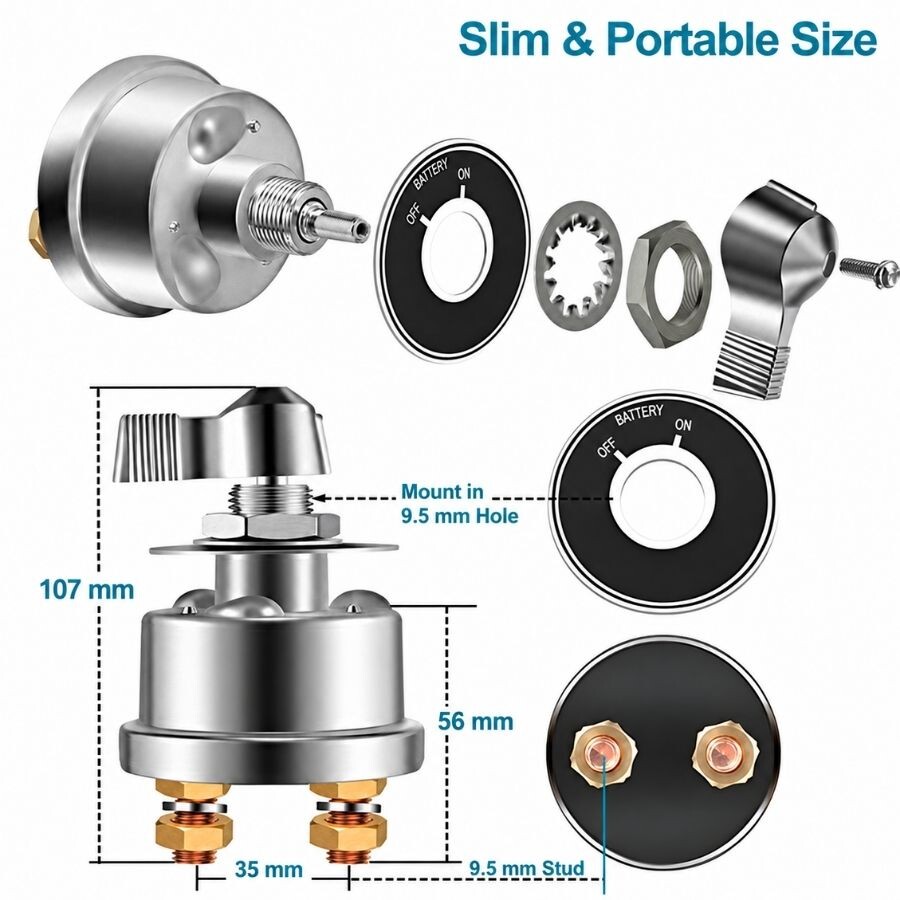

Specifications

• Operation Function: ON – OFF
• Number of Positions: 2
• Operating Voltage: 12-48V
• DC Continuous Current Capacity: 200A
• Short-term Current Capacity: 1000A
• Number of Terminals: 2
• Terminal Size: M10 / 3/8"
• Terminal Material: Copper
• Housing Material: Cast aluminum alloy
• Control Lever Material: Metal
• Control Type: Rotary lever
• Mounting Type: Panel mount
