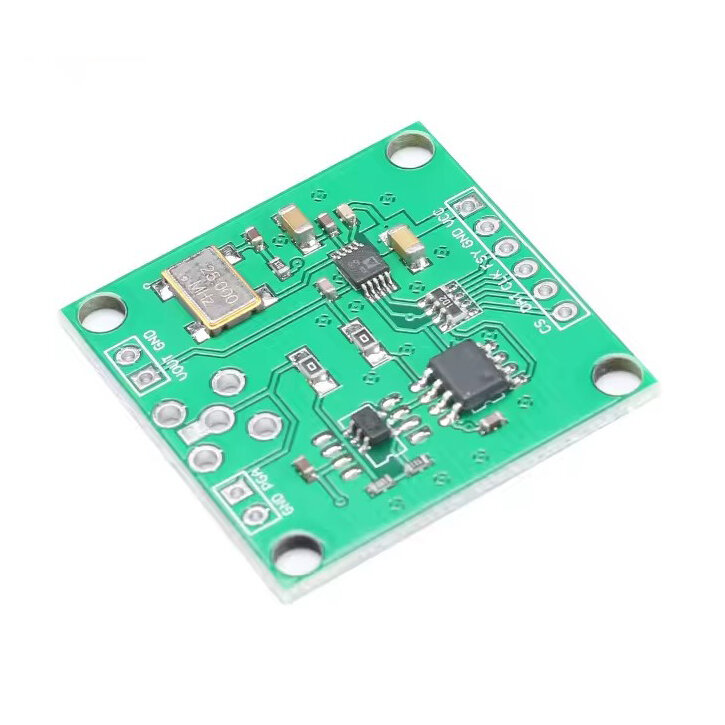

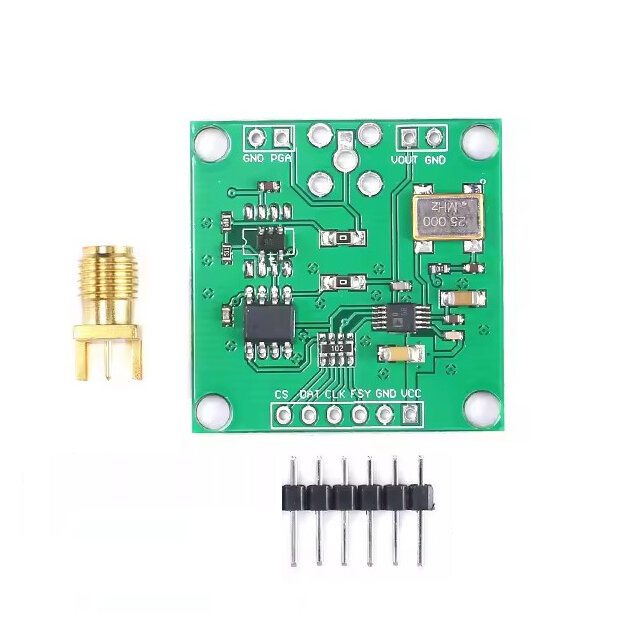

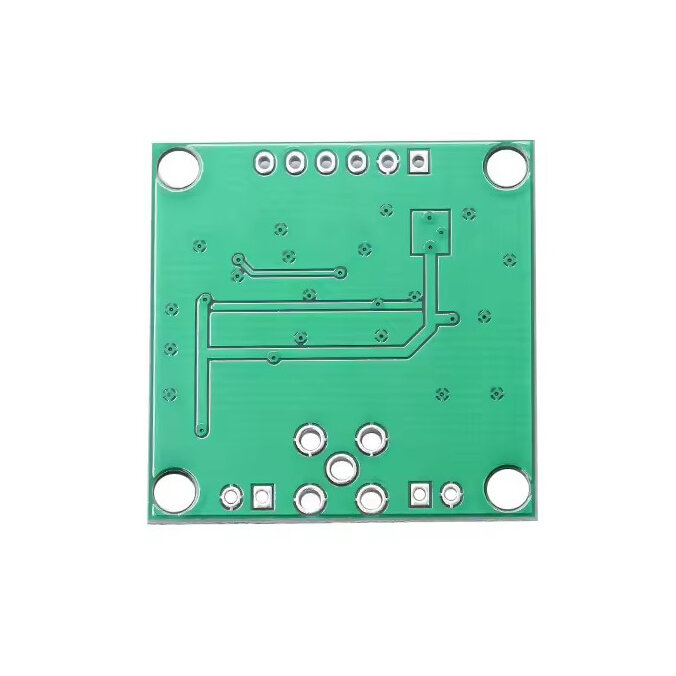

AD9833 DDS 0-12.5 MHz Signal Generator Module
The AD9833 DDS 0-12.5 MHz Signal Generator Module is a programmable waveform generator capable of generating 0-12.5 MHz sine, triangle, and square wave signals. Waveform generators are widely used in various measurement, excitation, and time domain applications. The output frequency and phase are programmable and easily adjustable via software. A 25 MHz clock is used, with a precision of 0.1 Hz. The clock frequency is 1 MHz, and the precision can reach 0.004 Hz. Three serial interfaces are used to write data.
Features
- Operating Voltage: 2.3V-5.5V.
- Power Consumption: 12.65 mW (at 3 V)
- Output Frequency Range: 0 MHz - 12.5 MHz
- 28-bit Resolution: 0.1 Hz (25 MHz reference clock frequency)
- Sine Wave / Triangle Wave / Square Wave Output
- 3-Wire SPI Interface
- Update Rate: 25 MSPS
- Maximum Output Voltage: 0.65 V
- Minimum Output Voltage: 38 mV
- Operating Temperature Range: -40 ~ +105℃
- Equipped with a 25 MHz (50 ppm accuracy) active crystal, step accuracy 0.1 Hz
- Dual-channel output signal, original output signal, 5 times magnified output signal
- 50 Ohm output impedance
- Dimensions: 32mm X 32mm
