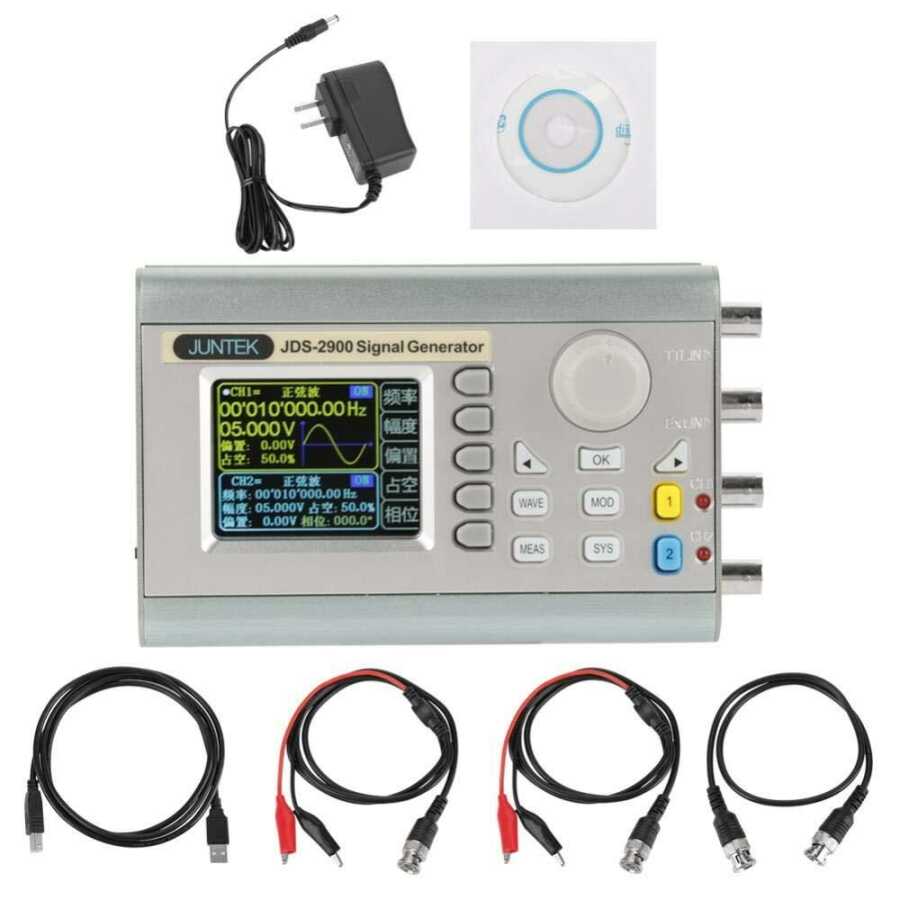

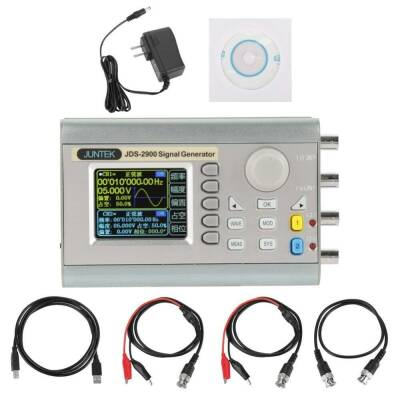

JDS2900 40MHz DDS Dual Channel Signal Generator
JDS2900 series function generator can generate multiple waveforms such as sine wave, square wave, triangle wave, pulse wave and random wave . With duty cycle setting, sweep frequency, frequency signal frequency and counter function, frequency range up to 60MHz and output signal, amplitude and frequency can be displayed simultaneously. The serial signal generator has excellent amplitude and frequency characteristics, the appearance of this device is elegant and beautiful. This instrument is widely used in factories, schools, research institutes and laboratories.
Technical Specifications
-
-
Sine wave frequency range: 0~40MHz
-
Square wave frequency range: 0-25MHz
-
Triangle wave frequency range: 0-25MHz
-
Pulse wave frequency range: 0~6MHz
-
TTL digital wave frequency range: 0~6MHz
-
Arbitrary frequency range: 0~6MHz
-
Pulse width adjustment range: 40nS~4000S
-
Square wave rise time: ≤10ns
-
Minimum frequency resolution: 0.01uHz（0.00000001Hz）
-
Frequency accuracy: ±20ppm
-
Frequency stability: ±1ppm/3hours
-
Wavelength: 2048 points
-
Waveform sampling rate: 266MSa/s
-
Waveform vertical resolution: 14 bit
