XR2206 1Hz-1MHz Signal Generator Module

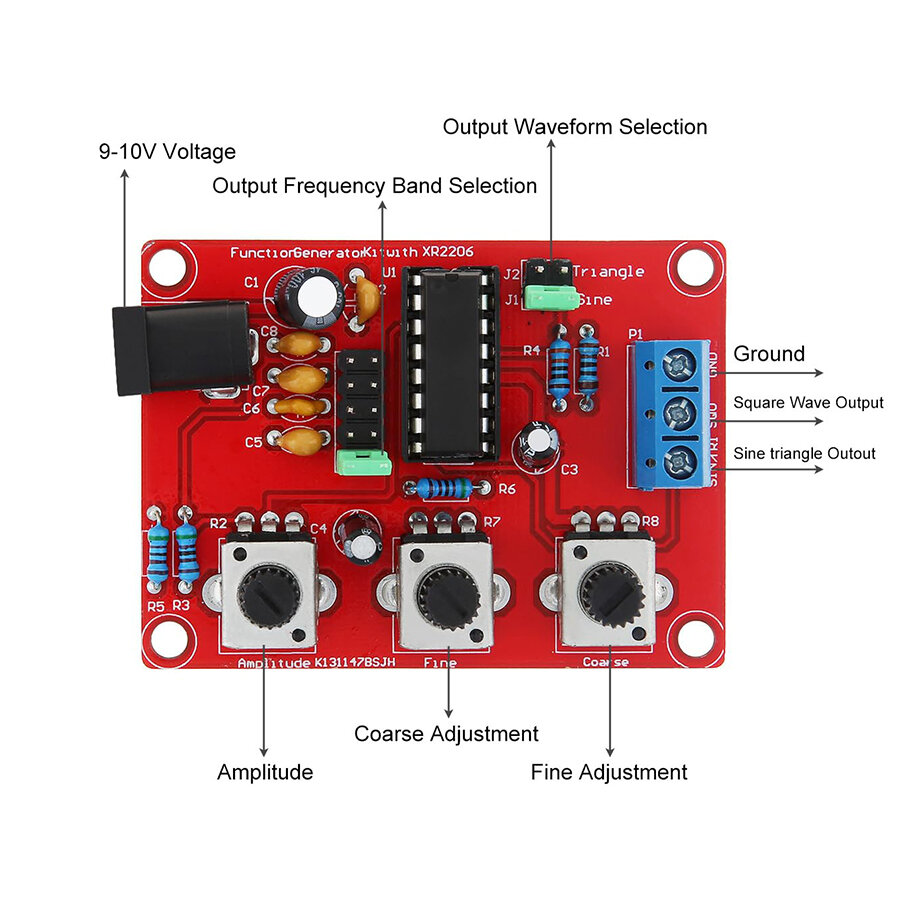

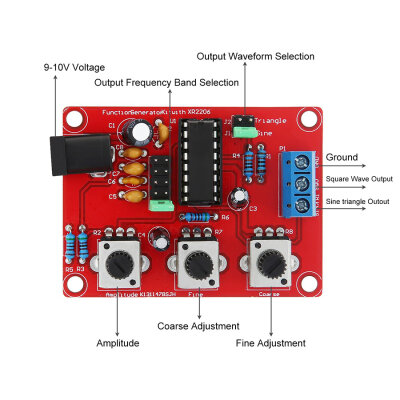

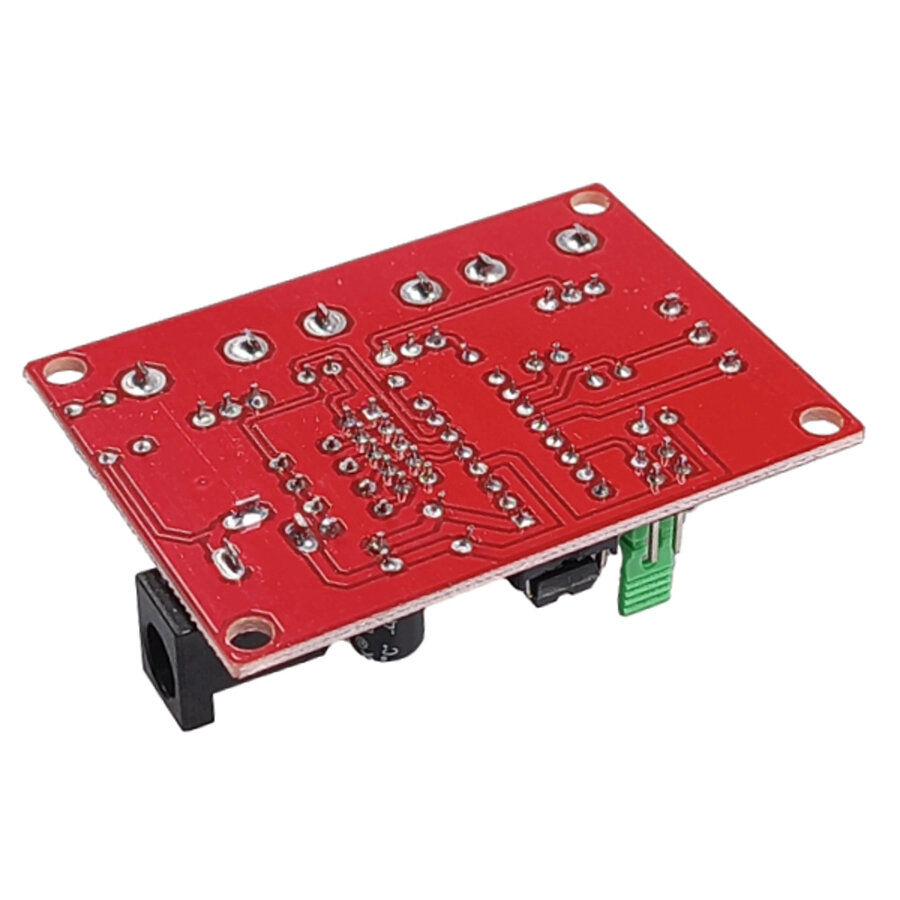

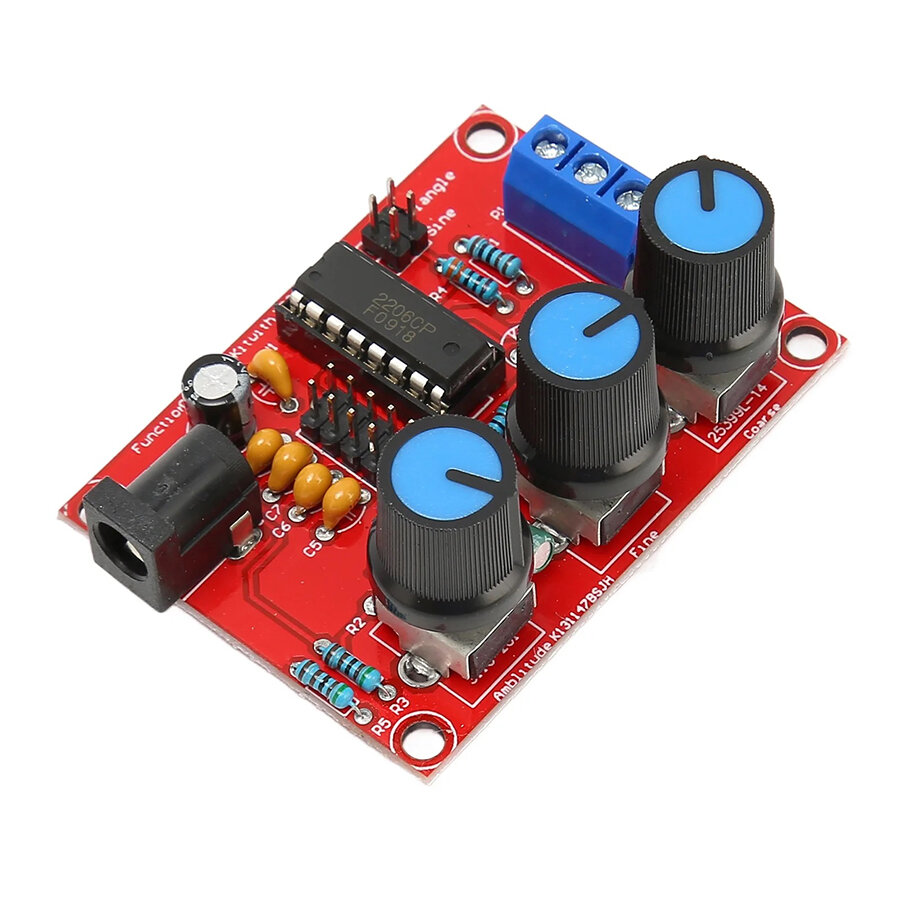

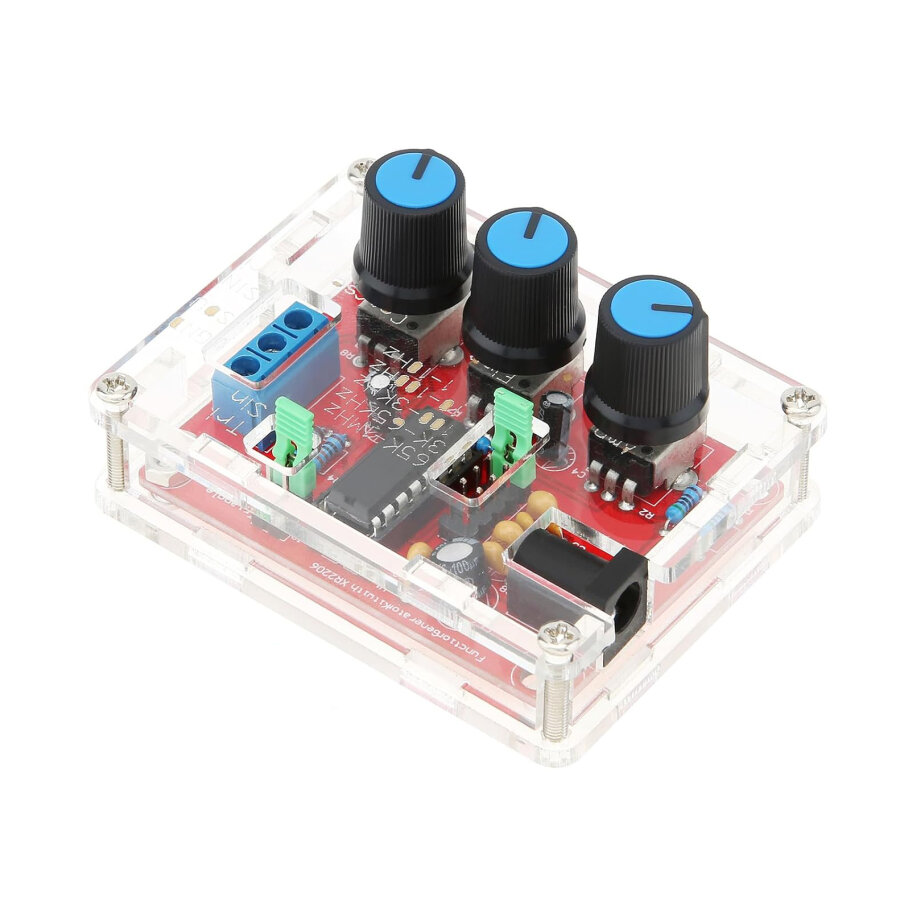

The XR2206 1Hz-1MHz Signal Generator Module generates sine, triangle, and square wave signals. It can generate adjustable signals in the 1Hz-1MHz frequency range. The signal amplitude is adjustable.
The device's supply voltage is between 9-12VDC.
Can be powered by a 9V battery.Specifications
- Integrated Circuit: XR2206
- Operating Voltage: DC 9V-12V
- Impedance: 600 Ohm + 10%
- Frequency Range: 1Hz - 1MHz
- Sine Wave
- Amplitude: 0 - 3V at 9V DC input
- Distortion: Less than 1% (at 1 kHz)
- Flatness: +0.05db 1Hz - 100kHz
- Square Wave
- Amplitude: 8V at 9V DC input (no load)
- Rise time: Less than 50ns (at 1 kHz)
- Fall time: Less than 30ns (at 1 kHz)
- Symmetry: Less than 5% (at 1 kHz)
- Triangle Wave
- Amplitude: 0 - 3V at 9V DC input
- Linearity: Less than 1% (up to 100 kHz) 10mA
- Dimensions: 61x45x23.5mm
