ZK-PP1K Dual-Mode Square Wave Signal Generator

ZK-PP1K Dual-Mode Square Wave Signal Generator

The ZK-PP1K Dual-Mode Square Wave Signal Generator is a device that provides electrical signals at various frequencies, square waves, pulses, and output levels. It supports two modes: PWM mode and PULSE mode. It is used as a signal source or excitation source for testing. It is widely used in manufacturing applications and technology.

Features

• Model: ZK-PP1K
• Operating voltage: DC 3.3V - 30V

• Frequency range: 1Hz~150KHz

• Frequency accuracy: 2%

• Duty cycle range: 0.00%-100%

• Output current: <30mA

• Pulse count: 1~9999 or Infinite

• Delay time: 0.000s~9999s

• Pulse width: 0.000s~9999s

• Time accuracy: 1ms

• Output amplitude: Same as input voltage

• Operating temperature: -20 to 85℃

• Operating humidity: 0% to 95% RH

• Dimensions: 79x43x26mm

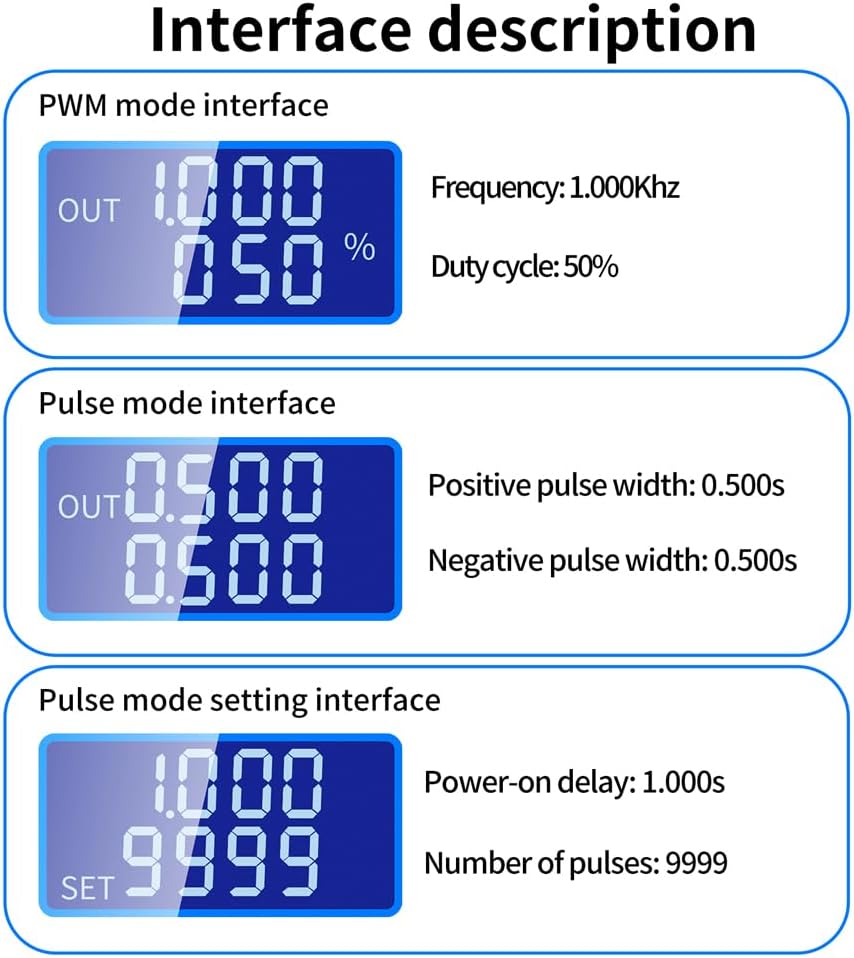

Interface

Modes

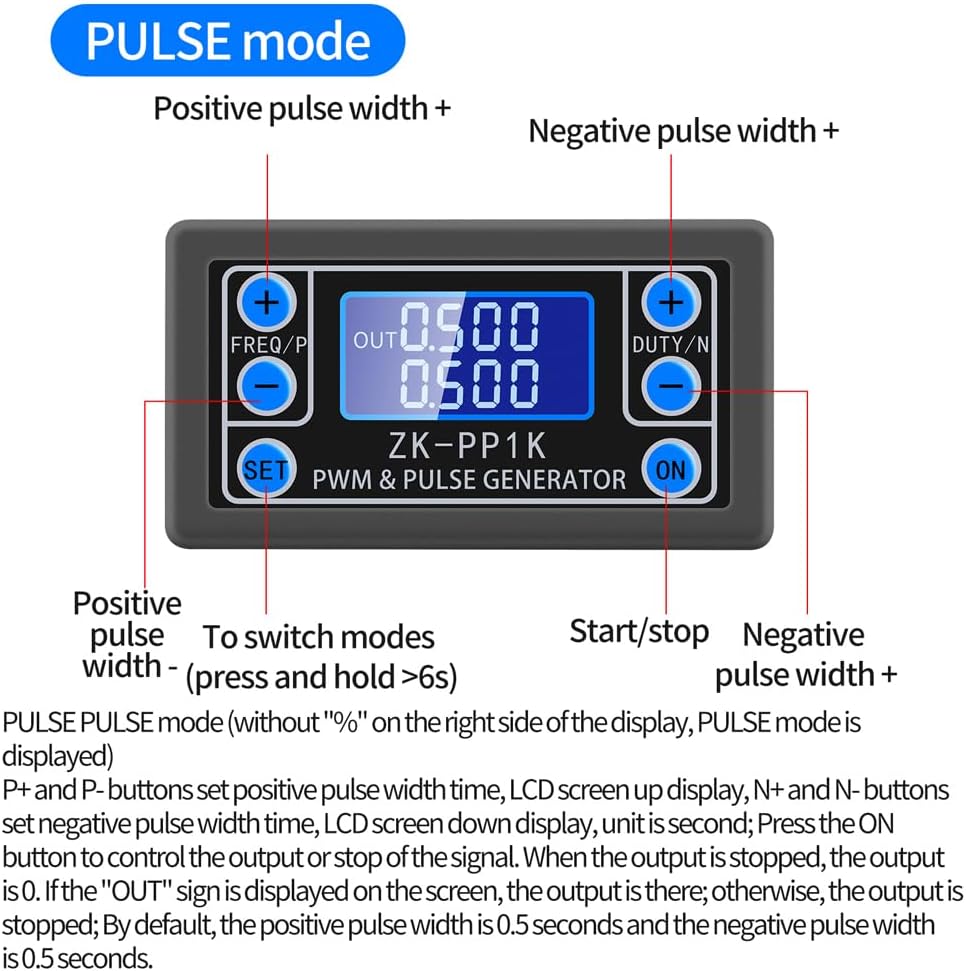

Pulse Mode

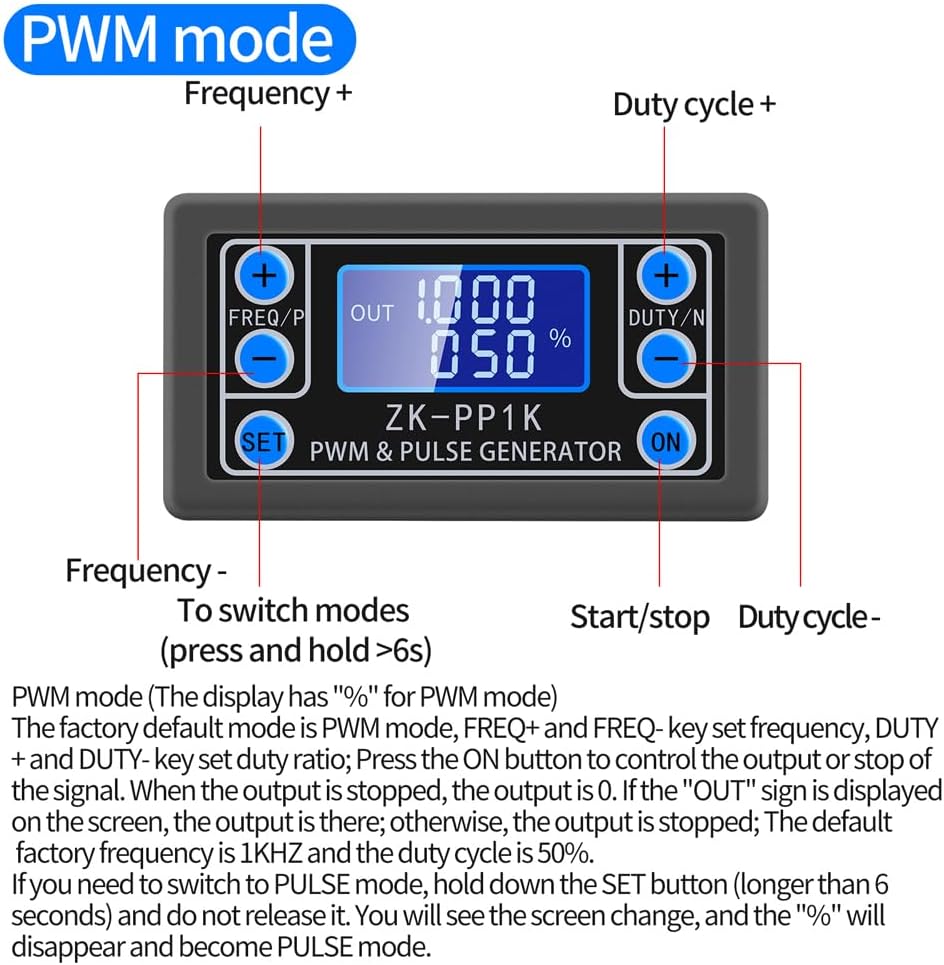

PWM Mode
