ASW-A01 100A ON-OFF Battery Disconnect Switch

ASW-A01 100A ON-OFF Battery Disconnect Switch

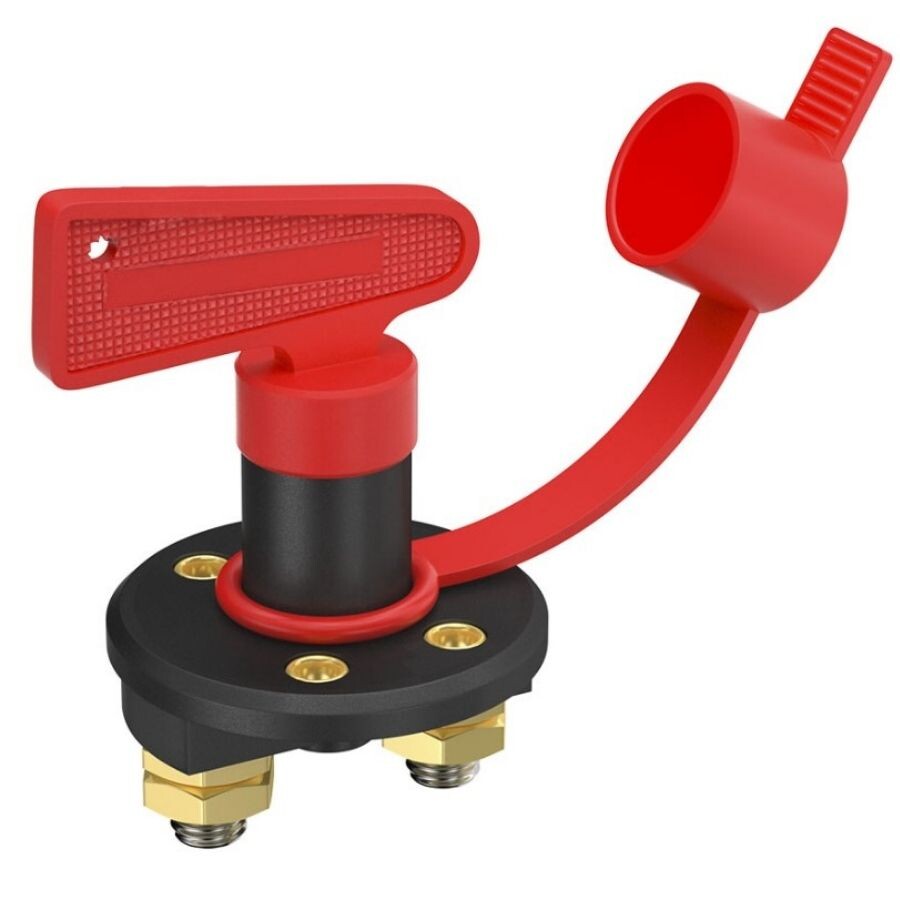

The ASW-A01 100A ON-OFF Battery Disconnect Switch is designed to quickly and safely connect or disconnect the main power supply between the battery and the vehicle or equipment's electrical system. Compatible with 12V and 24V DC systems, it is suitable for controlling the main battery connection in automotive and marine applications.

Featuring two operating positions (ON and OFF), the switch has a continuous current rating of 300A and an intermittent current rating of 750A for a duration of 5 minutes.

This allows it to be used as a main power disconnect switch in high-current DC electrical systems for automobiles, trucks, boats, RVs, and similar vehicles.

Applications

• Automotive battery systems
• Boat and yacht electrical systems
• RVs and motorhomes
• Trucks and commercial vehicles
• ATVs and off-road vehicles
• Trailer electrical systems
• Marine electrical applications
• Switching the main battery power line on and off
• Disconnecting the battery when the vehicle is not in use for extended periods
• Preventing unnecessary battery drain
• Electrical system maintenance and repair
• Restricting unauthorized use of the electrical system
• 12V and 24V high-current DC power systems

Specifications

• Switch Function: ON – OFF
• Number of Positions: 2
• Operating Voltage: 12-24V DC
• Rated Current: 300A
• Intermittent Current Capacity: 750A / 5 minutes
• Number of Terminals: 2
• Terminal Size: 3/8" (M10)
• Terminal Material: Copper
• Terminal Nuts: Stainless steel
• Protective Cover: Included
• Cover Feature: Water and dust protection for the switch mechanism

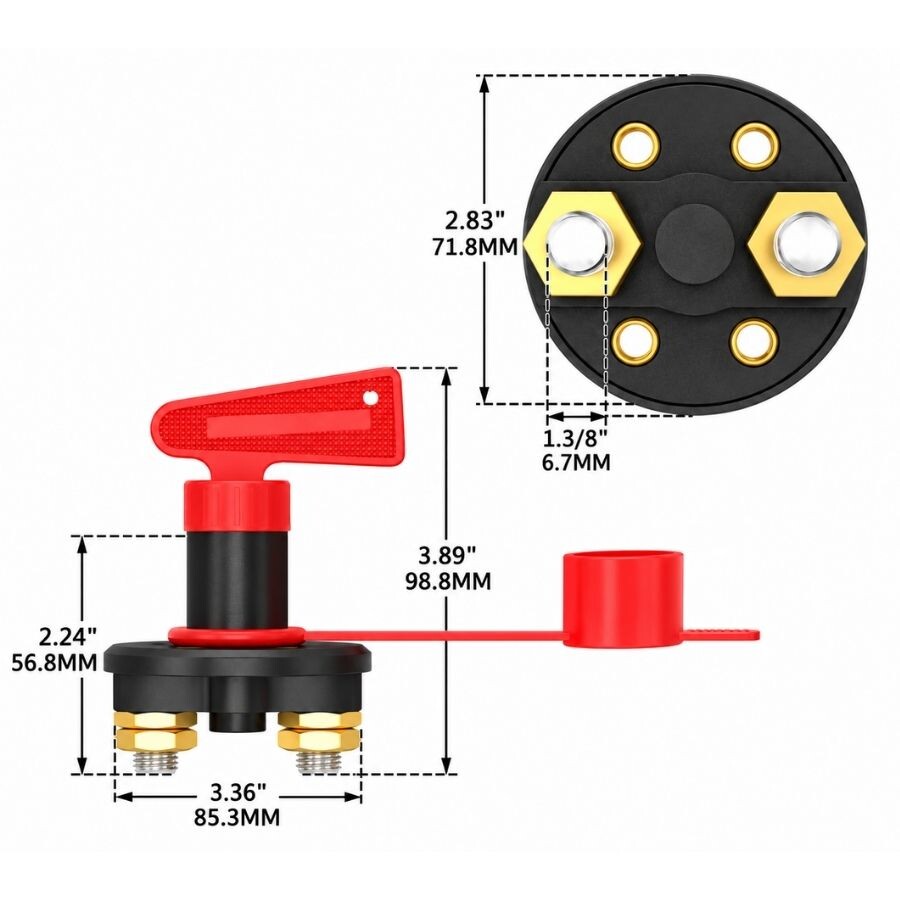

• Mounting Hole Details: 4 × 40 mm
