ASW-A1201 275A 2-Position ON-OFF Battery Switch

ASW-A1201 275A 2-Position ON-OFF Battery Switch

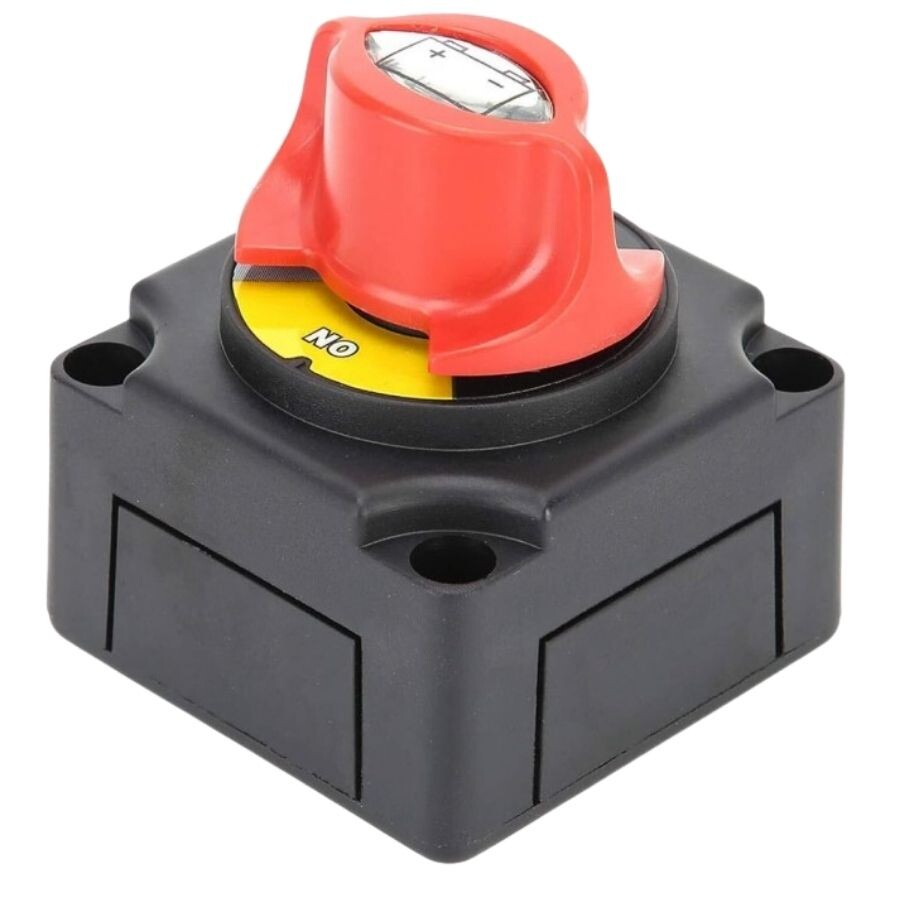

The ASW-A1201 275A 2-Position ON-OFF Battery Switch is a high-current capacity switch designed to safely and conveniently connect or disconnect the main power between the battery and the electrical system. It is suitable for use as a main power isolator in boats, RVs, automobiles, trucks, and high-capacity DC battery systems.

Compatible with electrical systems ranging from 12V to 48V DC, the switch features a continuous current rating of 275A, an intermittent current rating of 455A, and a cranking current rating of 1250A. Thanks to these specifications, it ensures reliable power control for battery and vehicle electrical systems requiring high current.

Specifications

• Switch Function: ON – OFF
• Number of Positions: 2
• Operating Voltage: 12V – 48V
• DC Continuous Current Rating: 275A
• DC Intermittent Current Rating: 455A DC / 5 minutes
• Cranking Current Rating: 1250A DC / 10 seconds
• Number of Terminals: 2

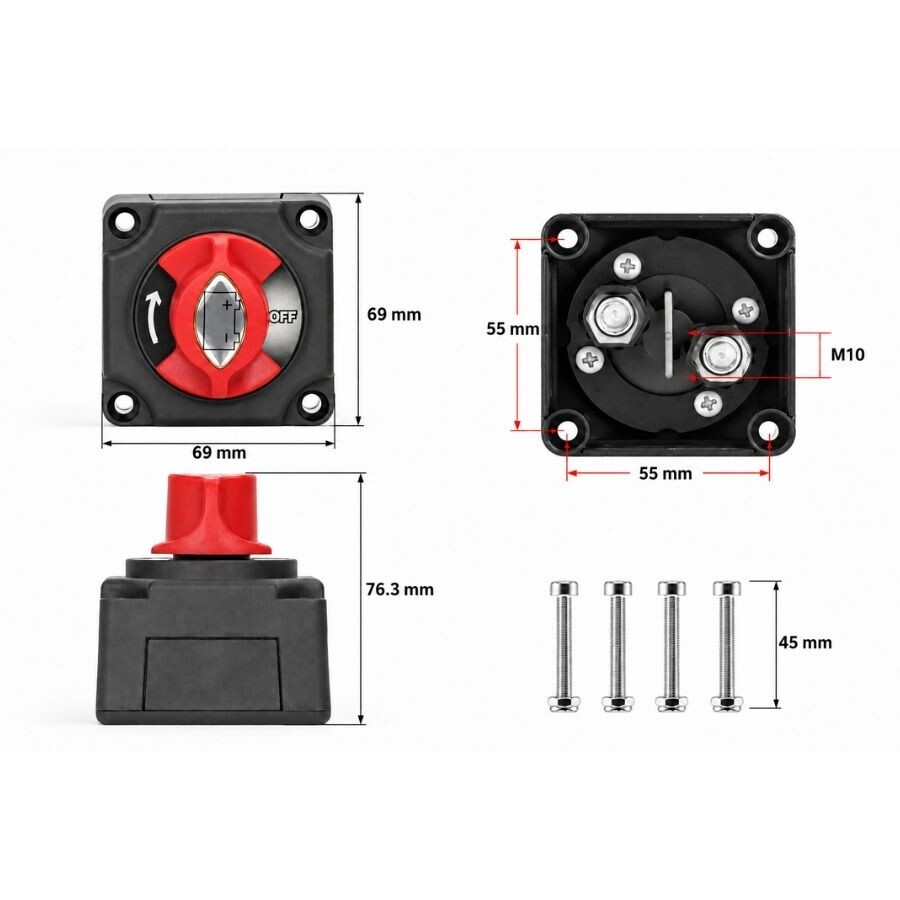

• Terminal Size: M10
• Terminal Material: Tin-plated copper
• Housing Material: ABS plastic
