ASW-A6004 300A 2-Position ON-OFF Battery Switch

ASW-A6004 300A 2-Position ON-OFF Battery Switch

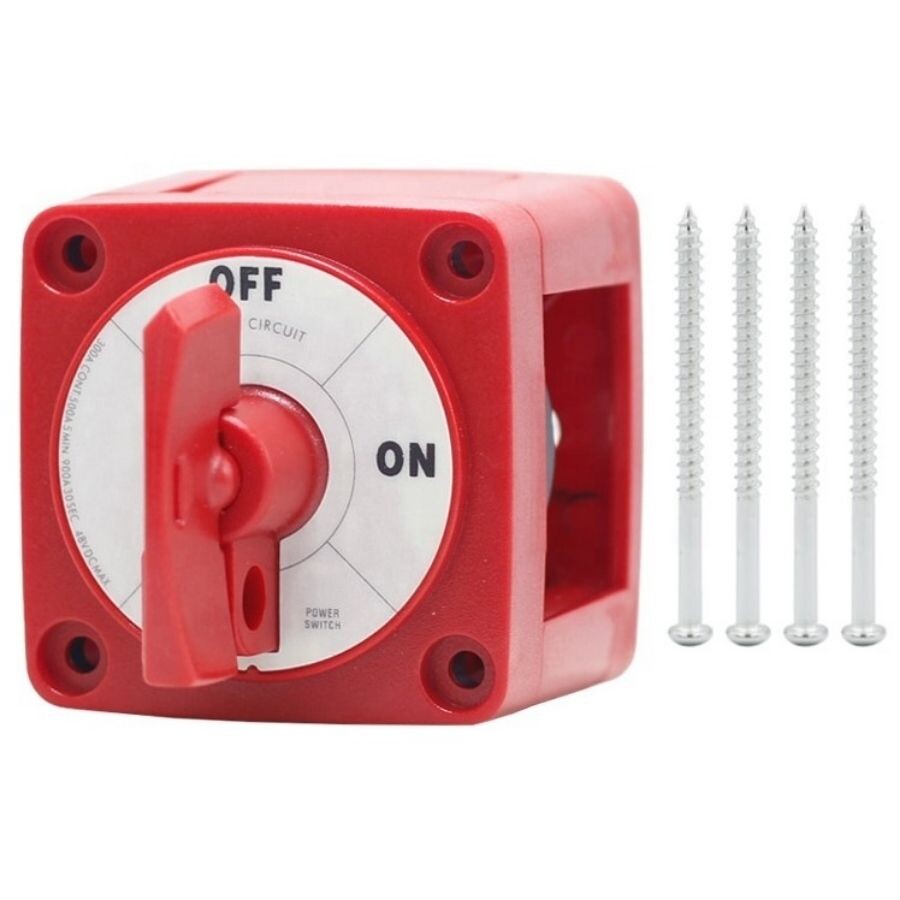

The ASW-A6004 300A 2-Position ON-OFF Battery Switch is a high-current, single-circuit master switch designed to safely and easily connect or disconnect power between the battery and the electrical system. Its rotary ON-OFF mechanism allows for the quick disconnection or reconnection of the battery to the electrical system.

Suitable for use with 12-48V DC systems, the product features a capacity of 300A continuous current, 500A intermittent current, and 900A cranking current (for 30 seconds).

Thanks to its high current capacity, it is suitable for use as a main power disconnect switch, particularly in battery systems for boats, caravans, trucks, and various other vehicles.

Applications

• Boat and yacht electrical systems
• Outboard-powered boats
• Small gasoline and diesel engine systems
• Caravan and motorhome battery systems
• Automotive electrical systems
• Trucks and commercial vehicles
• Off-road and all-terrain vehicles
• Construction machinery and electrical equipment
• Switching the main battery power line on and off
• Disconnecting the battery from the electrical system when the vehicle is not in use
• Isolating the electrical system during maintenance
• 12V, 24V, 36V, and 48V DC battery systems
• High-current DC power distribution applications

Specifications

• Switch Function: ON – OFF
• Operating Voltage: 12-48V DC
• Maximum Voltage: 48V DC
• Continuous Current Rating: 300A
• Intermittent Current Rating: 500A
• Cranking Current Rating: 900A / 30 seconds

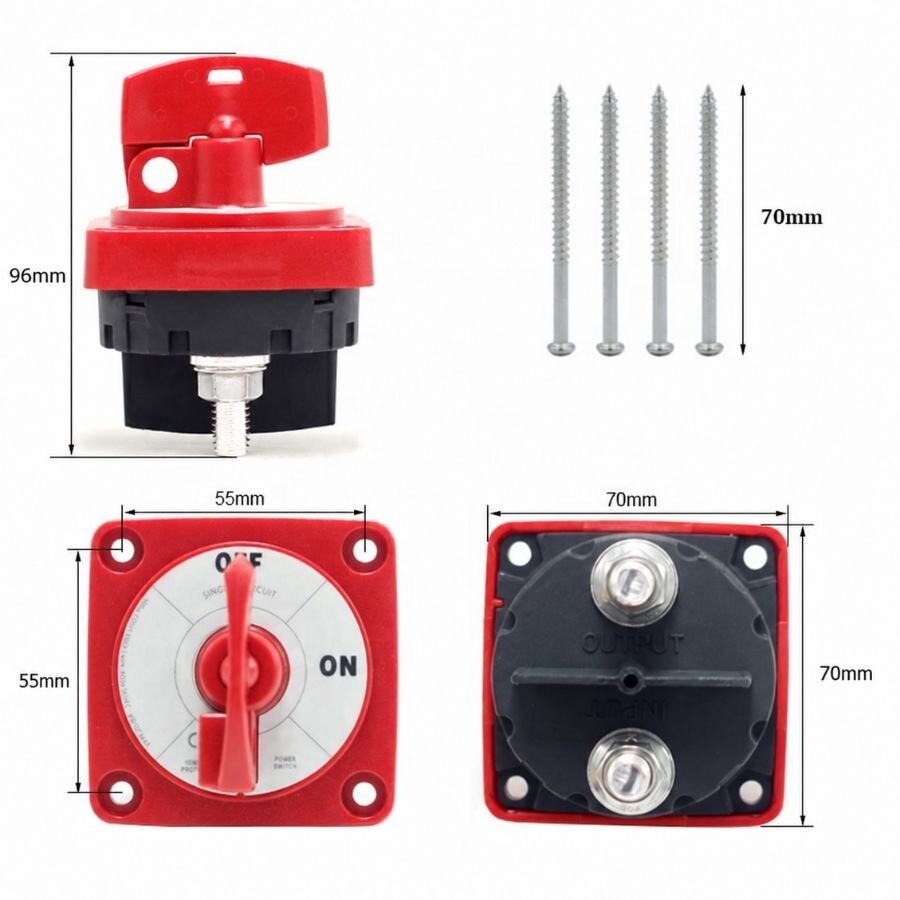

• Terminal Size: 3/8" (M10)
• Terminal Material: Tin-plated copper
• Terminal Tightening Torque: 13.56 Nm (120 in-lb)
