ASW-A701S-B 300A 4-Position OFF-1-BOTH-2 Battery Switch

ASW-A701S-B 300A 4-Position OFF-1-BOTH-2 Battery Switch

The ASW-A701S-B 300A 4-Position OFF-1-BOTH-2 Battery Switch is a high-current capacity battery selector switch that enables the controlled use of two separate batteries or battery banks within a single electrical system. Featuring four operating positions—OFF, 1, BOTH, and 2—the product allows for the selection of Battery 1, Battery 2, or both batteries simultaneously; in the OFF position, the battery connection is completely isolated from the system.

It is specifically designed for use in dual-battery setups for vehicles, boats, caravans, and auxiliary power systems. It enables the engine starting battery and the auxiliary equipment battery to be used separately or together as needed.

The "BOTH" position, where both batteries are used together, connects the batteries to the system in parallel.

Applications

• Boat and yacht electrical systems
• Caravan and motorhome battery systems
• Dual-battery automotive applications
• Trucks and commercial vehicles
• Off-road and all-terrain vehicles
• Trailers and special-purpose vehicles
• Separate control of engine starting and auxiliary batteries
• Parallel use of two batteries when required
• Auxiliary equipment battery systems
• Marine power distribution systems (6V, 12V, 24V, and 32V DC)
• Disconnecting batteries from the electrical system when the vehicle is not in use

Specifications

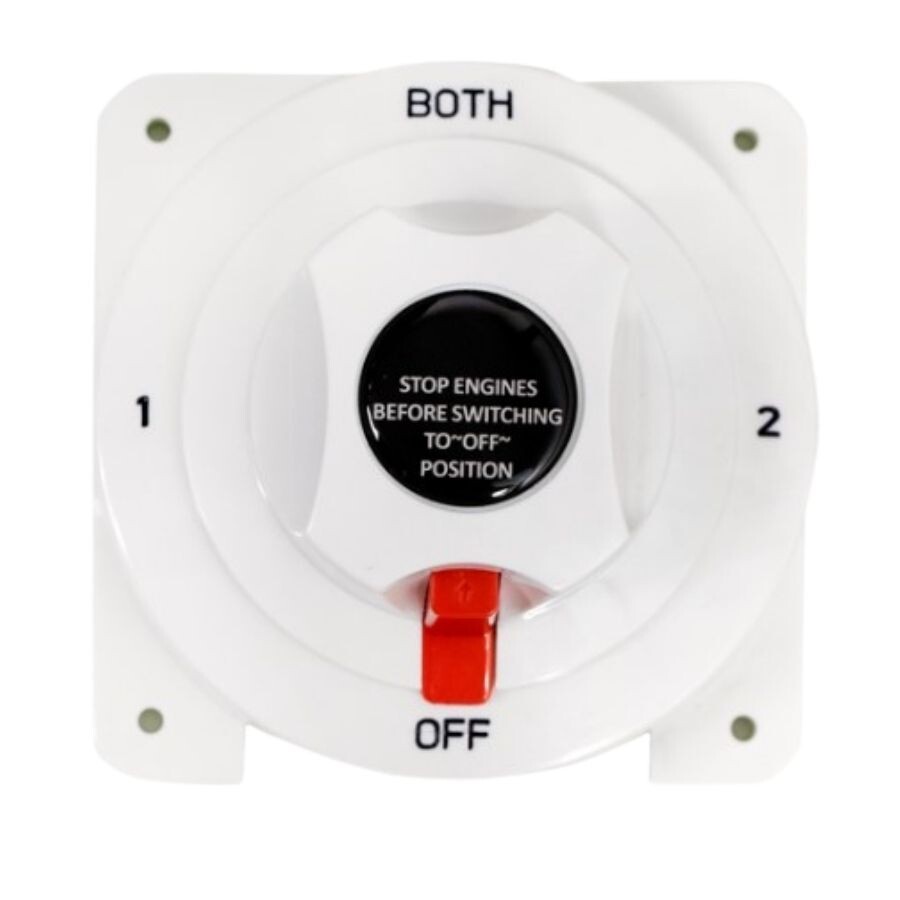

• Operating Positions: OFF – 1 – BOTH – 2
• Number of Positions: 4
• Operating Voltage: 6V / 12V / 24V / 32V
• DC Continuous Current Rating: 175A
• Maximum / Intermittent Current Rating: 300A
• Battery Selection: Battery 1 / Battery 2 / Both Batteries / Off

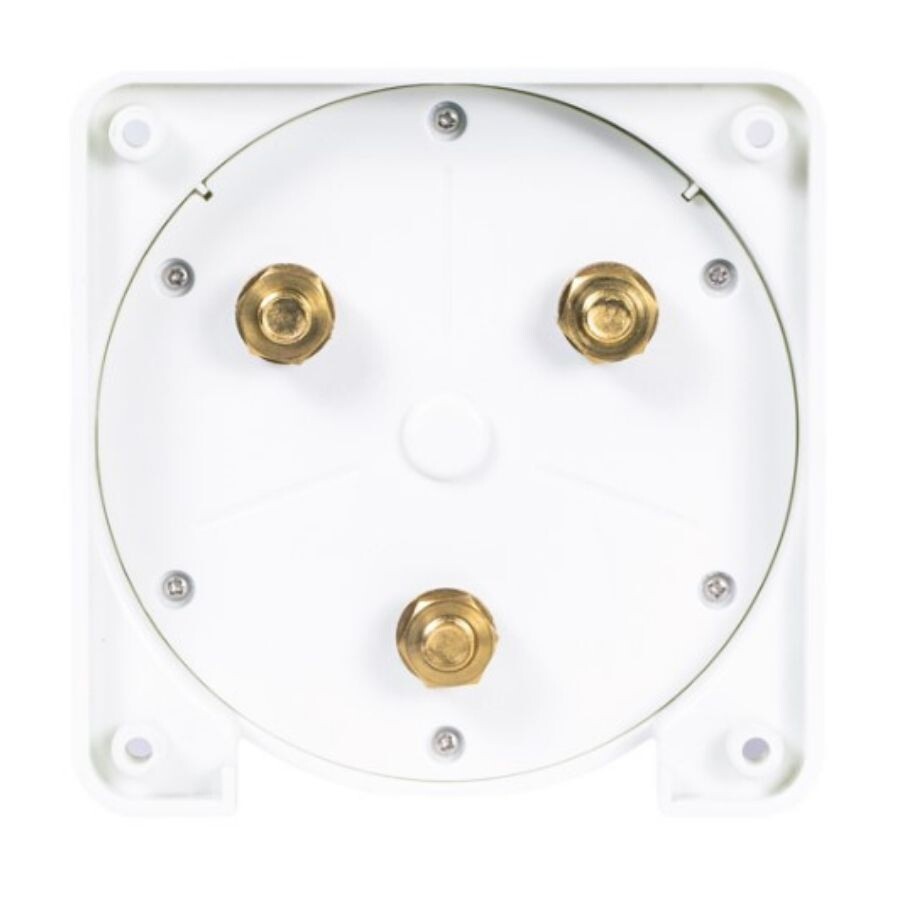

• Terminals: 3 × M5 (3/16")
• Terminal Material: Tin-plated brass
• Housing Material: ABS plastic

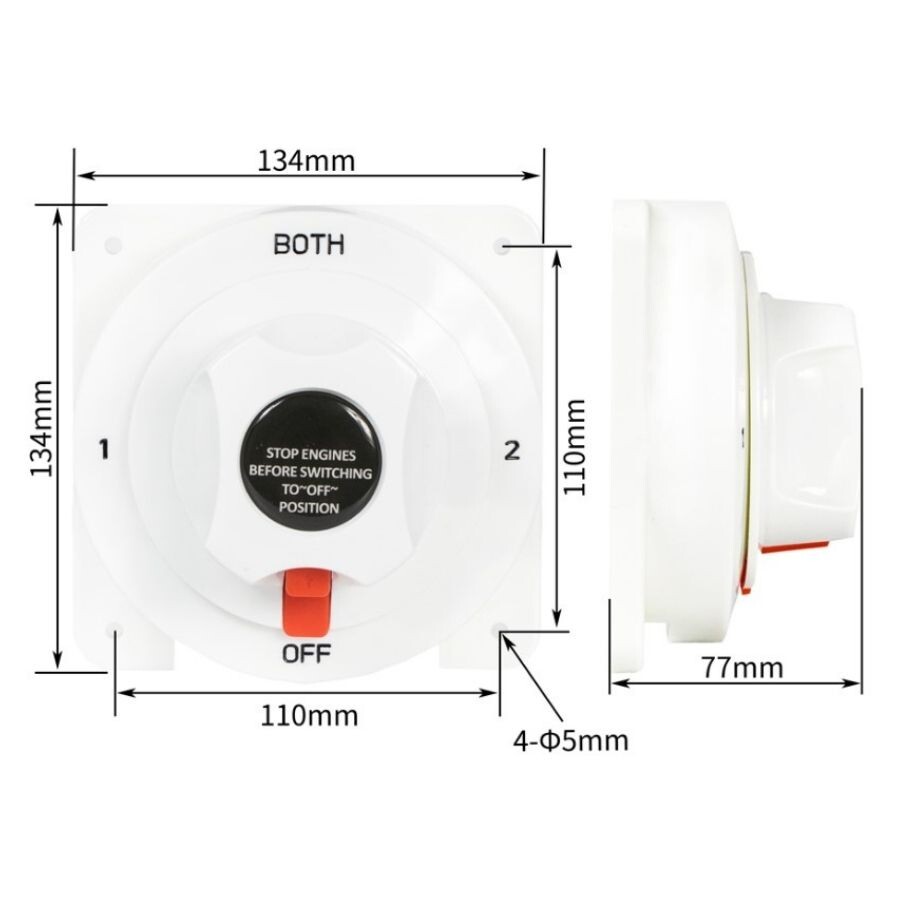

• Product Dimensions: 134 × 134 × 77 mm
