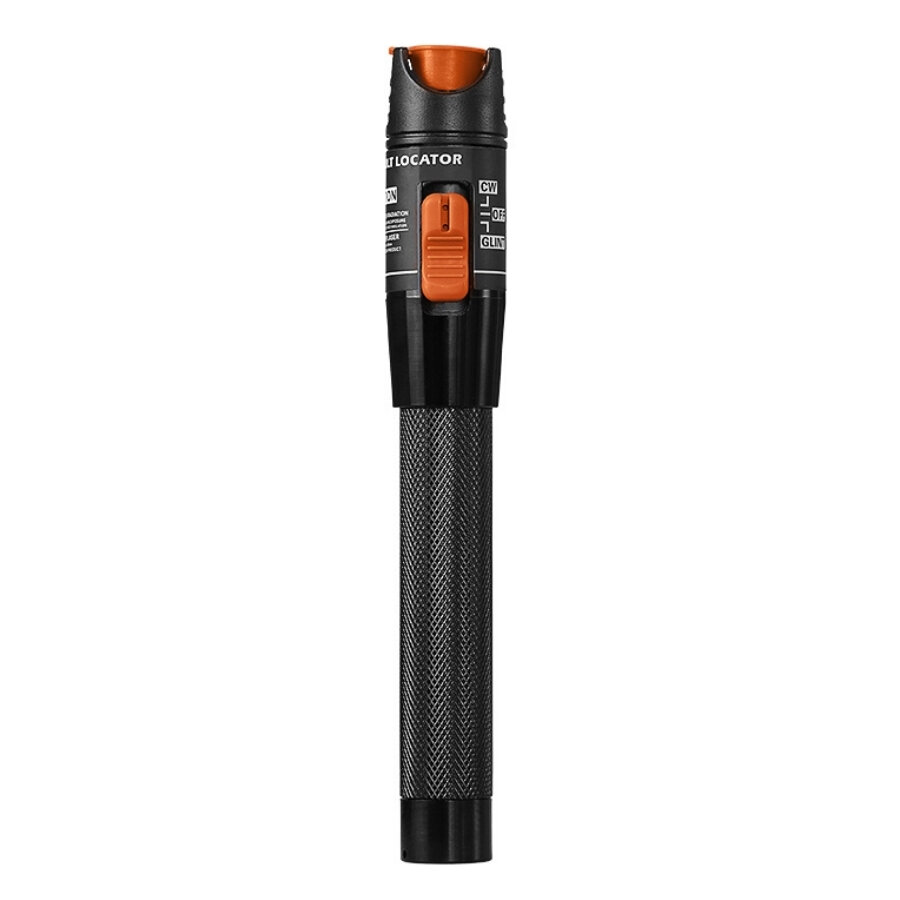

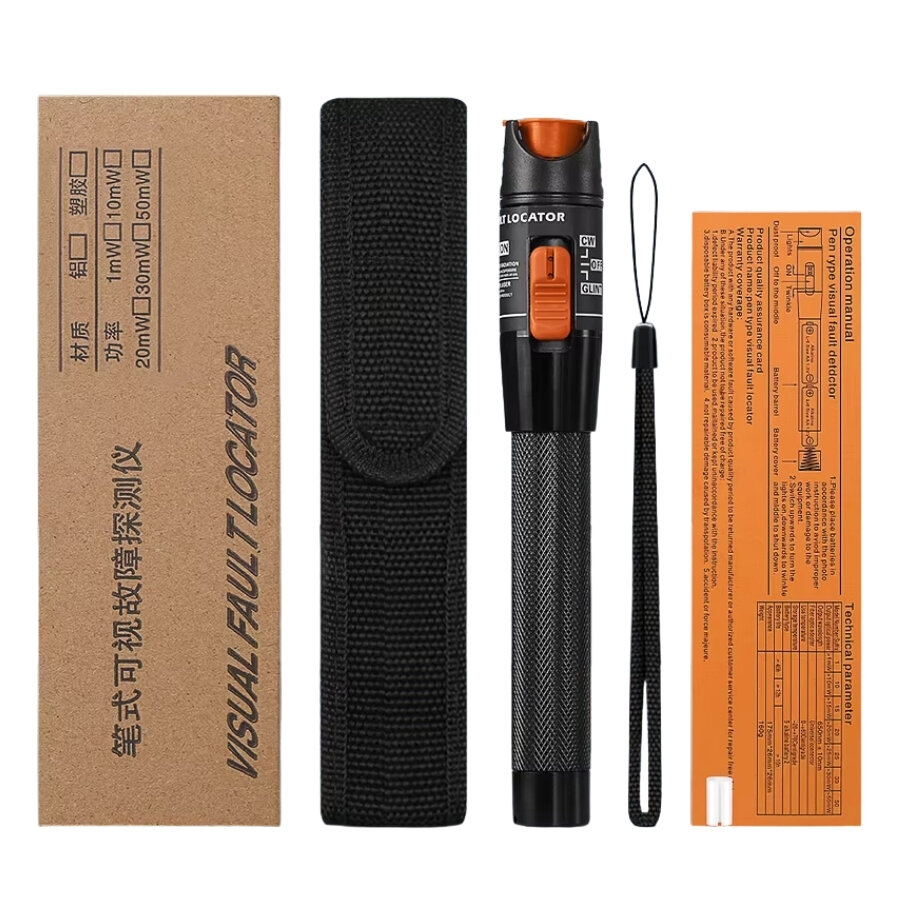

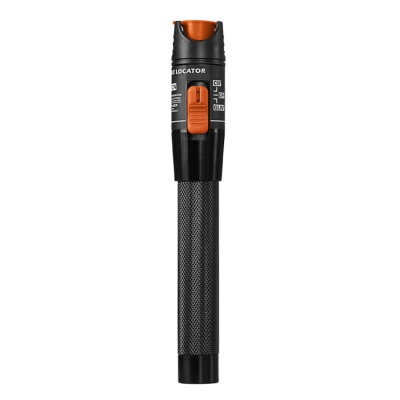

AUA-10 VFL 10mW Fiber Optic Visual Fault Locator Laser Pen

AUA-10 VFL 10mW Fiber Optic Visual Fault Locator Laser Pen

The AUA-10 VFL 10mW Fiber Optic Visual Fault Locator Laser Pen is designed to quickly detect breaks, bends, and connection faults in fiber optic lines. It is one of the most practical and economical solutions for field teams. Thanks to its compact pen-type design, it is easy to carry and offers immediate use.

It sends light into the fiber with 650nm red laser technology, allowing problematic points on the line to be seen from the outside. Thus, fault detection can be done in seconds.

Note: Laser is harmful to eye health. Avoid eye contact with the laser.

Technical Specifications

• Product Type: Visual Fault Locator

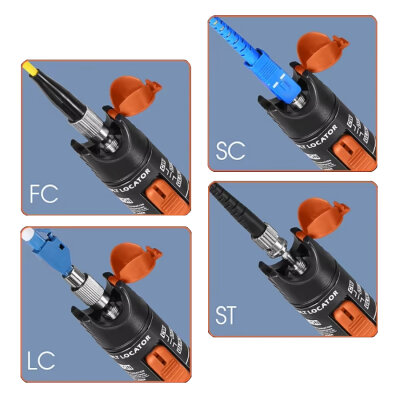

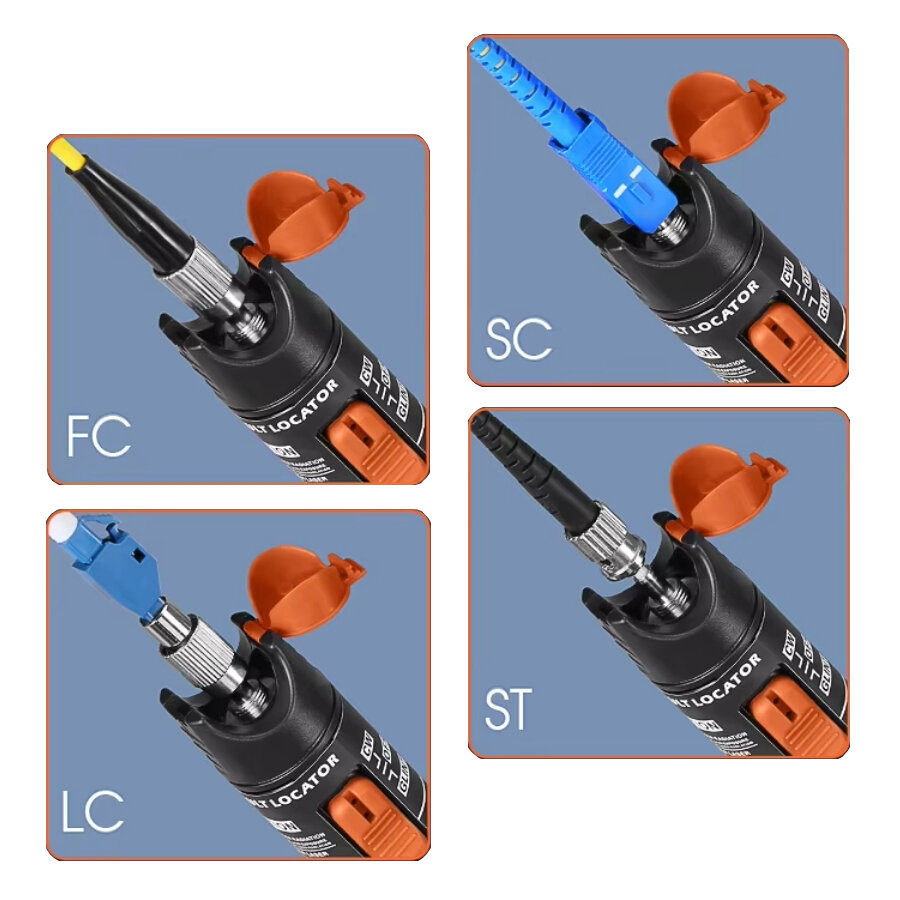

• Supported Fiber Optics: FC, SC, ST
• Optical Laser Power: >10mW
• Output Wavelength: 650nm ±10nm
• Fiber Optic Adapter: 2.5mm universal connector
• Operating Temperature Range: -20 ~ +70°C
• Power Supply Type: 2 AA Batteries
• Battery Life: >13 Hours
• Dimensions: 17.5x2x2cm
• Weight: 70g
