DC 5-30V to 5V 3A Step-Down Voltage Module

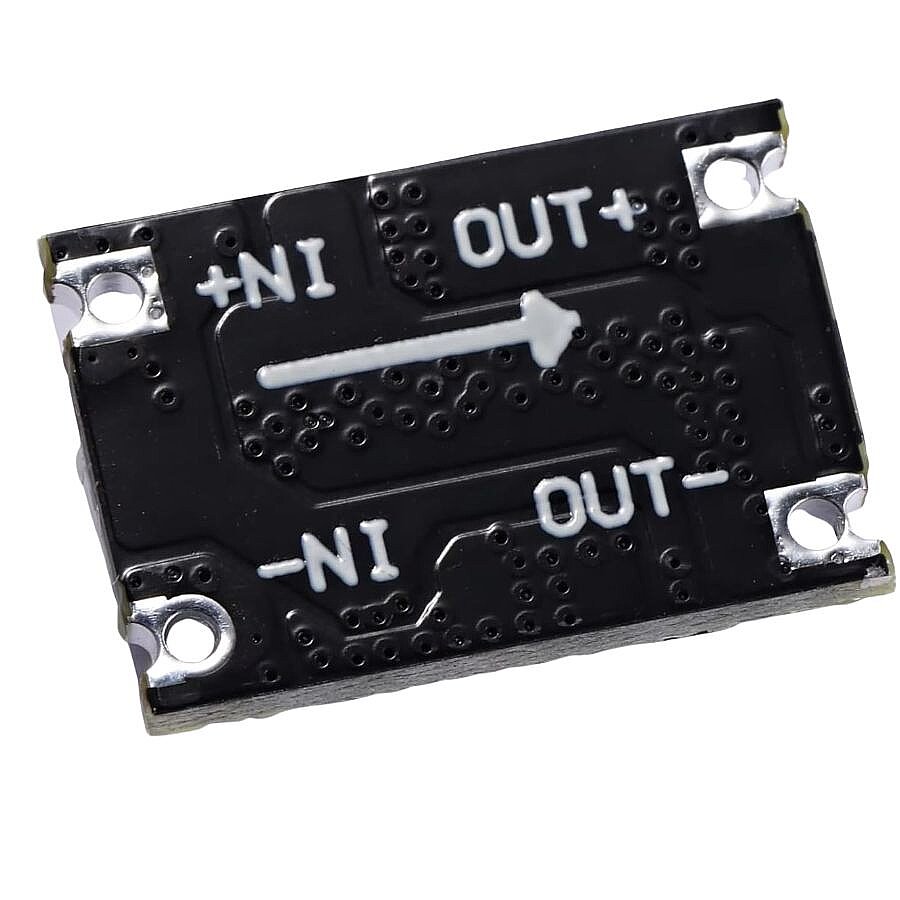

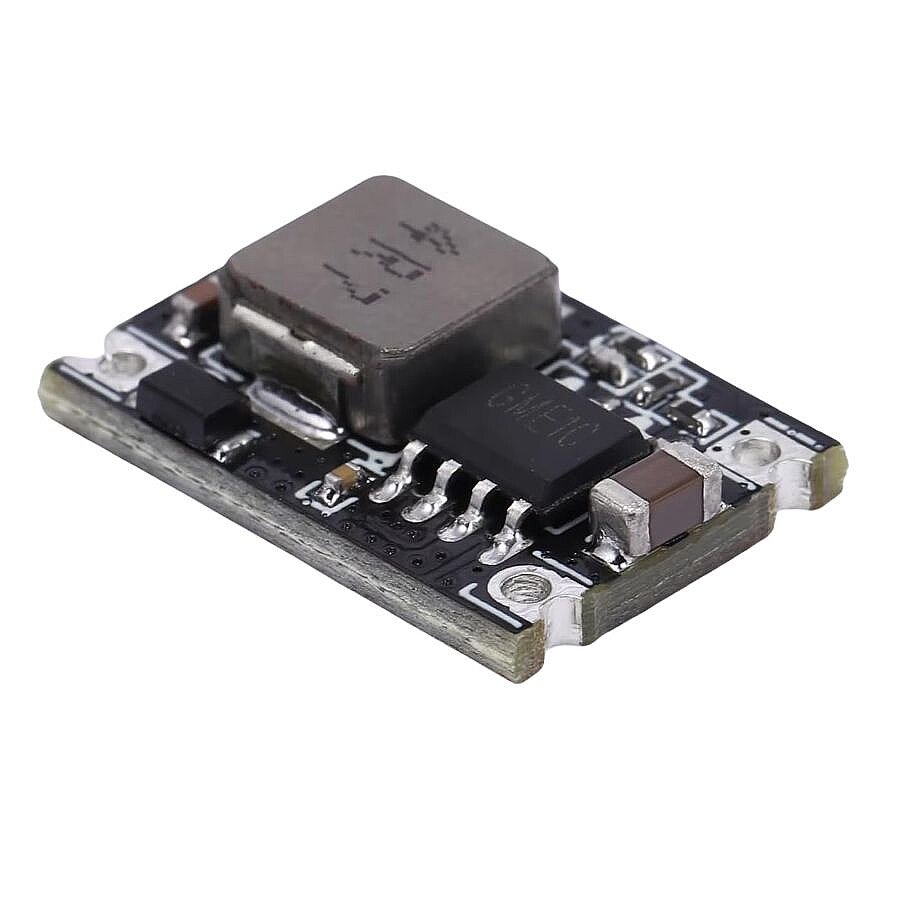

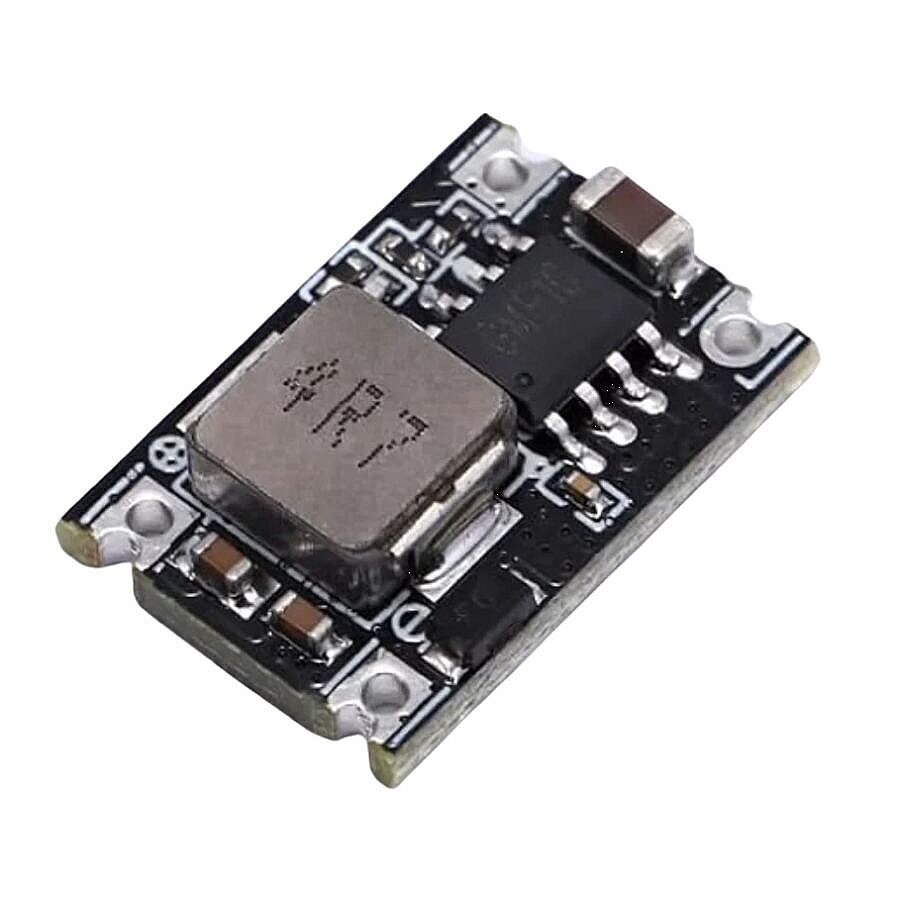

The DC 5-30V to 5V 3A Step-Down Voltage Module is a compact DC-DC step-down (buck) regulator board designed to convert higher DC input voltages into a stable 5V DC output.
The module's output is not adjustable; it does not feature a potentiometer, and the output is fixed at 5V. This design eliminates the need to adjust the voltage before each use in applications that require a 5V power supply.
Specifications
- Input Voltage: Approximately 5.5–30V DC
- Output Voltage: Fixed 5V DC
- Maximum Output Current: 3A
- Output Adjustment: Fixed, non-adjustable
- Maximum Efficiency: Up to 96% under optimal conditions
- Isolation: Non-isolated
- Connection Type: Solder connection

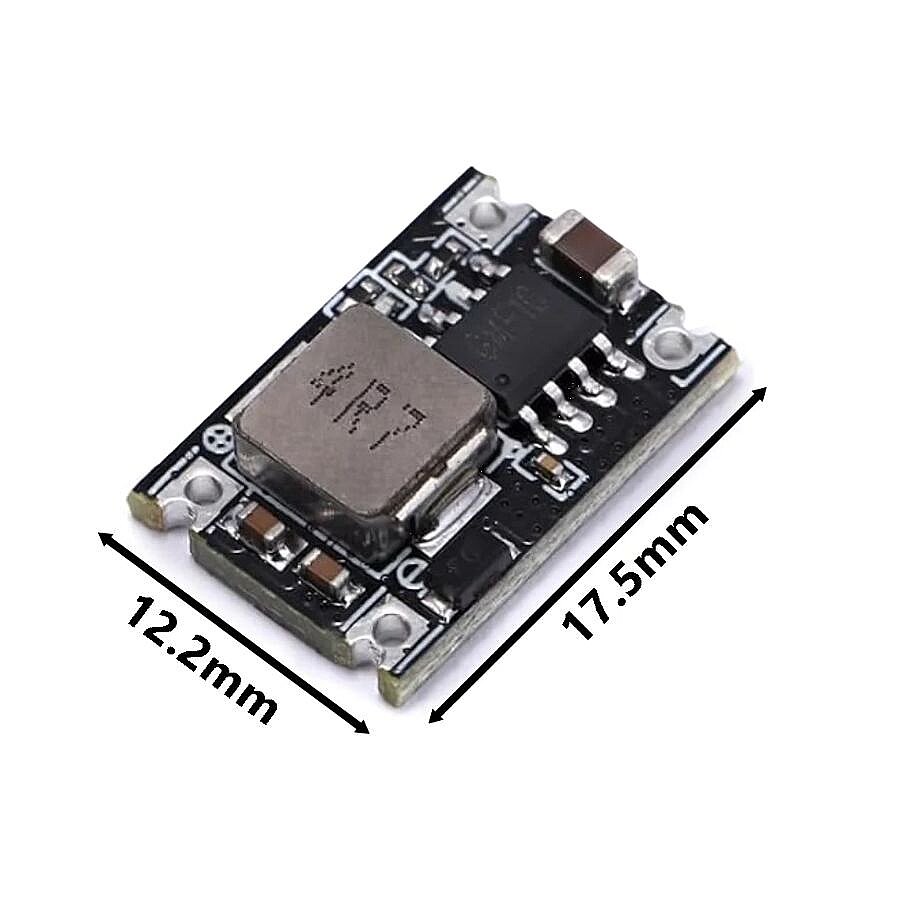

- Dimensions: 17.5x12.2mm
