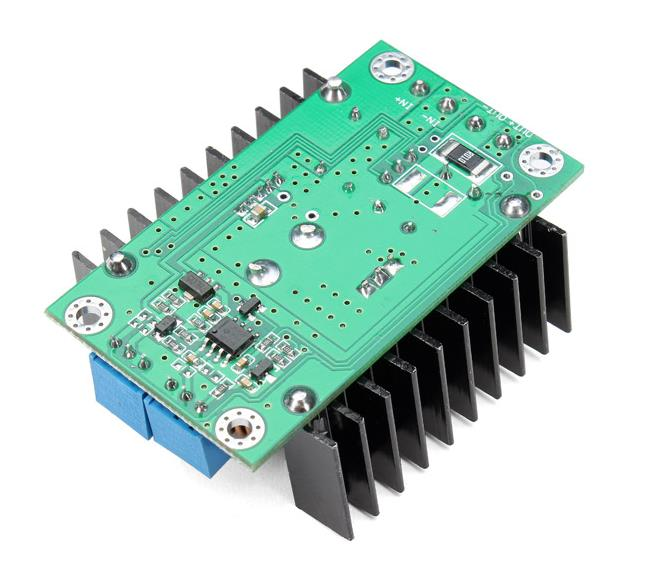

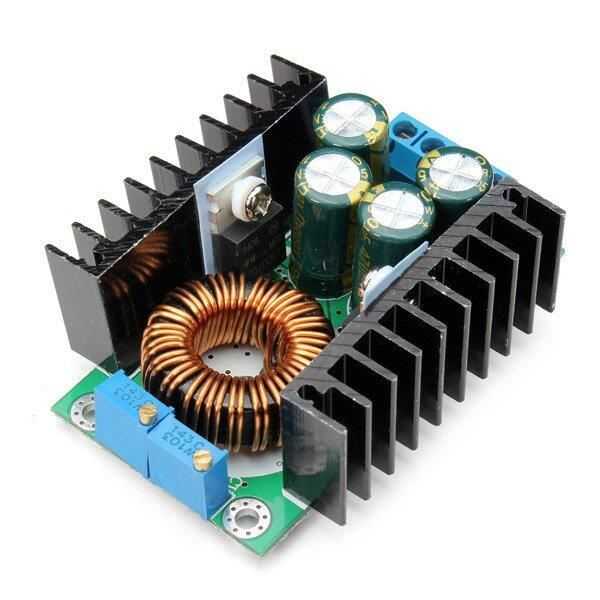

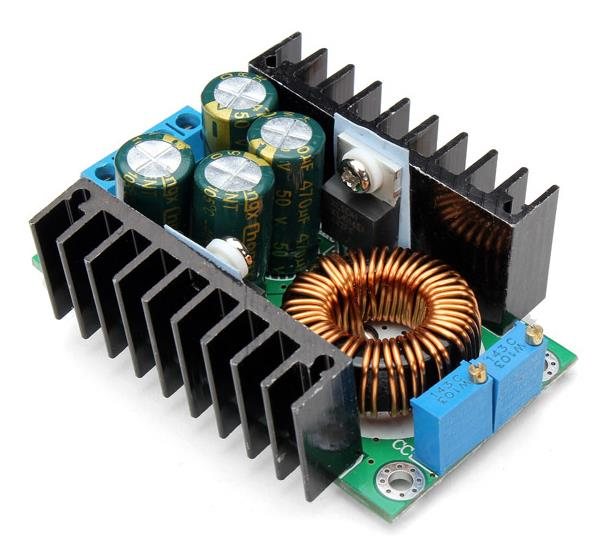

DC-DC 10A Amperage Adjustable Voltage Reducer Regulator Card

Voltage step down regulator circuit with adjustable voltage and amperage. Output voltage and amperage are adjusted with the trimpots on it.



Input voltage: 7-40V

Output voltage: 1.25-35V Adjustable ( Set the output voltage lower than the input voltage)

Output Current: 8A, 10A with fan cooling

Operating frequency: 300 khz

Output Ripple: approximately 50mV ripple

Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)

No-load current: Typical 20mA

Dynamic response speed: 5% 200uS

Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)

Short circuit protection
