ESP32-S3 1.47-Inch 172×320 LCD Display Development Board

ESP32-S3 1.47-Inch 172×320 LCD Display Development Board

The ESP32-S3 1.47-inch 172×320 LCD display development board is a microcontroller development board featuring 2.4 GHz WiFi and Bluetooth BLE 5 support, along with integrated high-capacity Flash and PSRAM. The onboard 1.47-inch LCD screen can smoothly run GUI applications such as LVGL. When combined with various peripheral interfaces, it is suitable for the rapid development of HMI and other ESP32-S3 applications.

User Manual

Features

• SKU: 28317
• Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240 MHz
• Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna
• Features 16 MB Flash and 8 MB PSRAM, in addition to 512 KB SRAM and 384 KB ROM
• Includes a 1.47-inch LCD display with 172×320 resolution and 262K color support
• Compatible with various IO interfaces and features an integrated full-speed USB port
• Includes an onboard TF card slot for storing images or files on an external TF card
• Offers precise control features, such as flexible clock management and multiple power modes, to ensure low power consumption across different scenarios
• Includes an onboard RGB LED with a transparent acrylic overlay panel for impressive lighting effects

Package Contents

• ESP32-S3-LCD-1.47 x1
• Header ×1

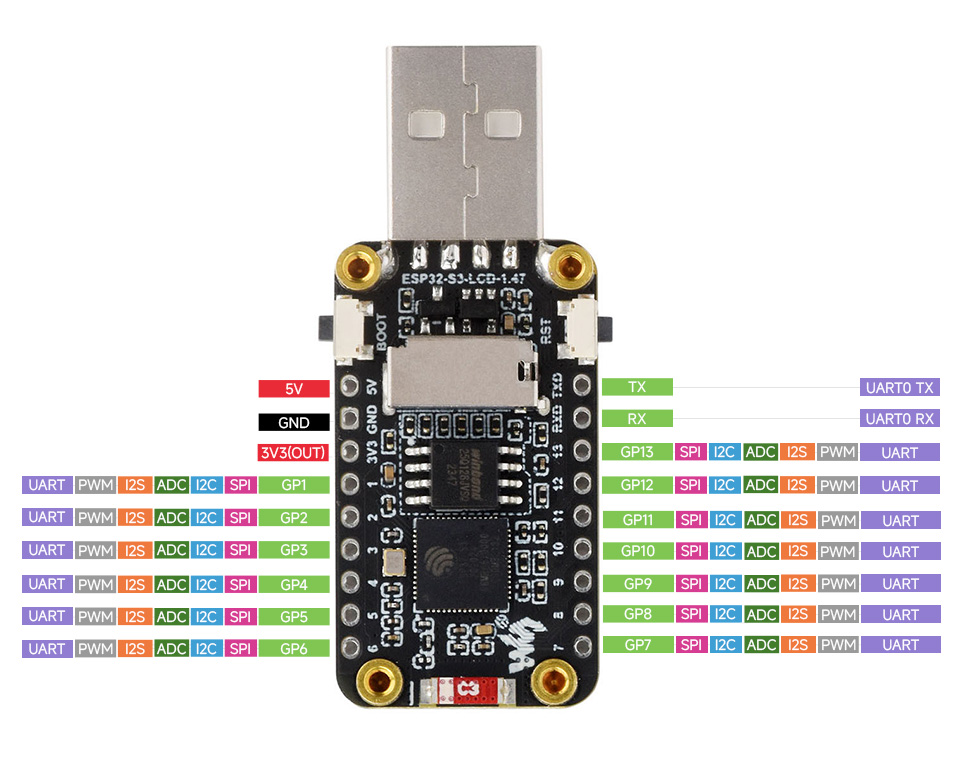

Pinout

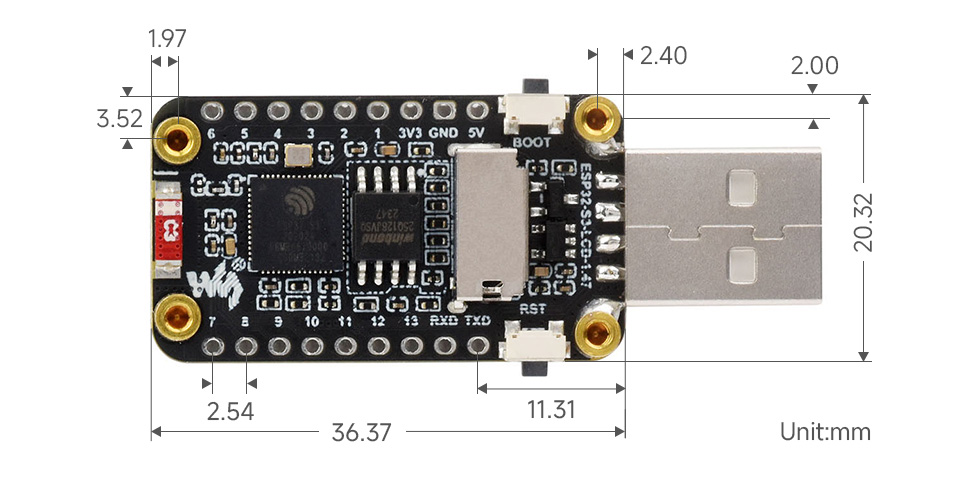

Size
