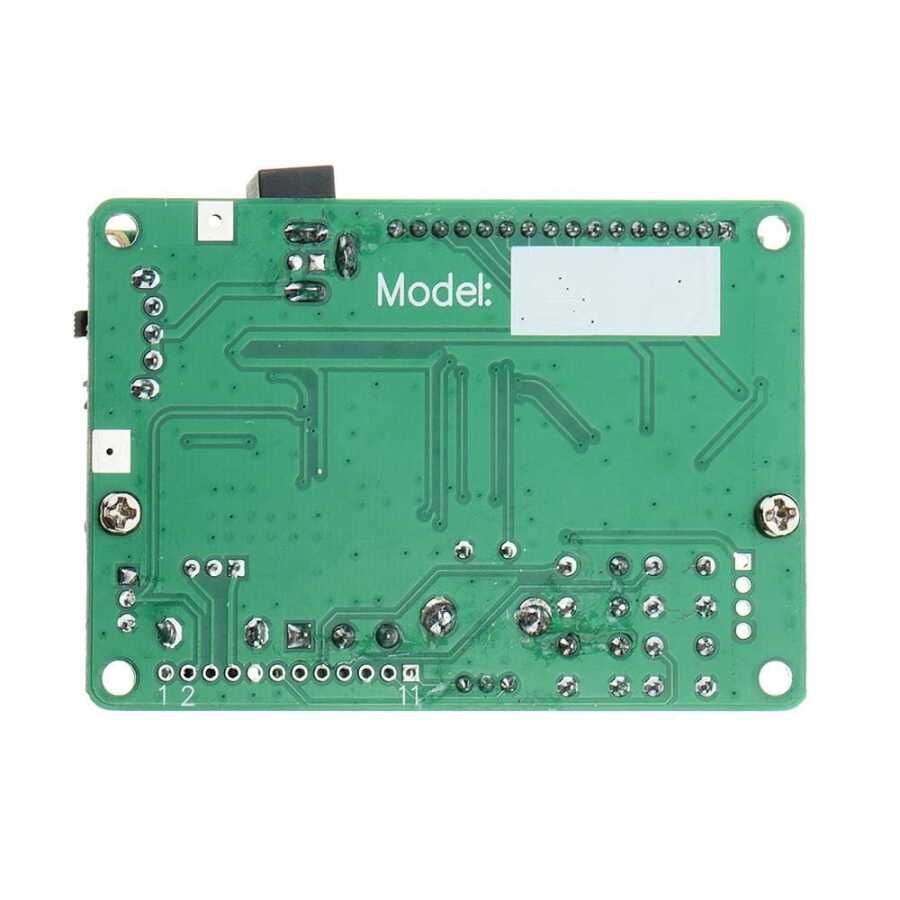

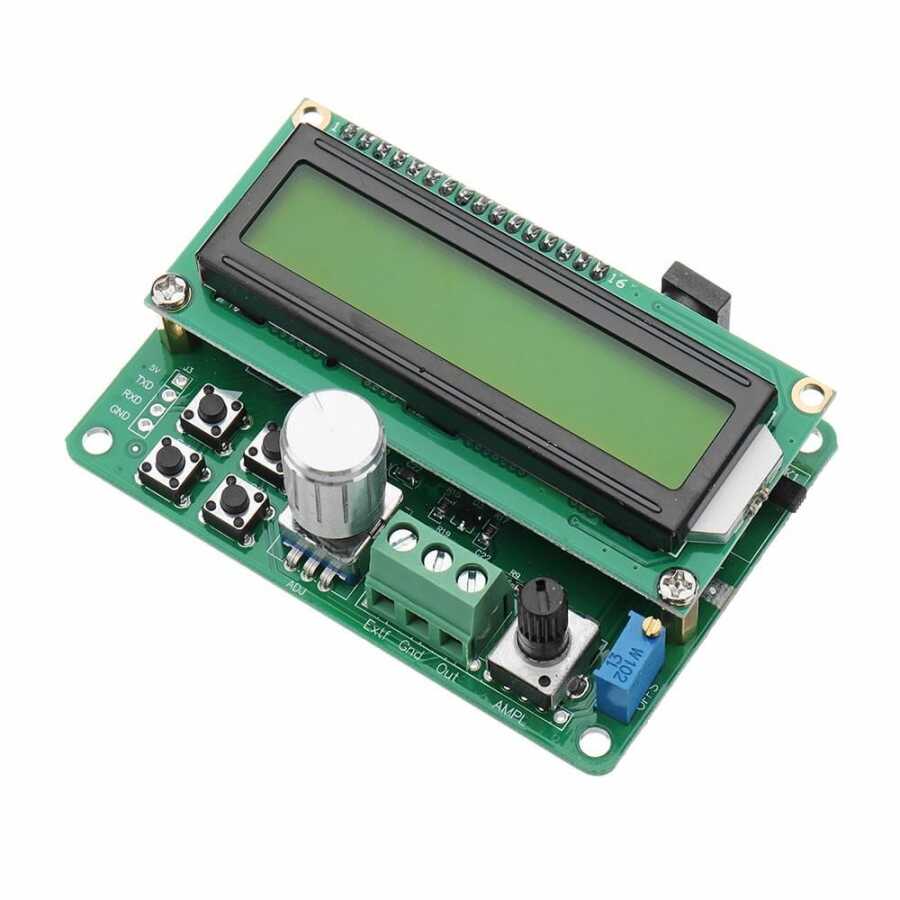

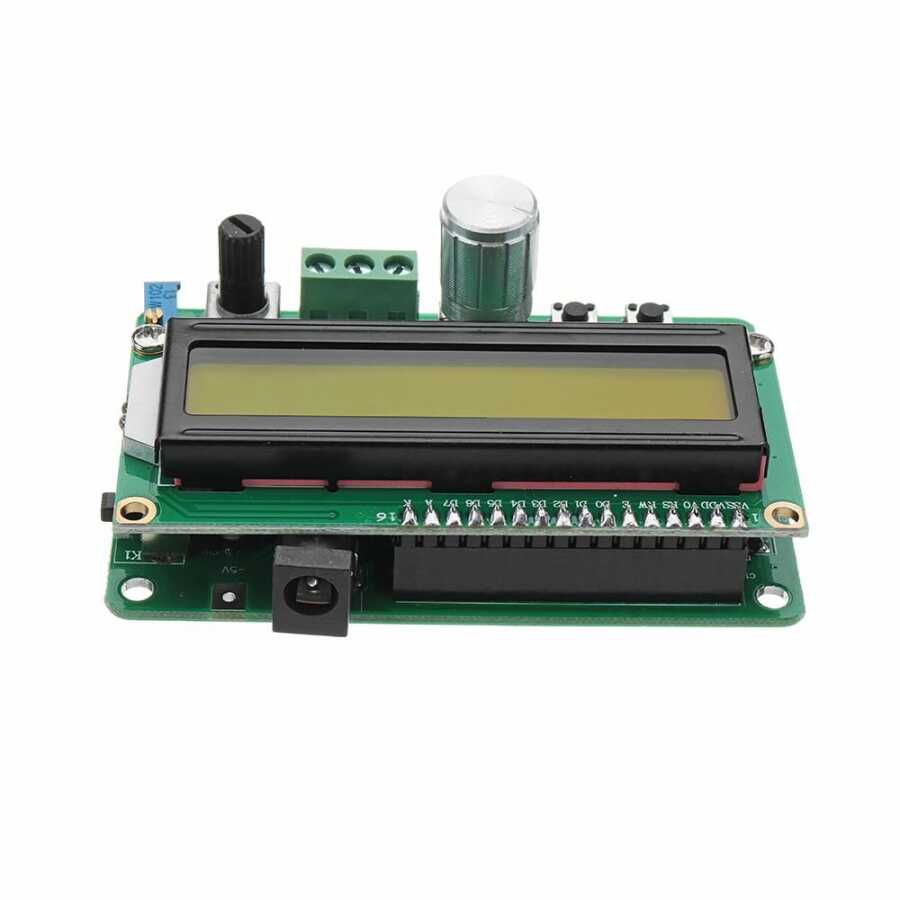

FYE050 DDS Signal Generator Module - 0-50kHz Frequency
FYE050 DDS Signal Generator Module - 0-50kHz Frequency. Working with 5VDC, 0-50KHZ It is a signal generator module that can produce sine, square wave and triangle waves in the frequency range. The waves produced are distorted by less than 1%. It has a digital display.
Features:
- Operating Voltage: 5VDC
- Frequency Range: 0-50KHz
- Distortion: 1%<
- Frequency Resolution: 0.01HZ ( 10mHz)
- Frequency Accuracy: ± 5x10-6
- Frequency Stability: ± 2x10-6 / 3 hours
- Input Amplitude: 0.5V p-p ~ 20V p-p
- Output Amplitude: 0.5-8V p-p (No Load)
- Operating Temperature: 0-70°C
- Output Impedance: 10ohm ± 10%
- Operating Temperature: 0 ~ 40°C
- Counter Function Counting Range: 0-65535
- Measurement Frequency Range: 1HZ ~ 20MHz
- Dimensions: 83x60x24mm
