G710A 16 Pieces Fiber Optic Tools Kit
3.367,00
TL
+
VAT
4.040,40
TL
Notify Me When It Arrives
Notify Me When It Arrives

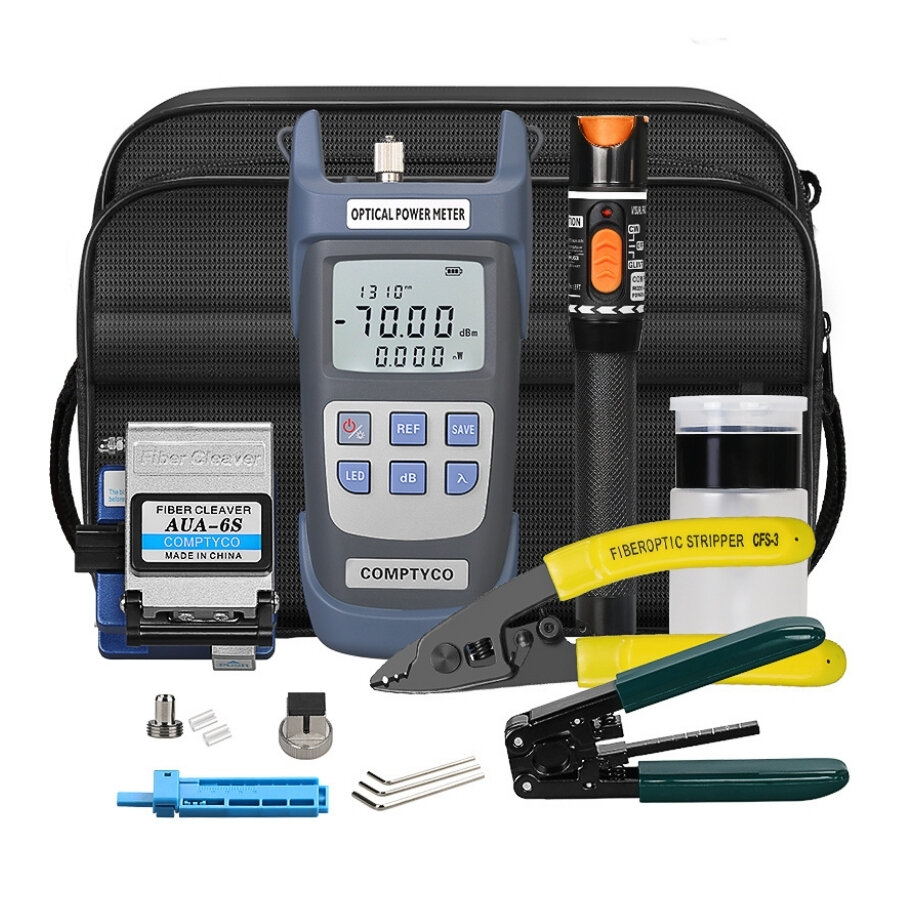

G710A 16 Pieces Fiber Optic Tools Kit
G710A 16 Pieces Fiber Optic Tools Kit all the essential equipment needed for fiber optic installation and maintenance processes in a single kit. It is a practical, economical, and professional solution for field teams. This set, which simplifies all processes from installation to testing, provides speed and efficiency in fiber optic projects.
Thanks to the equipment included, such as the optical power meter, visual fault locator (VFL), and fiber cutter, the installation, measurement, and fault detection of fiber lines can be done with a single set.
Used in FTTH, FTTB, and FTTX solutions. Suitable for SC/FC/ST Fiber ports.
AUA-G710A Technical Specifications
- Power Measurement Range: -70 ~ +10 dbm
- Probe Type: InGaAs
- Wavelength Range: 800 ~ 1700nm
- Standard Wavelengths: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
- Image Resolution:
- Linear: 0.1%
- Logarithmic: 0.01 dbm
- Operating Temperature Range: -10 ~ +60°C
- Automatic Shutdown Time: 10 minutes
- Battery Life: <40 hours
- Dimensions: 180 x 89 x 42mm

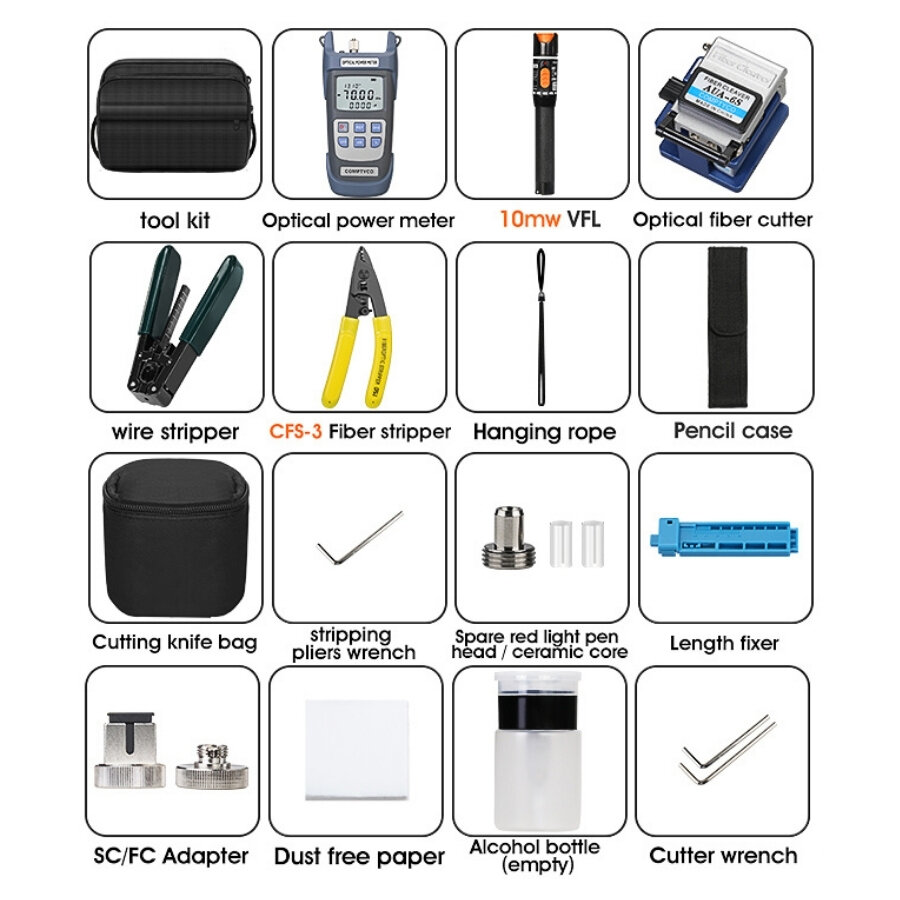

Included Products
AUA-G710A: Supports 10 test wavelengths, LED lighting, and on/off backlight display function. Wavelength memory, features a 2.5 mm universal SC FC ST interface.
10km VFL:Metal material, non-slip handle, powerful light source, 360° rotatable design, features a 2.5 mm universal SC FC ST interface.
CFS-3 Fiber Stripper: Does not damage optical fiber. Easily stripped, long-lasting. Used to strip the outer protective layer of large-hole 2 mm-3 mm optical fiber. The medium hole is used to strip the optical fiber core of 900 µm-250 µm. The small holes are used to strip the coating of the optical fiber core of 250 µm-125 µm. Cable Stripper: Used for stripping 1/2 core indoor and outdoor cables. Specifically designed for stripping cables. Ensures it does not damage the optical fiber. Lightweight, compact, and easy to use. Fixator: Used for cold splicing. Adjust the size of the optical cable and strip its outer coating. Then place it on the guide rail. Place it in the cutter to cut.
AUA-6S Cutting Blade: Features automatic springback, cold connection, smooth cutting, and a three-in-one structure.
Alcohol Bottle
Extra Gifts:Red illuminated pen case / lanyard, 2 ceramic tips / 1 red illuminated pen cap (spare), cutting case, tool adjustment wrench, Dust-free paper, SC adapter
