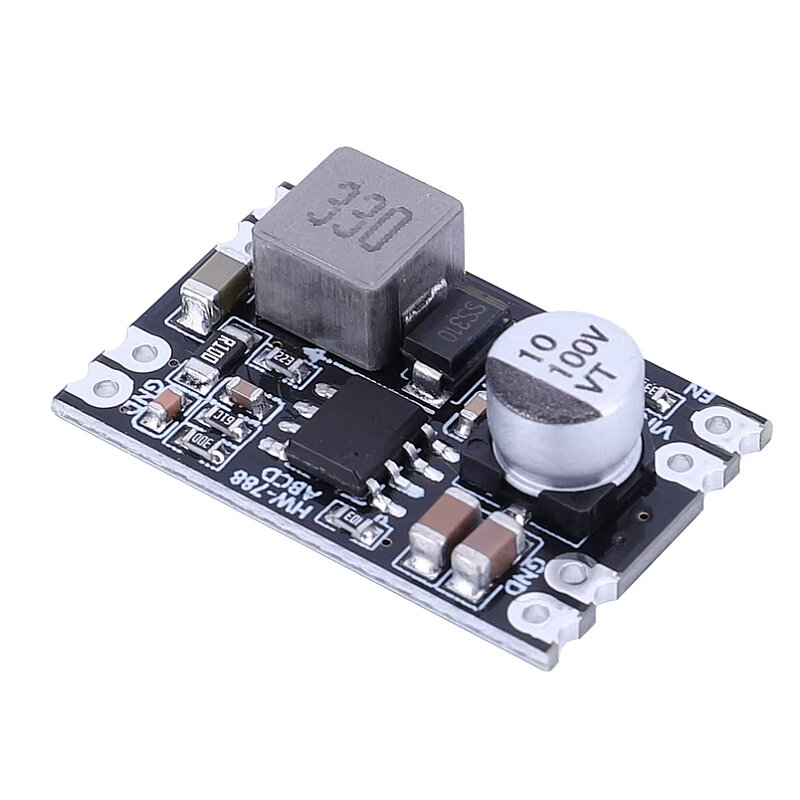

HW-788 DC 25-100V to 24V 1.7A Step-Down Voltage Module

HW-788 DC 25-100V to 24V 1.7A Step-Down Voltage Module

The HW-788 DC 25-100V to 24V 1.7A step-down voltage module is ideal for industrial, automotive, solar energy, and hobby electronics (DIY) applications; it provides reliable power regulation with high conversion efficiency and a compact design. Equipped with over-voltage, over-current, and short-circuit protection, it is suitable for demanding operating environments and long-term use. Thanks to its robust PCB layout and excellent thermal management, it delivers stable performance under various load conditions. Its "plug-and-play" capability simplifies power supply setups for embedded systems, battery-operated equipment, or robotics projects.

NOTE: Since this is a step-down module, the output voltage must always be lower than the input voltage.

Specifications

• Input Voltage: 25-100V DC
• Output Voltage: 24V DC
• Current: Maximum 1.7A

Output Voltage Adjustment

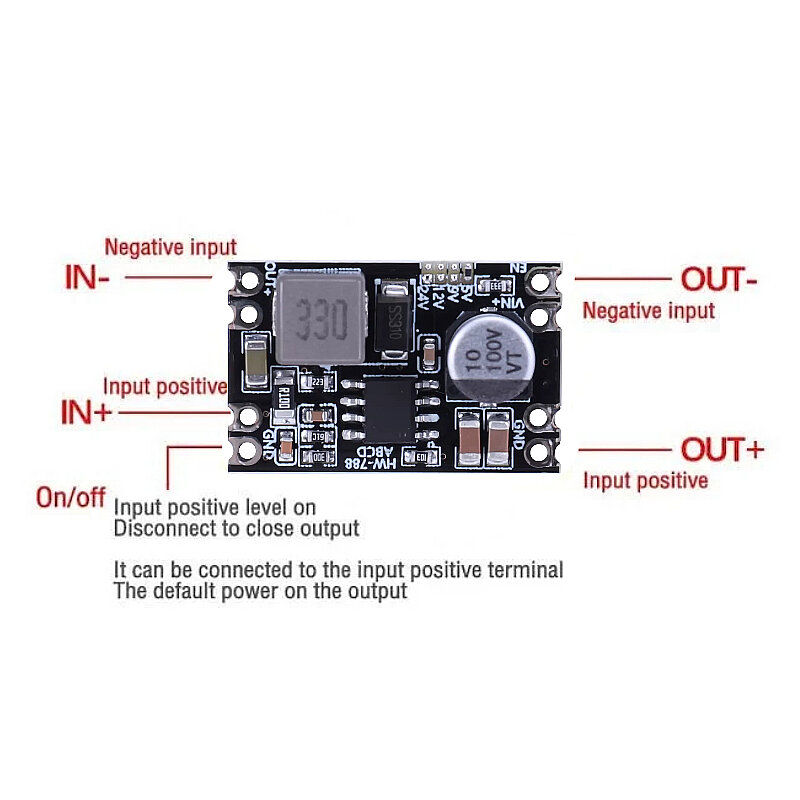

The module provides the output voltage corresponding to the pad where the resistor is placed within the marked section shown in the image. This allows for selectable outputs of 5V, 9V, 12V, or 24V. Since the product is a voltage step-down converter, the output voltage must always be lower than the input voltage.
