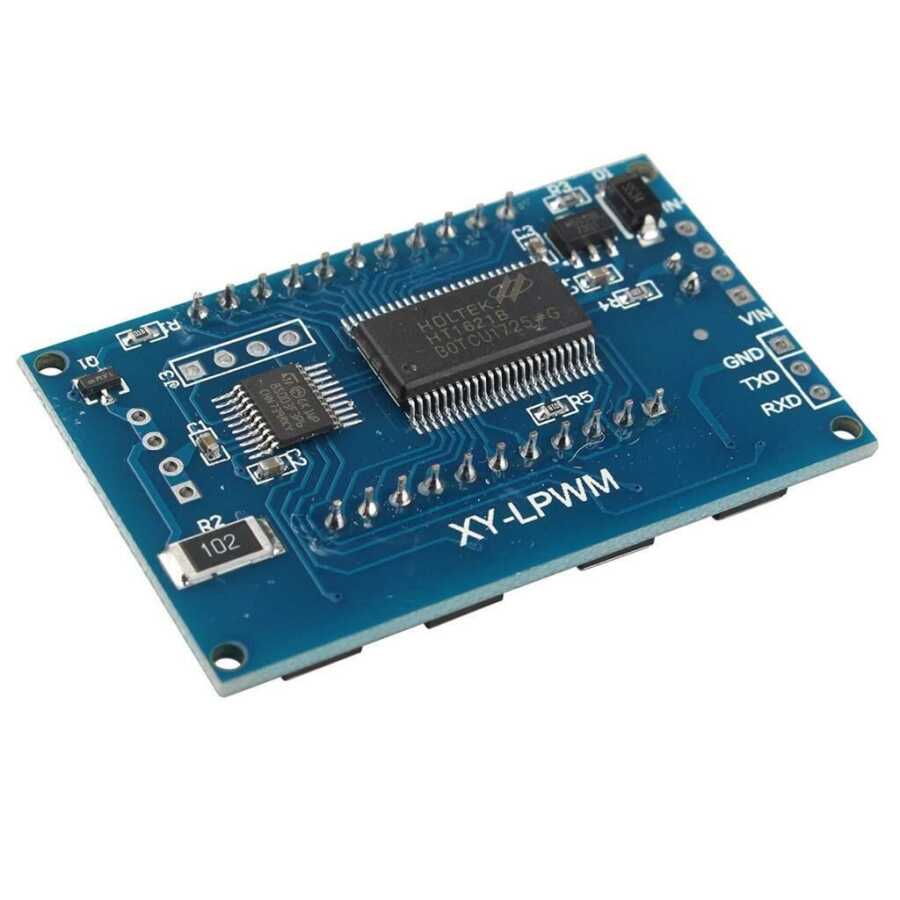

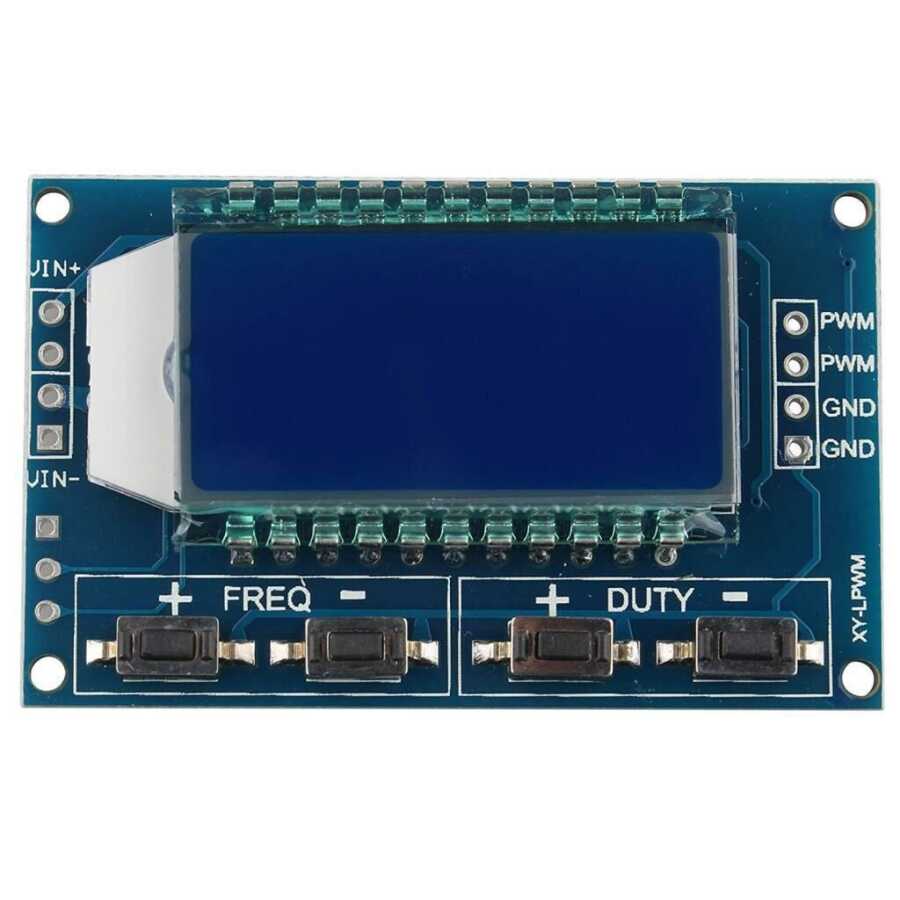

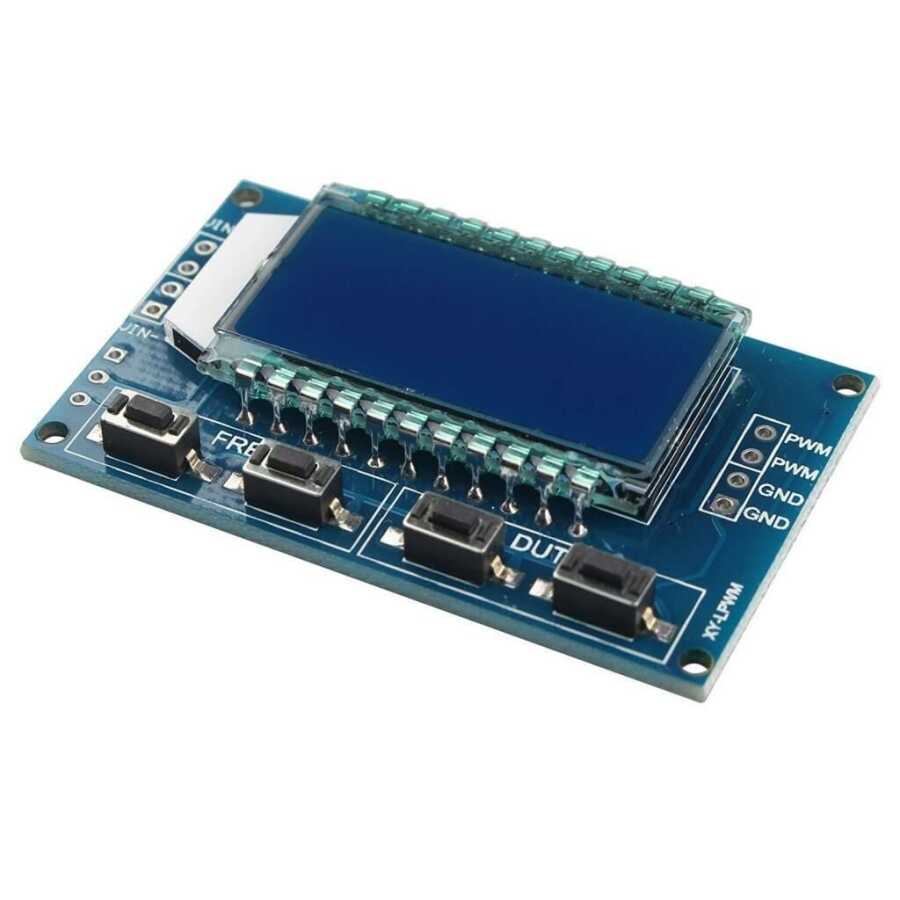

PWM Signal Generator Circuit XY-LPWM
This device is capable of generating a square wave signal for experimental development involving PWM speed control (e.g. motor drivers) and other microcontroller uses. Serial Protocol can be controlled via TTL (TXD and RXD pins). It is stable, reliable and very simple to use.
Technical Specifications:
- Operating Voltage: 3.3 - 30 VDC
- Frequency Range: 1Hz - 150 KHz
- Frequency Accuracy: Accuracy in each range is approximately 2%
- Signal Load Capacity: 5 - 30 mA
- Output Amplitude: PWM Amplitude Equal to Supply Voltage
- Operating Temperature: -20 - +70 Celsius
- Dimensions: 52 x 32 x 10 mm
Communication Standard:
- 9600 bps Data bits: 8
- Stop bit: 1
- Check digit: none
- Flow control: none
- Serial communication
1) Adjusting the frequency of PWM:
Command "F101": Set the frequency to 101 HZ (001 to 999)
"F1.05" command: set frequency of 1.05 KHZ (1.00 ~ 9.99)
Command "F10.5": Set the frequency to 10.5KHZ (10.0 ~ 99.9).
Command "F1.0.5": Adjust 105KHZ frequency (1.0.0 ~ 1.5.0)
2) Adjusting PWM duty cycle:
D 3) read set parameter
Send a "read" string to read the set parameters.
Set by returning: DOWN.
DIV>
Setup failed to return: FALL.
.png)
