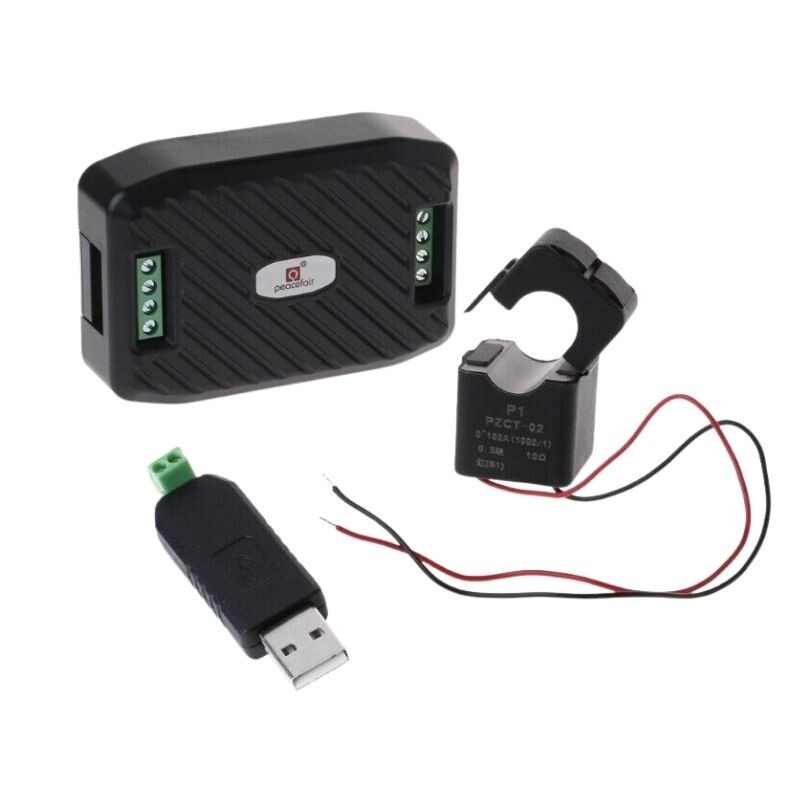

PZEM-016 AC 100A RS485 Modbus Power Consumption Meter + Split CT + USB

PZEM-016 AC 100A RS485 Modbus Power Consumption Meter + Split CT + USB

PZEM-016 AC 100A RS485 Modbus Power Consumption Meter + Split CT + USB, The module is mainly used to measure AC voltage, current, active power, frequency, power factor and active energy, the module has no display function, the data is read through the RS485 interface.

For detailed user manual of the producthere you can click.

Features

• Power Measurement Range: 0～2.3 kW
• Resolution: 0.1 W
• Current Measurement Range: 0～100 A
• Resolution: 0.001A
• Measurement Accuracy: 0.5%
• Voltage Measurement Range: 80～260VAC
• Resolution: 0.1V
• Energy Measurement Range: 0～9999.99kWh
• Resolution: 1Wh
• Frequency Measurement Range: 45Hz～65Hz
• Resolution: 0.1 Hz
• Dimensions: 90x60.5x23mm
