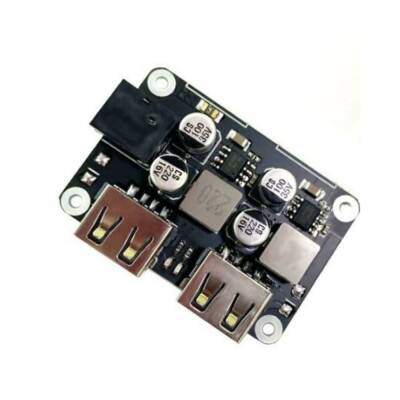

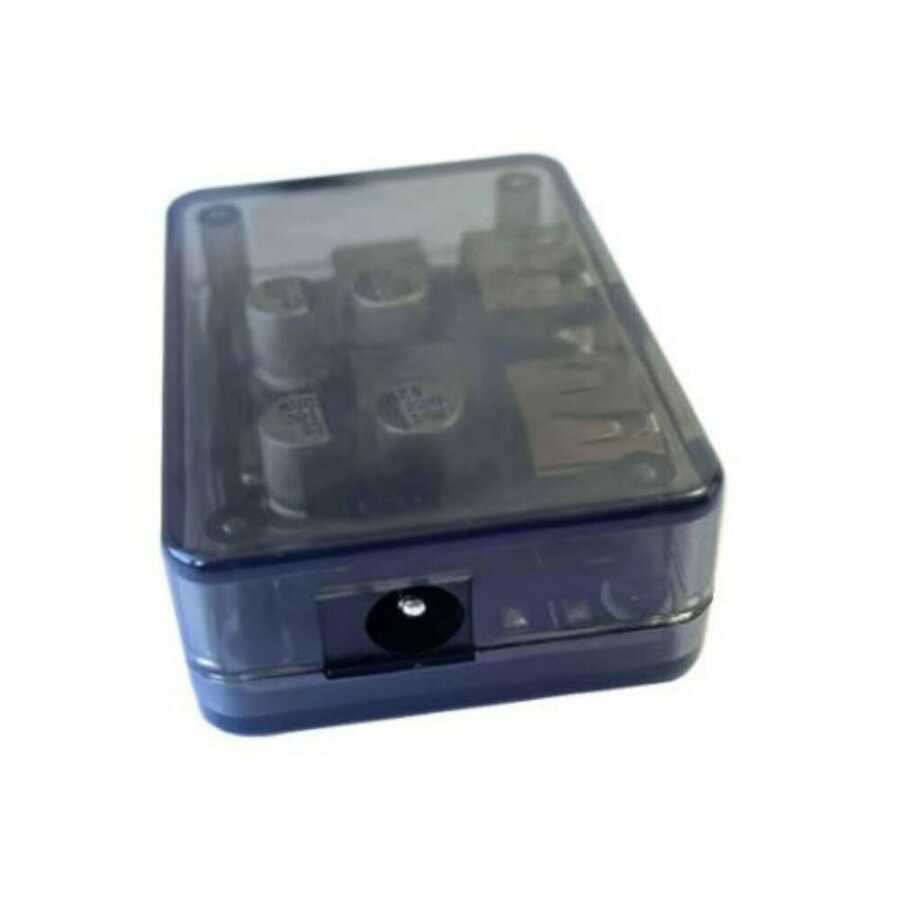

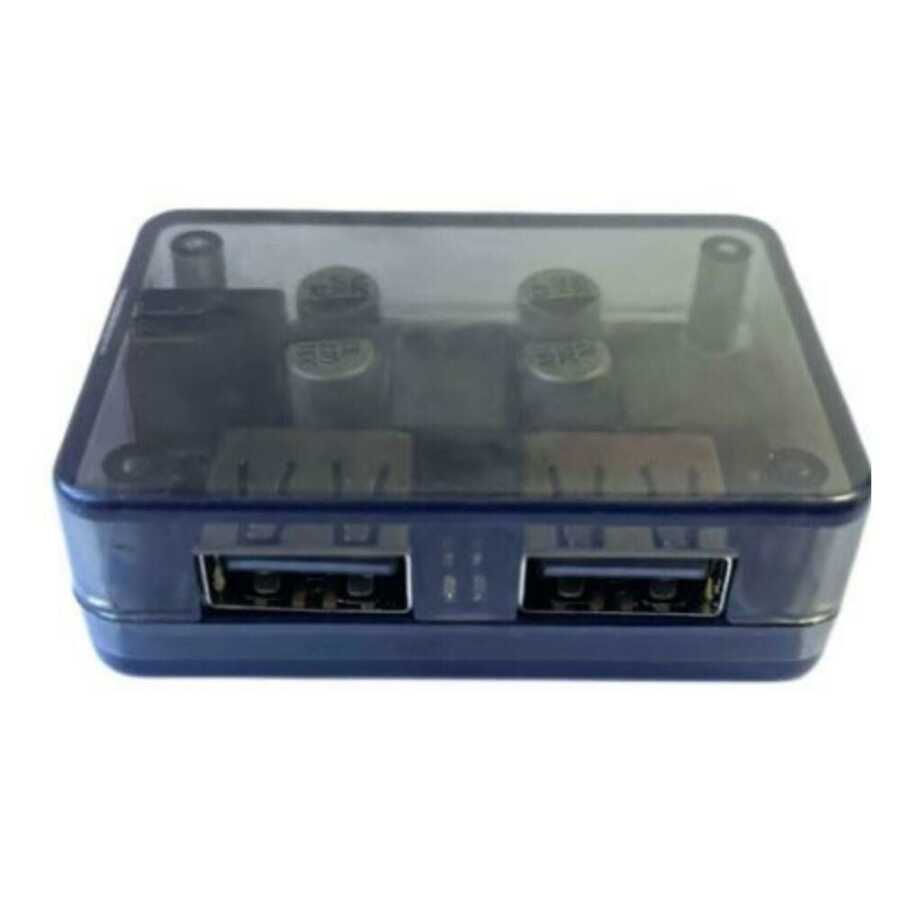

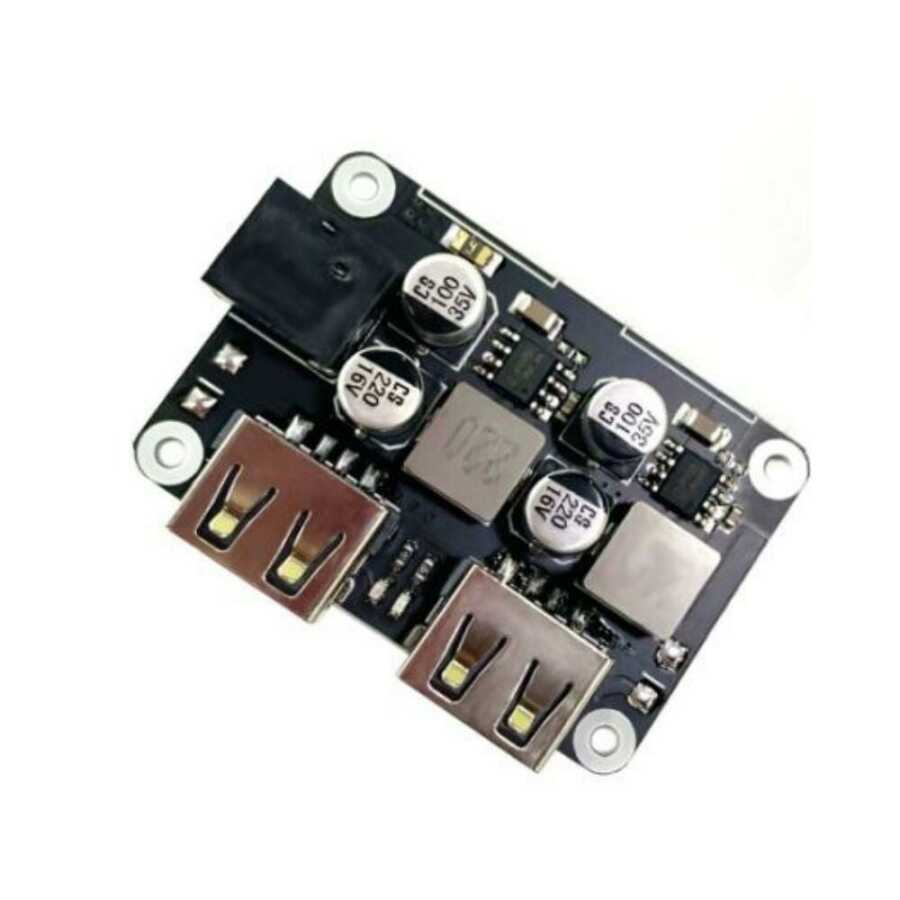

QC 2 Channel USB Fast Charging Circuit 6-32V Boxed
QC 2 Channel USB Fast Charging Circuit 6-32V Boxed. It is a 2-lanch fast charging circuit that supports fast charging protocols. It provides up to 18 watts of output. There is support for charging from 2 channels simultaneously. It has overvoltage, short circuit, overtemperature and low voltage protection.
Features:
- Supply Voltage: 6 - 32VDC
- Input Interface: DC 5.5x2.1mm
- Output Power: 18Wx2
- Output Voltage: default 5V, automatically adjusted between 3 ~ 12V after fast charging is triggered
- 2 Channels are the same Instant charging
- Input overvoltage, undervoltage, overcurrent, short circuit, overtemperature protections
- Size: 50x36x16mm
Supported Fast Charging Protocols ;
- BC 1.2
- Qualcomm QC2.0 and QC 3.0
- PE2.0
- Samsung Fast Charging Protocol AFC< /LI>
- Spreadtrum fast charging protocol SFCG
- Divider 3 (Apple 10W)
