RB-R4F12-W1 12-Way Pre-Wired Automotive Relay and Fuse Box - Includes 4 Relays + 12 Fuses

RB-R4F12-W1 12-Way Pre-Wired Automotive Relay and Fuse Box - Includes 4 Relays + 12 Fuses

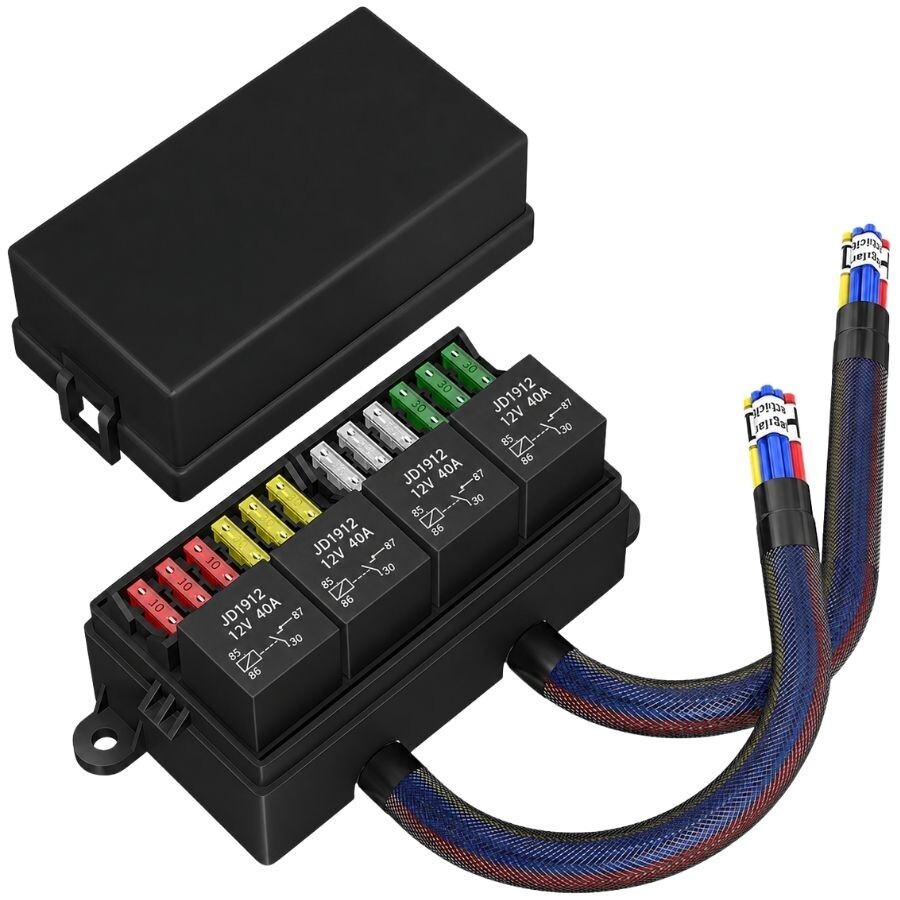

The RB-R4F12-W1 12-Way Pre-Wired Automotive Relay and Fuse Box is a compact power distribution unit designed for the centralized, organized, and serviceable installation of multiple electrical circuits in 12V DC vehicle electrical systems.

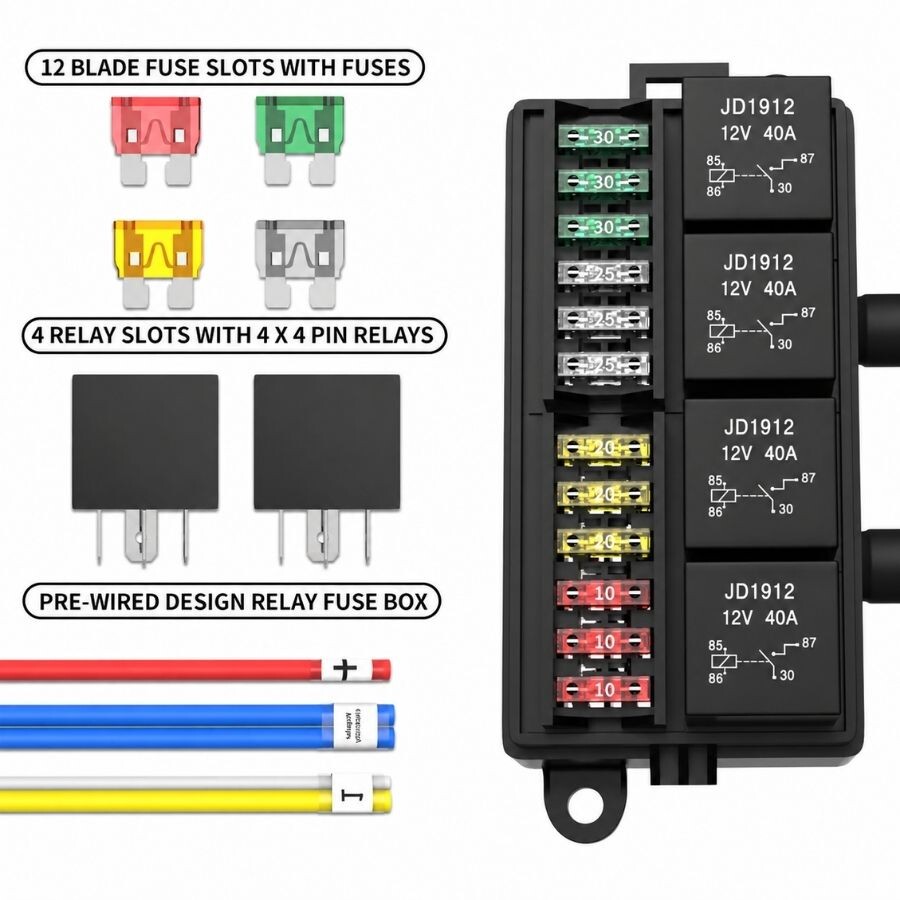

The unit features 12 slots for ATC/ATO blade fuses and 4 slots for Bosch-style 4-pin relays. This configuration allows for the control of lighting, fans, pumps, horns, compressors, and other electrical accessories via dedicated fuses and relays.

One of the key advantages of this box is that it comes pre-wired; the majority of the fuse and relay connections are already established within the unit.

This reduces the need to prepare terminals and internal wiring from scratch, allowing for faster installation.

Specifications

• Operating Voltage: 12V DC
• Number of Fuse Slots: 12
• Fuse Type: ATC / ATO blade fuse
• Number of Relay Slots: 4
• Relay Type: Bosch-style 4-pin relay
• Pre-wiring: Included
• Top Protective Cover: Included
• Bottom Protective Cover: Included
• Protection: Sealed housing protecting against water and environmental elements
• Mounting Type: Surface mount / vehicle electrical system installation

Package Contents

• Relay and Fuse Box
• 3x 5A Blade Fuse
• 3x 10A Blade Fuse
• 3x 15A Blade Fuse
• 3x 20A Blade Fuse
• 4x 4-Pin Relay
