RB-R6F11-W1 11-Way Pre-Wired Automotive Relay and Fuse Box - Includes 6 Relays + 11 Fuses

RB-R6F11-W1 11-Way Pre-Wired Automotive Relay and Fuse Box - Includes 6 Relays + 11 Fuses

The RB-R6F11-W1 11-Way Pre-Wired Automotive Relay and Fuse Box is a universal power distribution unit designed to manage multiple electrical circuits in 12V DC systems in an organized and safe manner from a single central point. It is particularly well-suited for custom vehicle wiring, off-road projects, marine systems, and the centralized control of aftermarket electrical accessories.

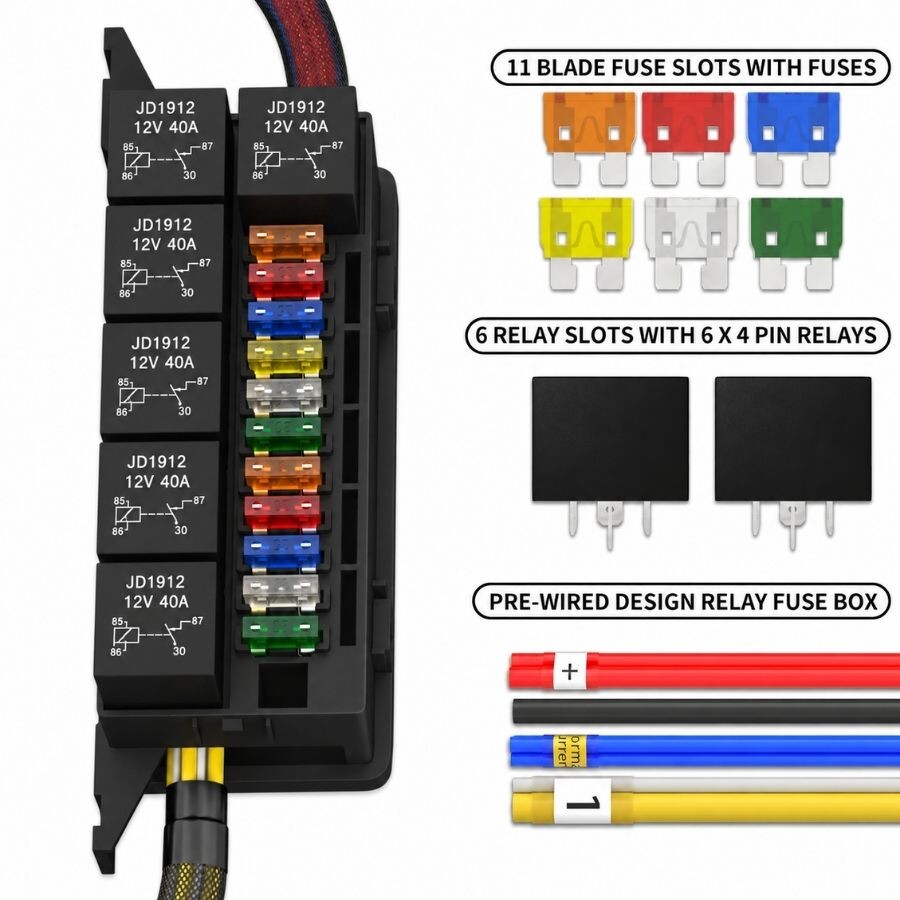

The unit features 11 slots for standard ATC/ATO blade fuses and 6 slots for Bosch-style relays. This high-capacity design allows the fuses and relays for various electrical components—such as lighting, fans, pumps, horns, compressors, and similar equipment—to be consolidated into a single enclosure.

Thanks to its pre-wired design, the relay and fuse connections are already established within the unit. Users can complete the installation simply by connecting the necessary power, trigger, and load lines to the vehicle's electrical system.

This feature significantly reduces wiring clutter, especially in vehicle projects involving numerous auxiliary electrical components.

Specifications

• Operating Voltage: 12V DC
• Number of Fuse Slots: 11
• Fuse Type: ATC / ATO blade fuse
• Number of Relay Slots: 6
• Relay Type: Bosch-style relay
• Relay Compatibility: 5-pin Bosch-style
• Pre-wired: Yes

Package Contents

• Relay and Fuse Box
• 2x 5A Blade Fuse
• 2x 10A Blade Fuse
• 2x 15A Blade Fuse
• 2x 20A Blade Fuse
• 2x 25A Blade Fuse
• 1x 30A Blade Fuse
• 6x 4-Pin Relay
