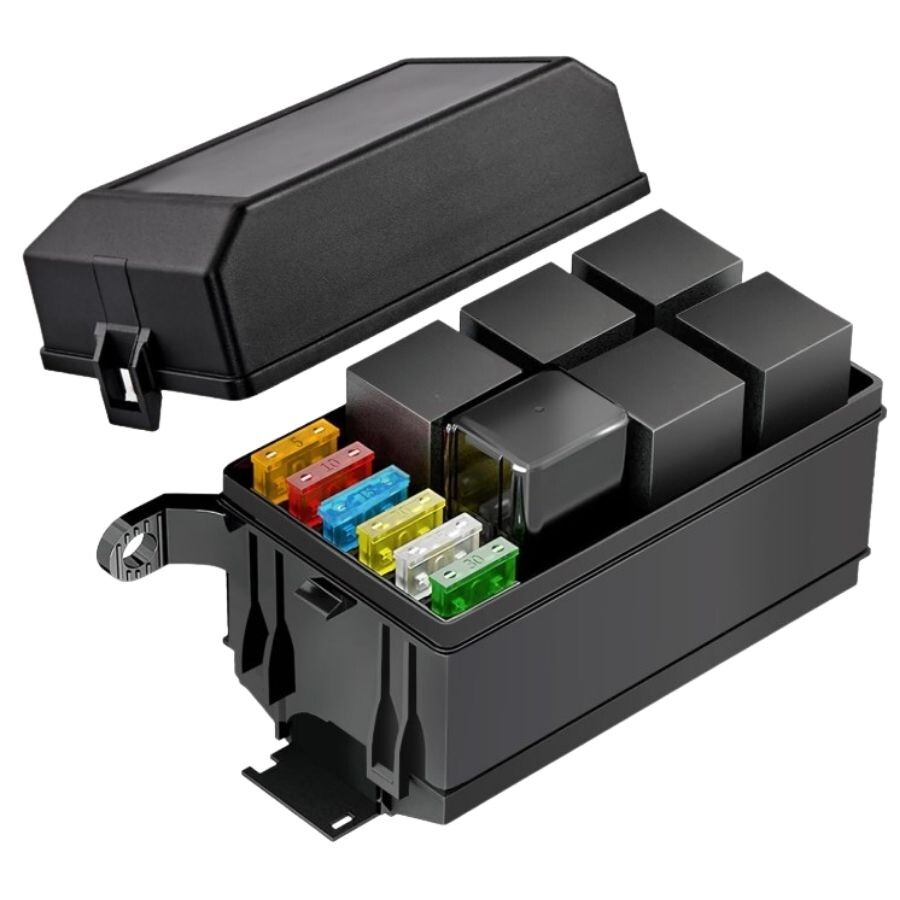

RB-R6F6-RF 6-Way Automotive Relay and Fuse Box - Includes 6 Relays + 6 Fuses

RB-R6F6-RF 6-Way Automotive Relay and Fuse Box - Includes 6 Relays + 6 Fuses

The RB-R6F6-RF 6-Way Automotive Relay and Fuse Box is designed for the safe and organized distribution of multiple electrical circuits from a single central point in automotive and marine electrical systems. The unit features 6 separate fuse circuits and a common negative busbar. This allows each piece of electrical equipment to be protected by its own fuse while enabling negative connections to be neatly consolidated on the same panel.

The fuse box is compatible with standard ATO/ATC blade-type fuses. It is rated for a maximum current of 30A per circuit and a total panel capacity of 100A. With a maximum operating voltage of 32V DC, it is suitable for use in both 12V and 24V vehicle electrical systems.

This allows each piece of electrical equipment to be protected by an individual fuse, while negative connections can be neatly organized on the same panel.

Specifications

• Number of Circuits: 6
• Fuse Type: ATO / ATC standard blade fuse
• Operating Voltage: 12-24V DC
• Maximum Operating Voltage: 32V DC
• Panel Maximum Current: 100A
• Maximum Current Per Circuit: 30A
• Negative Busbar: Included
• LED Fault Indicator: Included
• LED Function: Red warning light when fuse blows
• Connection Type: Screw terminal

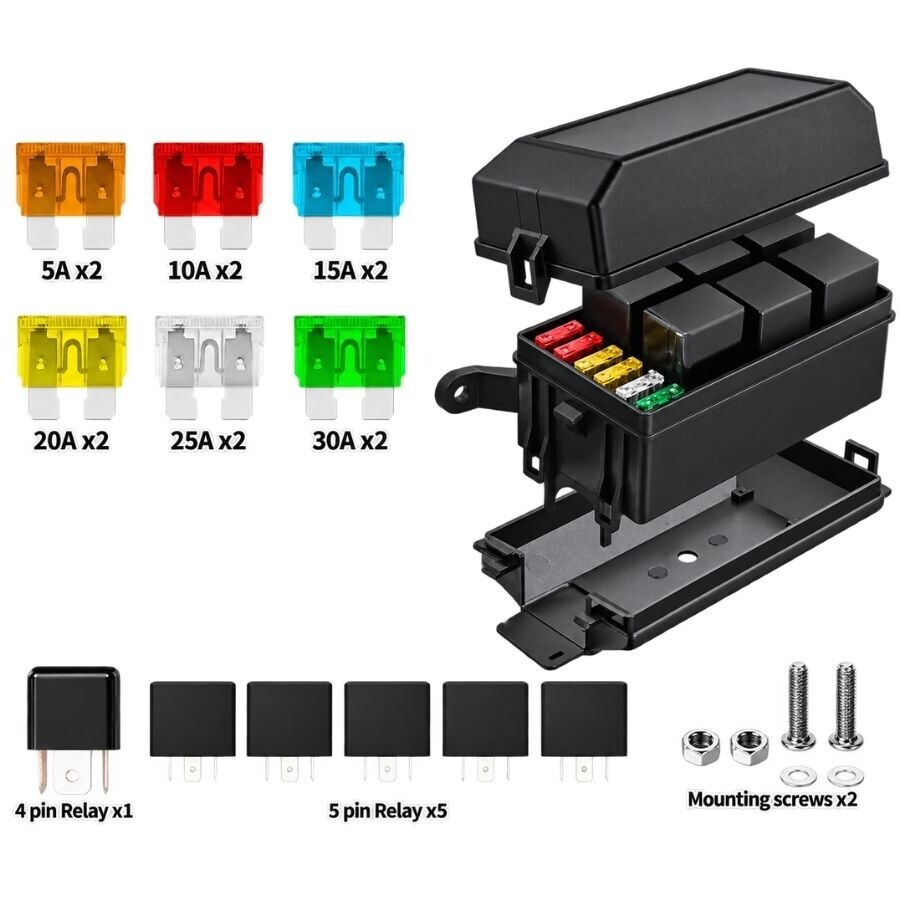

Package Contents

• Relay and Fuse Box
• 2x 5A Blade Fuse
• 2x 10A Blade Fuse
• 2x 15A Blade Fuse
• 2x 20A Blade Fuse
• 2x 25A Blade Fuse
• 2x 30A Blade Fuse
• 1x 4-Pin Relay
• 5x 5-Pin Relay
• Mounting Screws
