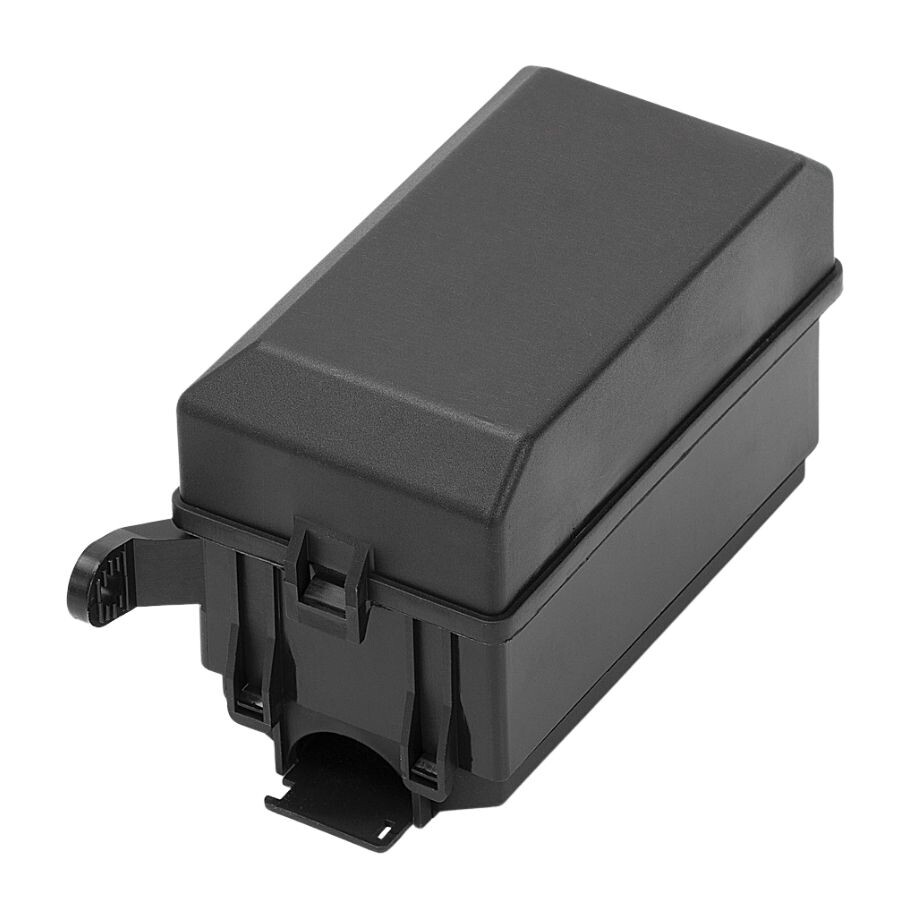

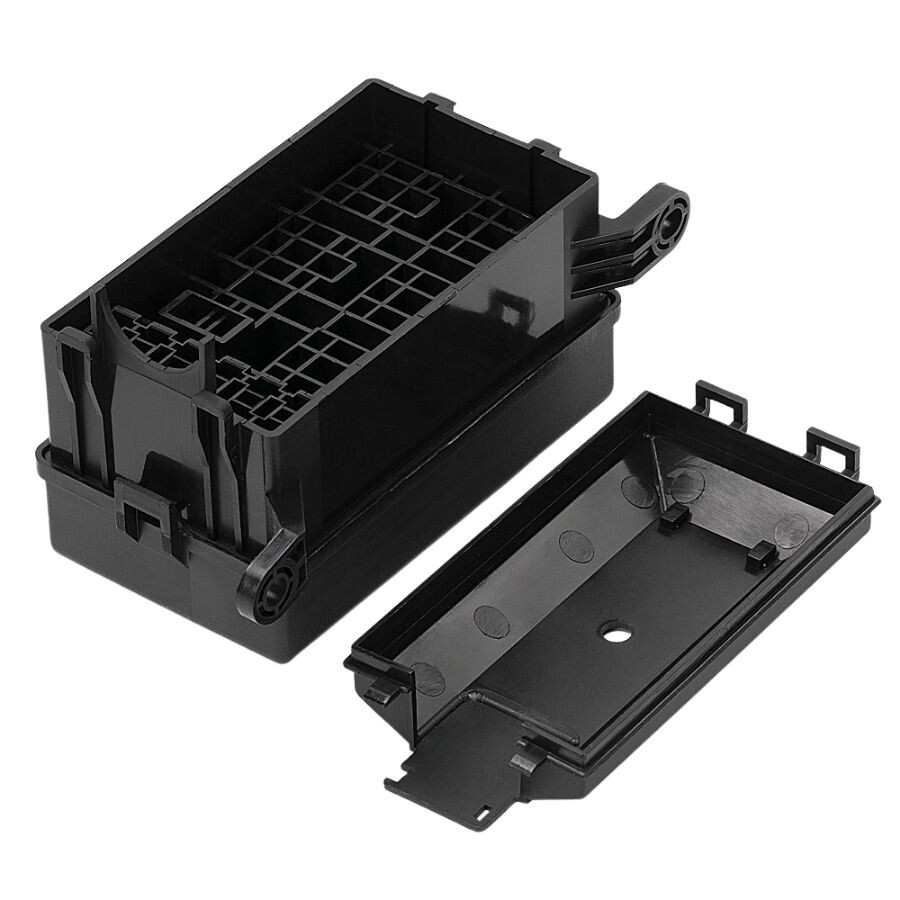

RB-R6F6 6-Way Automotive Relay and Fuse Box

RB-R6F6 6-Way Automotive Relay and Fuse Box

The RB-R6F6 6-Way Automotive Relay and Fuse Box is a compact power distribution unit designed for the centralized, organized, and serviceable installation of multiple electrical circuits in 12V DC vehicle electrical systems.

The unit features a total of 12 slots: 6 are designated for standard ATC/ATO blade fuses, and the other 6 are for relays. The relay section includes 5 slots for Bosch-style 5-pin relays and 1 slot for an RTT7121-style 4-pin relay. This configuration allows for the organized management of various electrical circuits—such as lighting, fans, pumps, horns, accessories, and more—within a single unit.

NOTE: The product is the automotive relay and fuse box only. Relays and fuses are not included.

Specifications

• Operating Voltage: 12V DC
• Total Fuse Slots: 6
• Fuse Type: ATC / ATO blade fuse
• Total Relay Slots: 6
• Bosch-style Relay Slots: 5
• Bosch Relay Type: 5-pin
• RTT7121 Relay Slot: 1
• RTT7121 Relay Type: 4-pin
• Total Slot Configuration: 6 fuses + 6 relays
• Mounting Type: Surface mount / vehicle electrical system installation
• Compatible Relays: Bosch-style relays and RTT7121-style relays
• Compatible Fuses: Standard ATC / ATO automotive fuses

Package Contents

• Relay and Fuse Box
