RB-R6F6-RF-W2 6-Way Pre-Wired Automotive Relay and Fuse Box - Includes 6 Relays + 6 Fuses

RB-R6F6-RF-W2 6-Way Pre-Wired Automotive Relay and Fuse Box - Includes 6 Relays + 6 Fuses

The RB-R6F6-RF-W2 6-Way Pre-Wired Automotive Relay and Fuse Box is a pre-wired power distribution solution designed for the safe, organized, and centralized control of multiple auxiliary devices in 12V DC vehicle electrical systems.

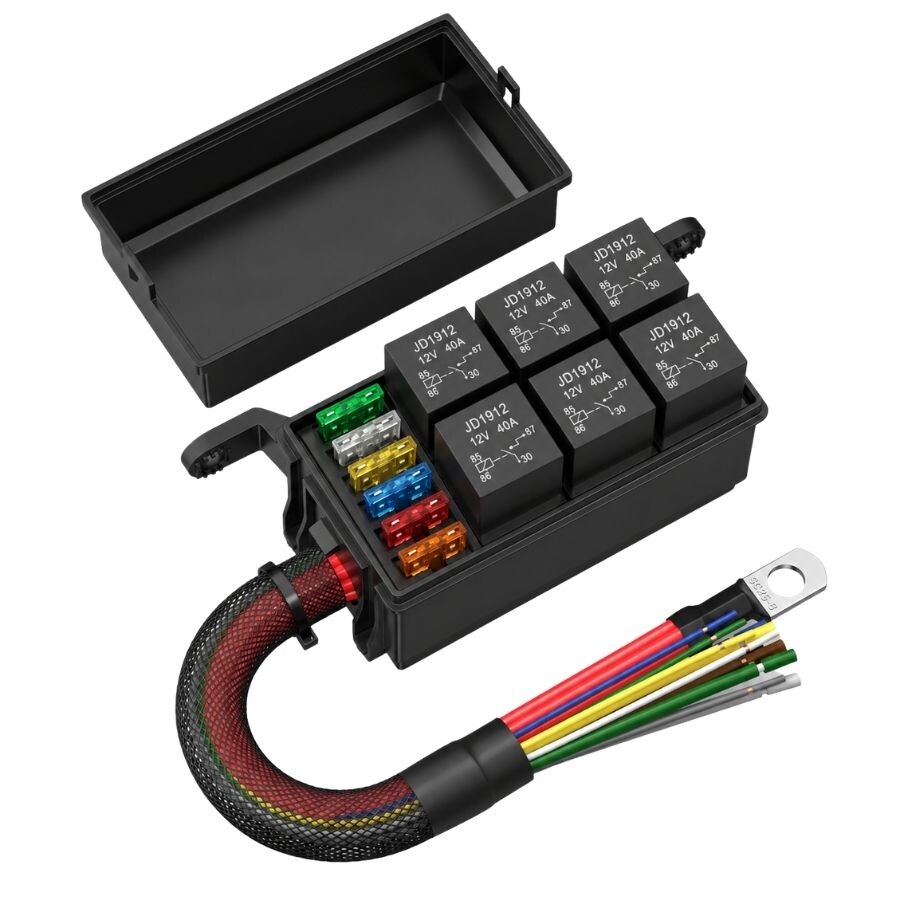

The unit features 6 relay slots and 6 fuse slots. The package includes 6 Bosch-style 4-pin relays and 6 ATC/ATO blade fuses. This allows for the neat consolidation of relay and fuse connections for various electrical components—such as headlights, horns, winches, fans, and pumps—into a single, organized box.

A key advantage of the RB-R6F6-W2 is its pre-wired design. Since the relay and fuse connections come factory-prepared, it eliminates the need to build the internal wiring from scratch.

Clearly marked relay and fuse terminals make it easier to identify the correct connection points during installation.

Specifications

• Operating Voltage: 12V DC
• Number of Fuse Slots: 6
• Number of Relay Slots: 6
• Number of Relays Included: 6
• Relay Type: Bosch-style 4-pin automotive relay
• Number of Fuses Included: 6
• Fuse Type: ATC / ATO blade fuse
• Pre-wired: Yes

Package Contents

• Relay and Fuse Box
• 1x 5A Blade Fuse
• 1x 10A Blade Fuse
• 1x 15A Blade Fuse
• 1x 20A Blade Fuse
• 1x 25A Blade Fuse
• 1x 30A Blade Fuse
• 6x 4-Pin Relay
