RB-R6F6-RF-W1 6-Way Pre-Wired Automotive Relay and Fuse Box - Includes 6 Relays + 6 Fuses

RB-R6F6-RF-W1 6-Way Pre-Wired Automotive Relay and Fuse Box - Includes 6 Relays + 6 Fuses

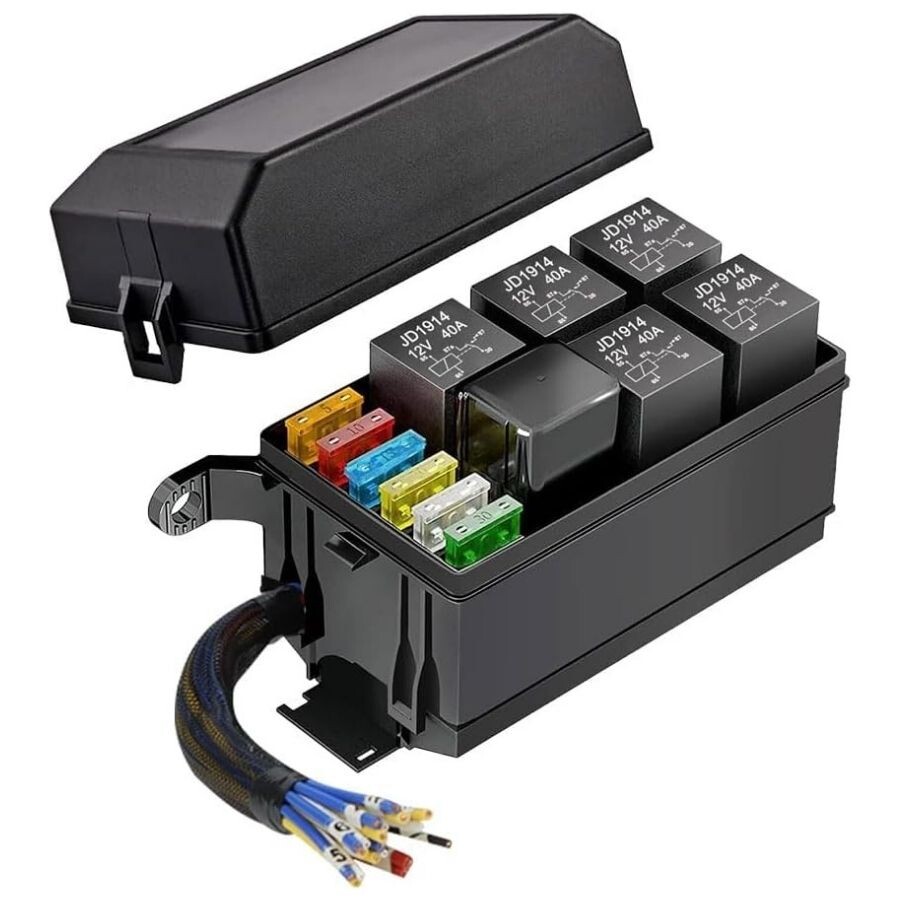

The RB-R6F6-RF-W1 6-Way Pre-Wired Automotive Relay and Fuse Box is designed to enable the safe, organized, and centralized control of auxiliary equipment within vehicle electrical systems. The unit features 6 relay slots and 6 ATO/ATC blade fuse slots. Its pre-wired configuration simplifies installation and eliminates the need to construct separate sockets or wiring harnesses.

Thanks to its pre-wired design, the relay and fuse connections are already established within the box. The user can complete the installation simply by connecting the necessary power, trigger, and load lines in accordance with the vehicle's electrical system.

This feature significantly reduces wiring clutter, especially in vehicle projects involving numerous auxiliary electrical components.

Specifications

• Product Type: Pre-wired fuse and relay box
• Operating Voltage: 12V DC

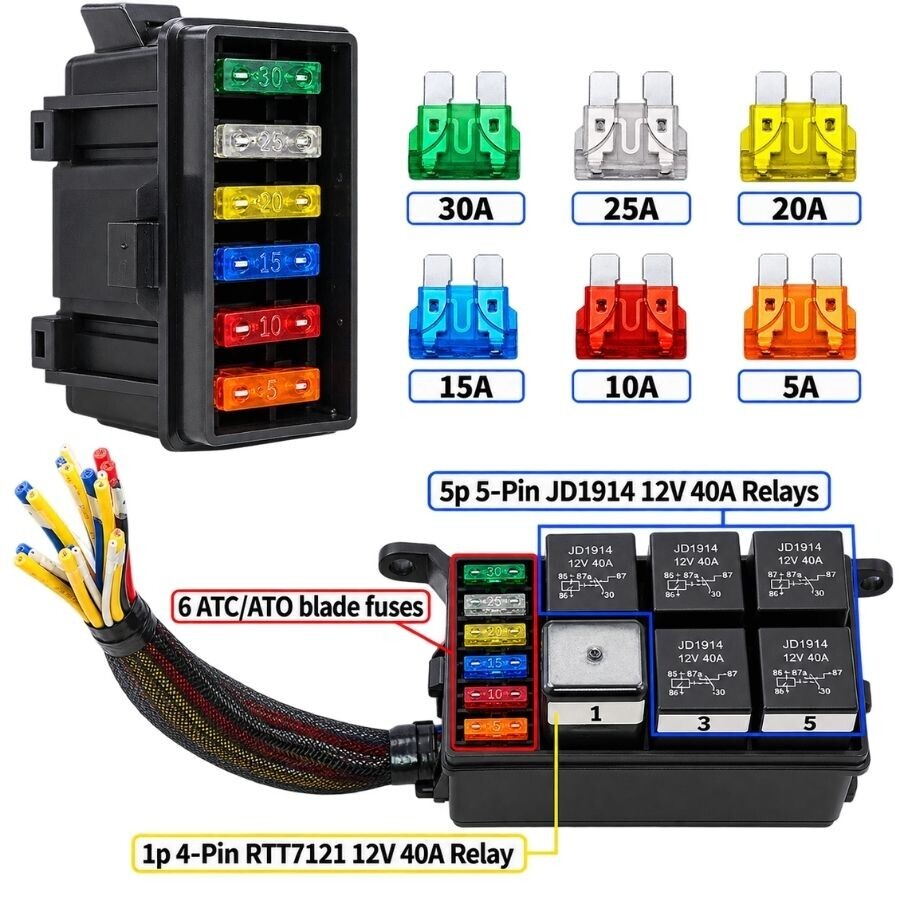

• Number of Relay Slots: 6
• Number of Fuse Slots: 6
• Fuse Type: ATO / ATC blade fuse
• Relay Current: 40A JD1914
• Relays: 5 units
• RTT7121 Relay: 1 unit
• Included Fuses: 5A, 10A, 15A, 20A, 25A, 30A
• Wiring: Pre-wired
• Housing Material: Flame-retardant nylon
• Cover: Top and bottom covers included
• Protection: Splash-proof and dust-resistant design
• Mounting Type: Surface / panel mount

Package Contents

• Relay and Fuse Box
• 1x 5A Blade Fuse
• 1x 10A Blade Fuse
• 1x 15A Blade Fuse
• 1x 20A Blade Fuse
• 1x 25A Blade Fuse
• 1x 30A Blade Fuse
• 1x 4-Pin Relay
• 5x 5-Pin Relays
