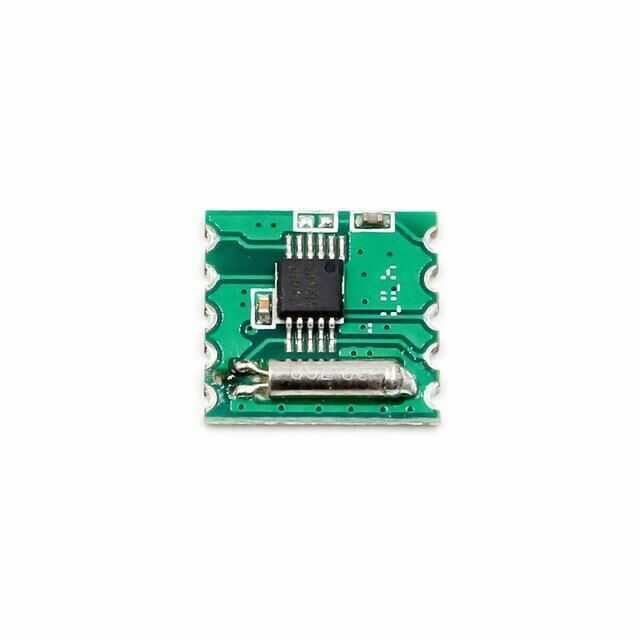

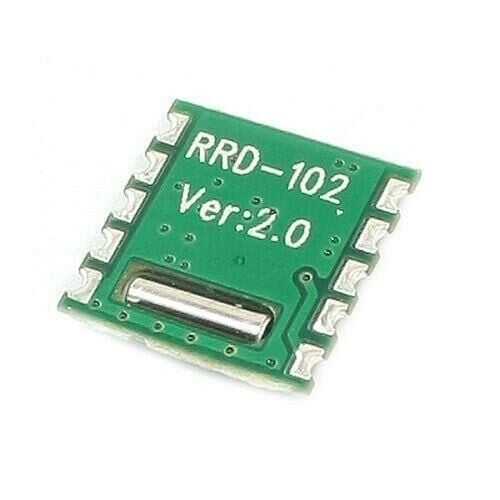

RDA5807M Arduino Fm Radio Module RRD102

RDA5807M FM Stereo Radio Module (FM Stereo radio Module) is a high sensitivity, low power consumption, ultra-small size of FM stereo radio module. RDA5807M circuit reduces the number of external components, the noise factor is minimal. It has various advantages such as small size, low power consumption, low cost, simple application. It has a wide variety of usage areas such as DVD, TV, MP3, MP4 and other built-in FM, headphones, telephone, GPS, computer.

RDA5807M Arduino Connection Diagram

RDA5807M Features:

CMOS single-chip fully integrated FM tuner
Low power consumption
Support worldwide frequency band
Support RDS/RBDS
Digital low IF tuner
Image rejection down converter
High performance A/D converter
Selectivity built-in
Fully integrated digital frequency synthesizer
Fully integrated on-chip RF and IF VCO.
Supports 2-wire bus interface only
Fully integrated on-chip loop filter
Autonomous seek tuning
32.768KHz crystal oscillator support
Digital automatic gain control (AGC)
Digital adaptive noise cancellation
Mono/stereo switch
Soft mute
High cut
Receive signal strength indicator (RSSI) and SNR
Bass Boost
Volume control and mute
Line level analog output voltage
Integrated LDO regulator.
Applications:
Mobile phones.
Portable Radios.
PDAs, Notebook .
Mobile phones, mobile phones, intercom systems, mobile radio devices stereo radio
