RT-ZS-BZ-485-12 10-28V 30dB–130dB Sound Detection Sensor - RS485

RT-ZS-BZ-485-12 10-28V 30dB–130dB Sound Detection Sensor - RS485

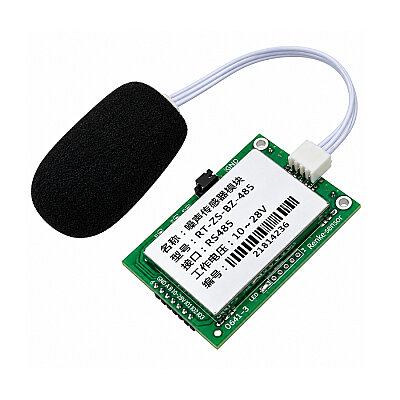

The RT-ZS-BZ-485-05 4.5–5.5V 30dB–130dB Sound Detection Sensor (RS485) is a compact dB(A) sound level measurement module designed to measure ambient noise levels in real-time and transmit the data digitally to industrial control systems.

The sensor features a high-performance, pre-polarized back-electret condenser microphone. The microphone assembly operates in conjunction with a protective foam filter to ensure stable detection of ambient noise.

A-weighting is used in measurements to produce results that approximate the frequency perception of the human ear.

Specifications

• Operating Voltage: 10–28V DC
• Current Consumption: Approx. 18.9mA @ 5V
• Output Interface: RS485
• Communication Protocol: Modbus RTU
• Serial Communication: 9600-N-8-1
• Measurement Range: 30–130 dBA
• Frequency Weighting: A-weighting
• Frequency Response Range: 20 Hz–12.5 kHz
• Accuracy: ±0.5 dB @ 94 dB / 1 kHz
• Reference Sound Pressure: 20 µPa
• Reference Calibration Point: 94 dB @ 1 kHz
• Fast Mode Response Time: Approx. 500 ms
• Slow Mode Response Time: Approx. 1.5 s
• Long-term Stability: <2%
• Microphone Type: Pre-polarized back-electret condenser microphone
• Sensor Protection: Filter / dust sponge over the microphone
• Operating Temperature: -20°C ~ +60°C
• Operating Humidity: 0–95% RH, non-condensing
• Operating Pressure: 65–106 kPa

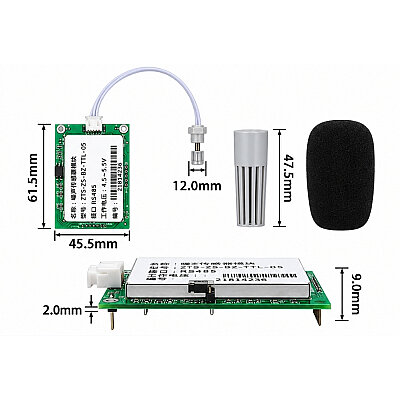

• Connector Type: 2.54 mm pin header
• Operation LED: Included
• Fast/Slow Mode Selection: Via jumper
