RT-ZS-N01-2 30dB–130dB Wall-Mounted Sound Sensor - RS485

RT-ZS-N01-2 30dB–130dB Wall-Mounted Sound Sensor - RS485

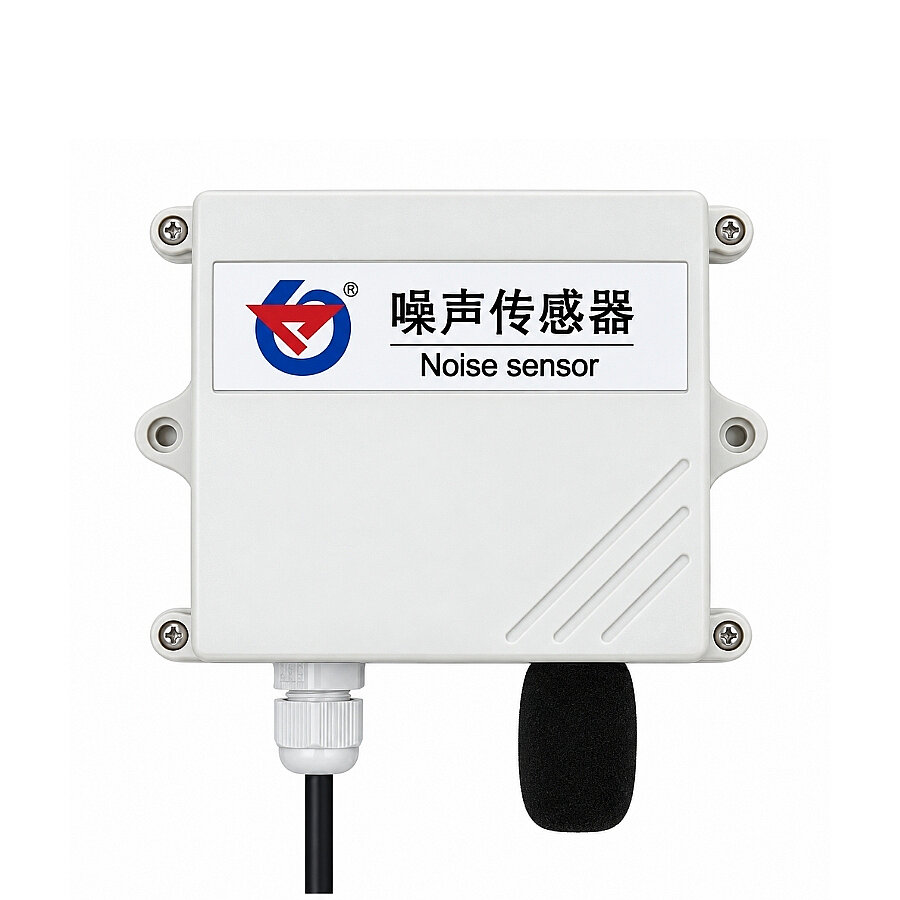

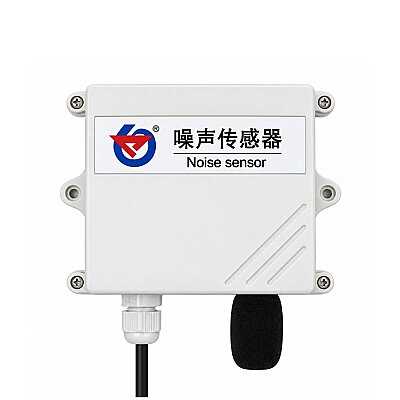

The RT-ZS-N01-2 30dB–130dB Wall-Mounted Sound Sensor (RS485) is a wall-mounted sound level transmitter featuring an RS485 Modbus RTU output; it is designed to continuously measure ambient sound pressure levels and transmit the data to industrial automation and data acquisition systems.

The sensor detects ambient sound using a high-precision condenser microphone and converts the measured noise level into a digital value in dB(A).

A-weighting is applied during measurement to obtain results that more closely match the frequency perception of the human ear.

Specifications

• Supply Voltage: DC 10–30V
• Maximum Power Consumption: Approx. 0.4W
• Output: RS485
• Communication Protocol: Modbus RTU
• Mounting Type: Wall-mounted
• Measured Parameter: Sound pressure / noise level
• Measurement Unit: dB(A)
• Measurement Range: 30–130 dB (RS485 version)
• Resolution: 0.1 dB
• Accuracy: ±0.5 dB @ 94 dB / 1kHz
• Reference Calibration Point: 94 dB @ 1kHz
• Frequency Range: 20Hz–12.5kHz
• Frequency Weighting: A-weighting
• Response Time: ≤3 seconds
• Long-term Stability: <2%
• Microphone Type: High-sensitivity condenser microphone
• Operating Temperature: -20°C ~ +60°C
• Operating Humidity: 0–95% RH, non-condensing
• Protection Class: IP65
