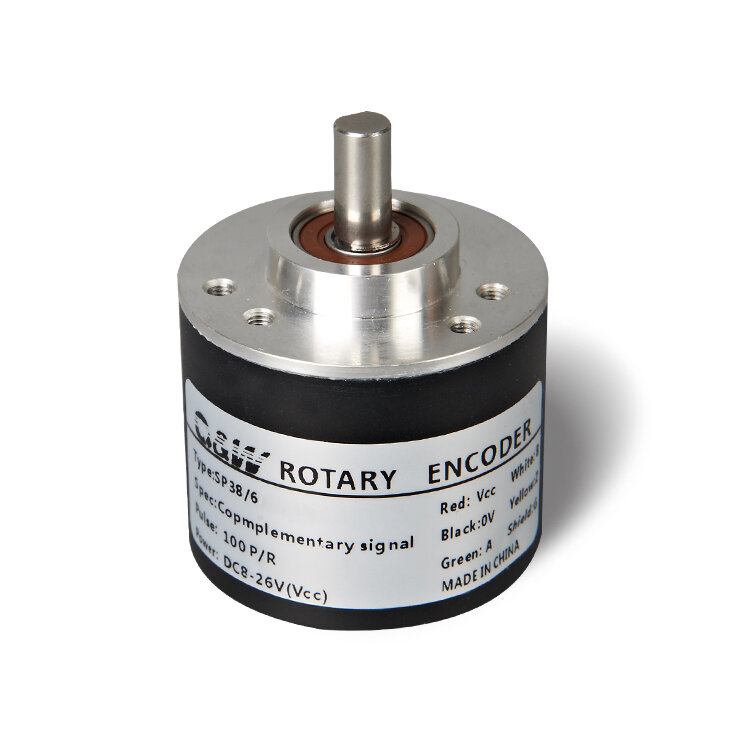

SP38-6-1000B-5-30-FG2 38mm 5-30V 1000 Pulse Rotary Encoder

SP38-6-1000B-5-30-FG2 38mm 5-30V 1000 Pulse Rotary Encoder

The SP38-6-1000B-5-30-FG2 38mm 5-30V 1000 Pulse Rotary Encoder provides a compact and durable solution designed for high-precision rotary encoder applications. It provides strong protection against environmental challenges (vibration, impact, dust), while its small size and low power consumption make it an ideal choice for industrial environments.

Features

• Voltage: 5V
• Pulse: 1000
• Cable Length: 2m
• Current Consumption: <60mA
• High Signal Electrical Level: >2.5V
• Low Signal Electrical Level: <0.5V
• Rise/Fall Time: <100ns
• Response Frequency: 150KHz
• Radial Load: <30N
• Axial Load: <20N
• Torque: ≤1 x 10ˉ³N.m
• Maximum Rotation Speed: 6000r/min
• Allowable Acceleration: 1 x 10⁴rad/s²
• Weight: approximately 100g
• Shock Resistance: 1000m/s², 6ms
• Vibration Resistance: 100m/s², 10~200Hz
• Operating Temperature: -20°C ~ +50°C
• Protection: IP50
