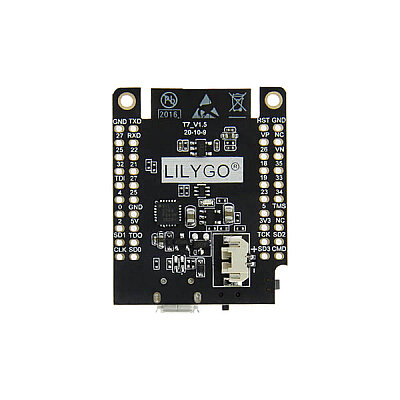

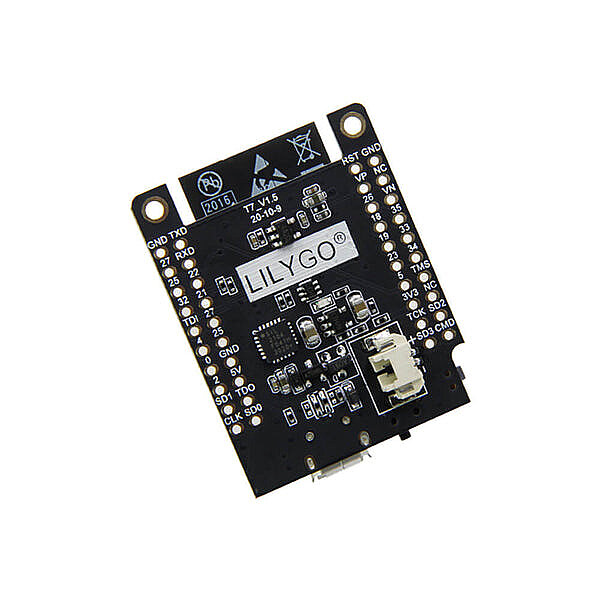

T7 Mini32 V1.5 ESP32-WROVER-B 16MB Dual-Core Wi-Fi Bluetooth Development Board
T7 Mini32 V1.5 ESP32-WROVER-B 16MB Dual-Core Wi-Fi Bluetooth Development Board
The T7 Mini32 V1.5 ESP32-WROVER-B 16MB Dual-Core Wi-Fi Bluetooth Development Board is an ESP32-based board that offers high processing power and wireless connectivity in a compact form factor. It features 16MB of QSPI Flash memory and also includes 8MB of PSRAM. Consequently, it offers advantages for ESP32 projects requiring larger firmware, web interfaces, data buffering, graphics, network applications, and significant memory resources.
At the heart of the board lies a dual-core Xtensa LX6 ESP32 processor capable of operating at up to 240MHz. Thanks to built-in Wi-Fi and Bluetooth support, it can be used in IoT, sensor, automation, and remote control applications without the need for an additional wireless module.
You can accesssample code and the user manual here.
Specifications
Hardware | |
| SKU | Q214 |
| Chipset | ESP32 240MHz Xtensa® single-/dual-core 32- bit LX6 microprocessor |
| FLASH | QSPI flash 4MB 16MB / PSRAM 8MB |
| SRAM | 520 kB SRAM |
| USB serial port chip | CH9102 |
| Button | reset |
| Modular interface | UART、SPI、 SDIO、 I2C、 LED PWM、TV PWM、I2S、 IRGPIO、 ADC、DACLNA pre-amplifier |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | About 30mA |
| Working temperature range | -40°C ~ +85°C |
| Size&weight | 40.27*31.07*8.13mm (6.42g) |
| Power Supply | Micro USB 5V/1A Jst 2pin 1.25mm |
| Wi-Fi Frequency range | 2.4GHz~2.5GHz |
Bluetooth Protocol | Meet Bluetooth |
Software | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+ Station/P2P |
| Security mechanism | WPAWPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA (Through network/host to download and write firmware) |
| Software Development | Supportcloud server development /SDK for user firmware development |
| Networking protocol | IPv4、IPv6、 SSL、 TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |

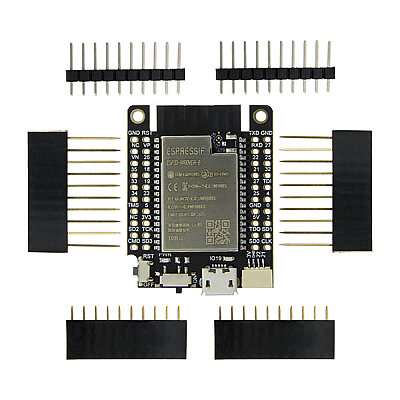

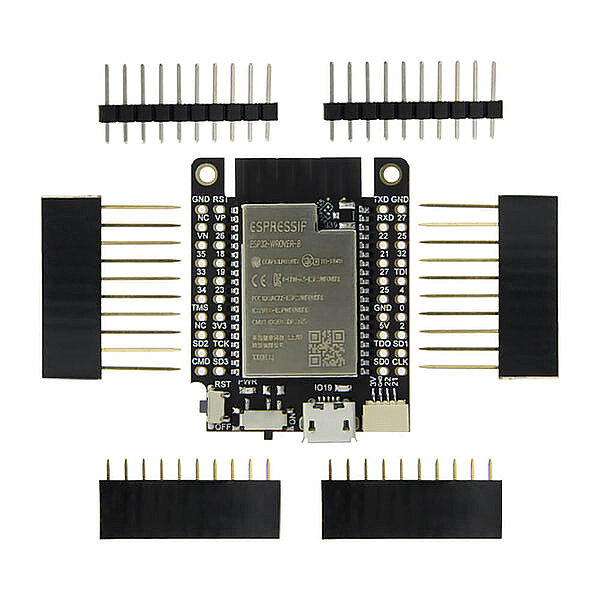

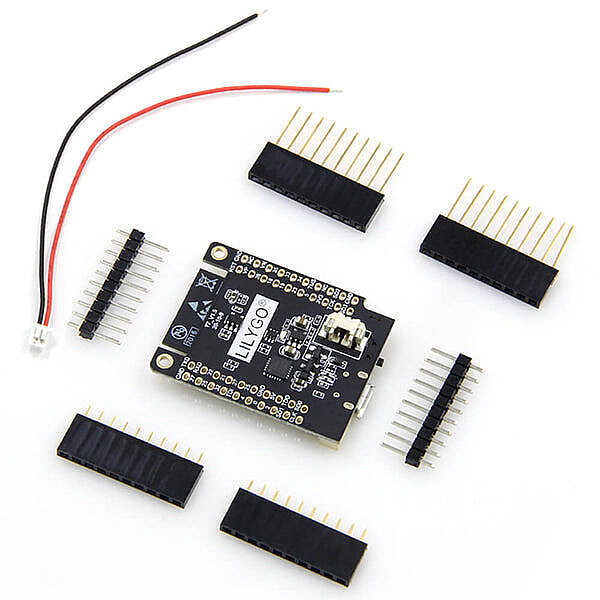

Package Content
- 1x T7 Mini32
- 6x Headers
- 1x Power cable

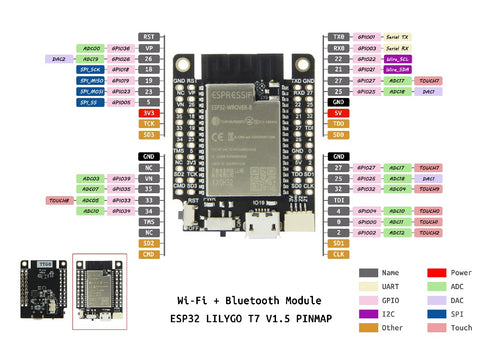

Pinout

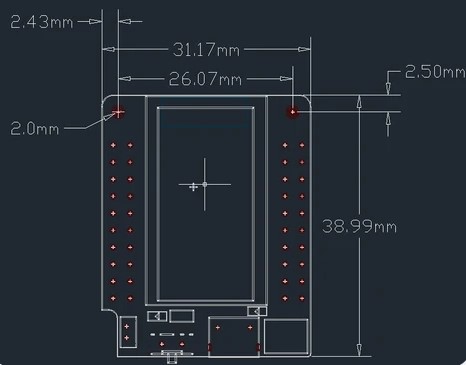

Size
