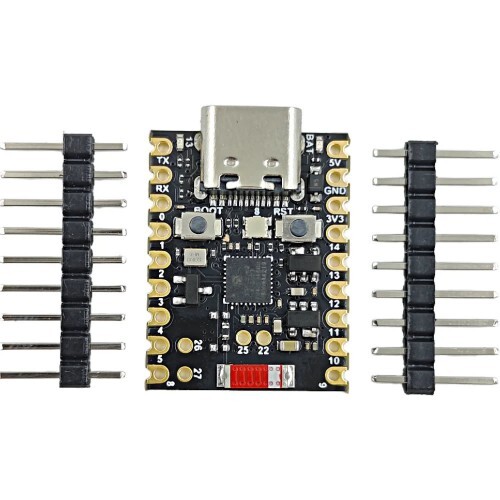

ESP32-H2 Mini Development Board

ESP32-H2 Mini Development Board

The ESP32-H2 Mini Development Board offers an ideal platform for developing Thread, Zigbee, and Matter-based IoT applications thanks to its 32-bit RISC-V processor running at 96MHz, Bluetooth 5 LE, and IEEE 802.15.4 support. Easily programmable via USB Type-C connection, the board's small size makes it ideal for use in wearable electronics, smart home devices, sensor nodes, and battery-powered projects. Compatible with Arduino IDE, ESP-IDF, and PlatformIO development environments, this board provides a powerful and flexible solution for users who want to develop next-generation wireless IoT solutions.

ATTENTION: New boards arrive unprogrammed, so the BOOT button must be held down while connecting the USB cable for the first time. In this case, the product will start working in programming mode.

ESP32-H2 Programming

The ESP32-H2 development board has rich programming support. It can be programmed with Arduino IDE (C/C++), MicroPython, CircuitPython, LUA, and other high-level programming languages. You can download Arduino IDE for free from the official Arduino website. No advanced programming knowledge is needed to get started. You can also use IDEs like Thonny to program the module with MicroPython or CircuitPython. When you plug it into your PC, one COM port and one JTAG hardware will automatically appear in the system. During the first connection, the BOOT button must be held down while plugging in the USB cable. In this case, the product starts working in programming mode.

Specifications

• Microcontroller: ESP32-H2
• Processor: 32-bit RISC-V Single Core
• Operating Frequency: 96MHz
• Flash Memory: 4MB
• ROM: 128KB
• SRAM: 320KB
• Low Power Memory: 4KB LP Memory
• Wireless Communication: Bluetooth 5 LE, IEEE 802.15.4 (Thread, Zigbee)
• Wi-Fi: Not Supported
• USB Connection: USB Type-C
• Operating Voltage: 3.3V
• Supply Voltage: 5V USB
• Dimensions: 18x25mm
