T-Dongle C5 Development Board with Display
The T-Dongle C5 Development Board with Display is a compact development board based on the ESP32-C5 microcontroller, designed in USB Type-A form factor. The ESP32-C5, with its single-core RISC-V architecture, offers a 240 MHz operating frequency and dual-band Wi-Fi 6 (2.4 GHz and 5 GHz) and Bluetooth 5.0 LE wireless connectivity. Additionally, thanks to Thread and Zigbee 3.0 support, it can be used in next-generation IoT and smart home projects.
You can access the sample code and user manual herehere.
T-Dongle C5 Technical Specifications
| SKU | K193-A |
| MCU | ESP32-C5; 2.4 and 5 GHz dual-band Wi-Fi 6 |
| Wireless Connectivity | Wi-Fi 802.11 ax/b/g/n, bluetooth5 |
| Platform | Arduino-ide, ESP-IDF |
| Onboard functions | 16MB Flash + 8MB PSRAM, TF card |
| 0.96 inch ST7735 IPS LCD |
| Full color (65k) Display, 4-Wire SPI interface |
| Resolution | 80 X 160, 0.96 diagonal |
| Model | ST7735 LCD |
| Working Power Supply | 3.3V |

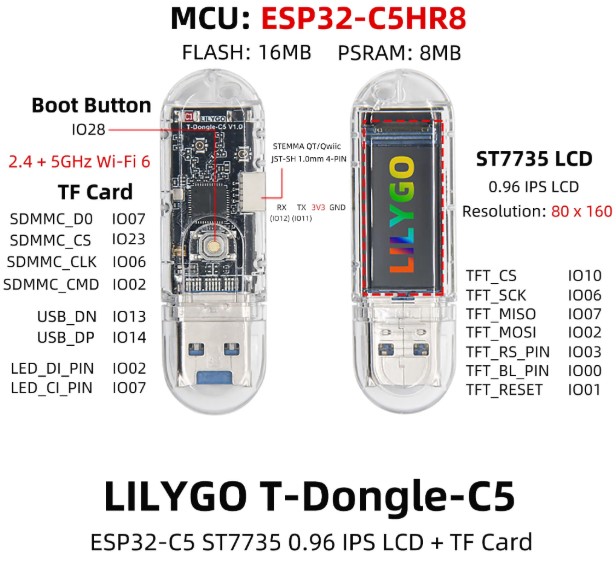

Pinout

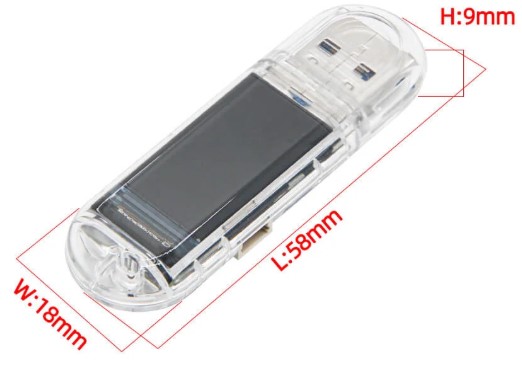

Size
