T-Camera Plus S3 OV5640 ESP32-S3 TTGO Development Board

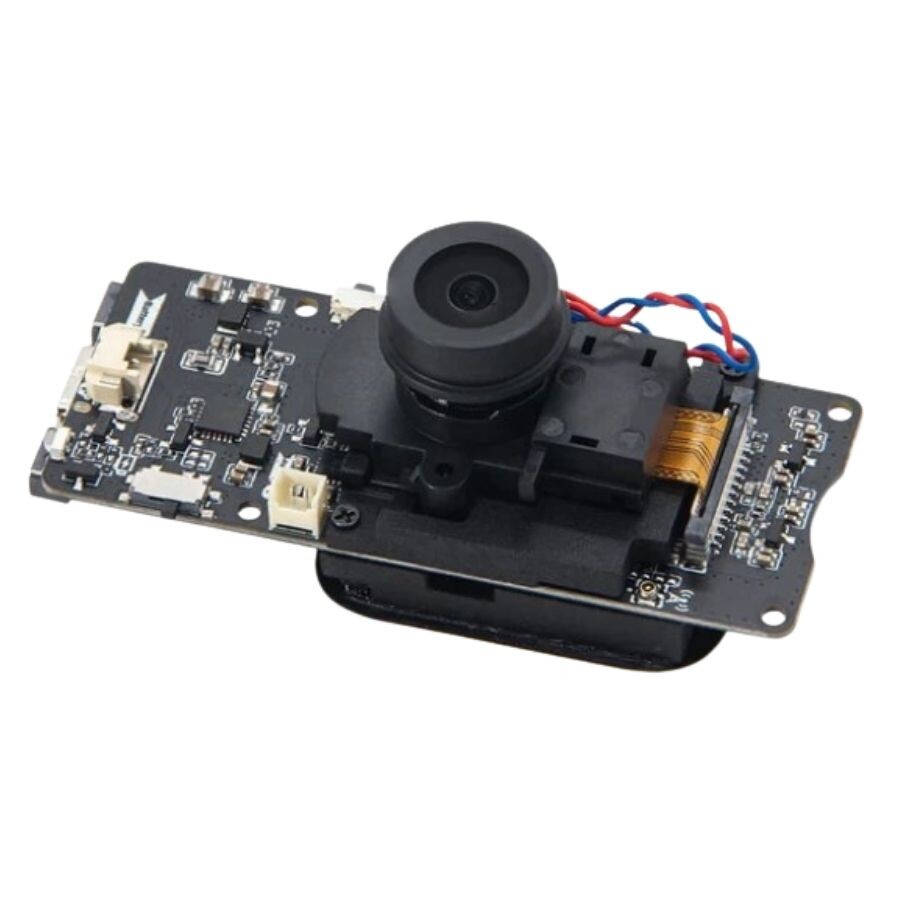

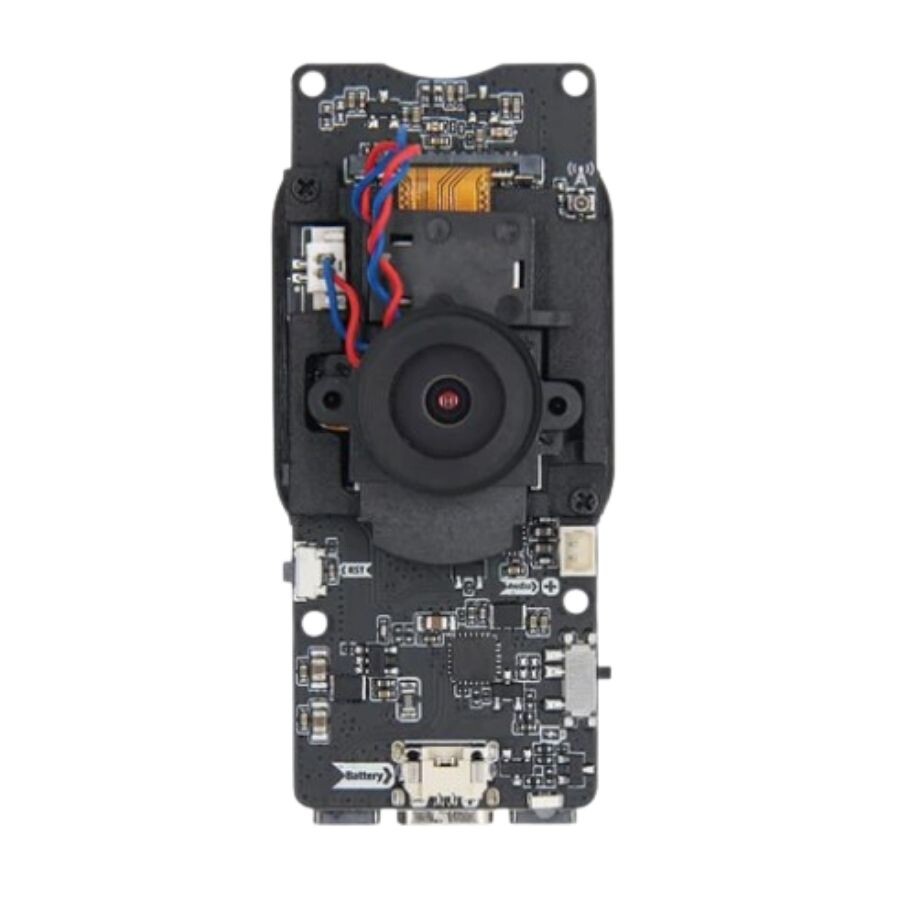

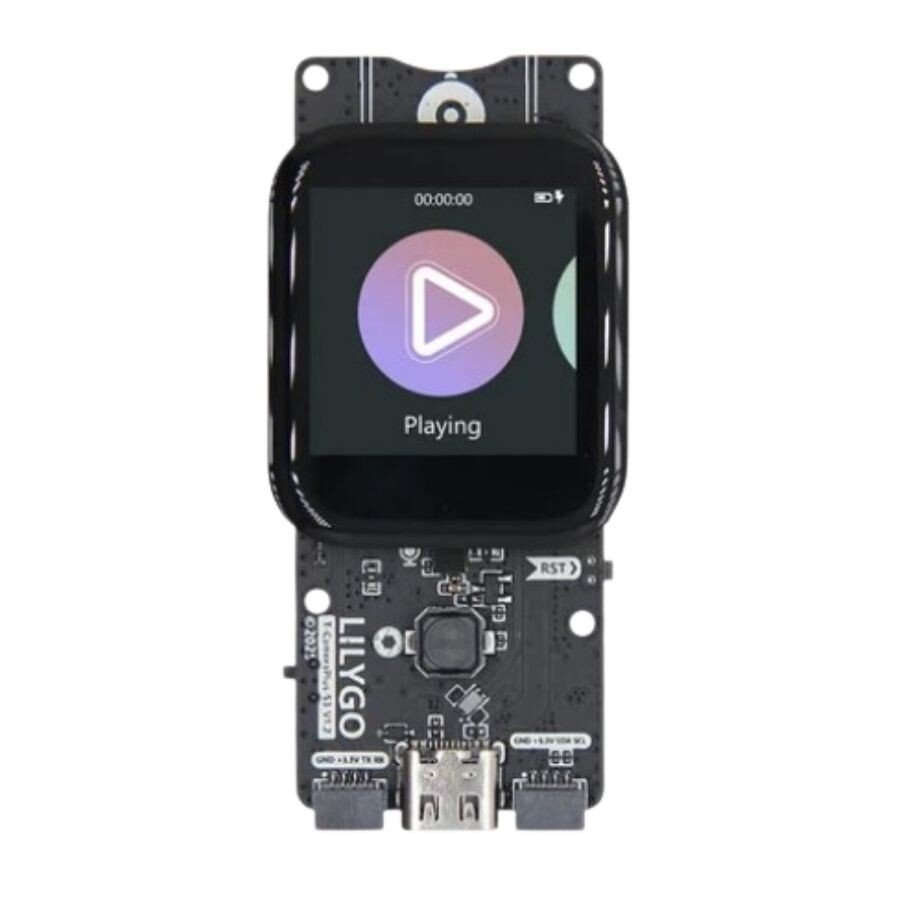

The T-Camera Plus S3 OV5640 ESP32-S3 TTGO Development Board is a smart camera module developed based on the ESP32S3 chip, featuring a 240x240 TFT screen, digital microphone, speaker, independent button, power control chip, SD card module, etc. It comes with a basic user interface written in LVGL and can perform functions such as file management, music playback, recording, and camera projection (if the factory hasn't written a program, you need to manually install the user interface program called "Lvgl_UI").
You can find other T-Camera Plus models here.
You can find sample code and the user manual here.
You can reach it from "noreferrer">here.
T-Camera Plus S3 Technical Specifications
| SKU | H703-01 |
| MCU | ESP32-S3R8 Dual-core Xtensa LX7 CPU |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5+ BT mesh |
| Programming Platform | Arduino-ide、VS Code |
| Onboard Function | Microphone + MAX98357A + Speaker |
| PSRAM | 8MB |
| Flash | 16MB |
Package Content
- 1x T-Camera Plus S3
- 1x Speaker (FUET 2112)
- 1x Power Cable (JST 2P 1.25mm)
- 1x Wifi/Bluetooth Antenna (with IPEX 3rd generation connector)
Pinout
