ESP32-H2 Mini Development Board

ESP32-H2 Mini Development Board

The ESP32-H2 Mini Development Board is an entry-level RISC-V microcontroller development board with integrated BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It features multiple peripheral interfaces with its compact size and powerful performance. It is suitable for smart home, industrial automation, healthcare, consumer electronics, and other applications.
It uses the ESP32-H2FH4S module, equipped with a RISC-V 32-bit single-core processor with a main frequency of up to 96MHz and 4MB of internal Flash memory; It integrates a rich array of peripherals, including SPI, UART, I2C, I2S, LED PWM, ADC, and other interfaces, making it easier to use and expand various peripheral modules.
It comes with online examples and tutorials for the ESP-IDF development environment, so you can easily and quickly get started and apply it to the product.

User Manual

Features

• SKU: 32660
• Equipped with the ESP32-H2FH4 chip, featuring a RISC-V 32-bit single-core processor running at speeds up to 96 MHz.
• It has integrated 320 KB SRAM, 128 KB ROM, 4 KB LP memory, and 4 MB Flash memory.
• Integrated Bluetooth LE wireless communication with excellent RF performance and IEEE 802.15.4 technology.
It has.
• The USB Type-C interface eliminates concerns about plug orientation.
• It offers a rich array of peripheral interfaces; For strong compatibility and expandability
• Compatible with the pins of the ESP32-H2-DevKitM-1 development board.
• Locked module design allows direct soldering and integration into user-designed carrier boards.
• Supports multiple low-power operating states balancing communication distance, data rate, and power consumption to meet the power needs of various application scenarios.

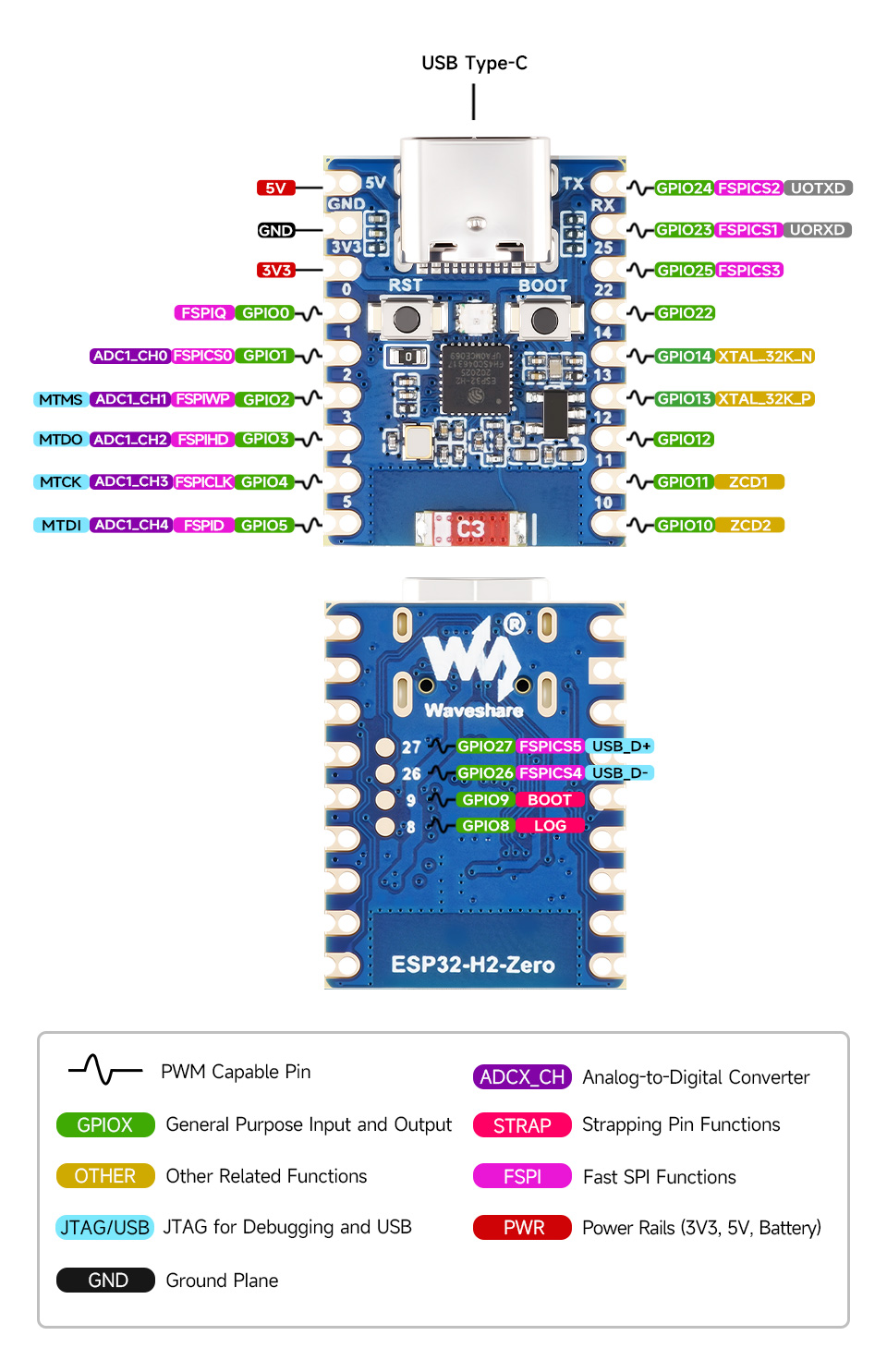

Pinout

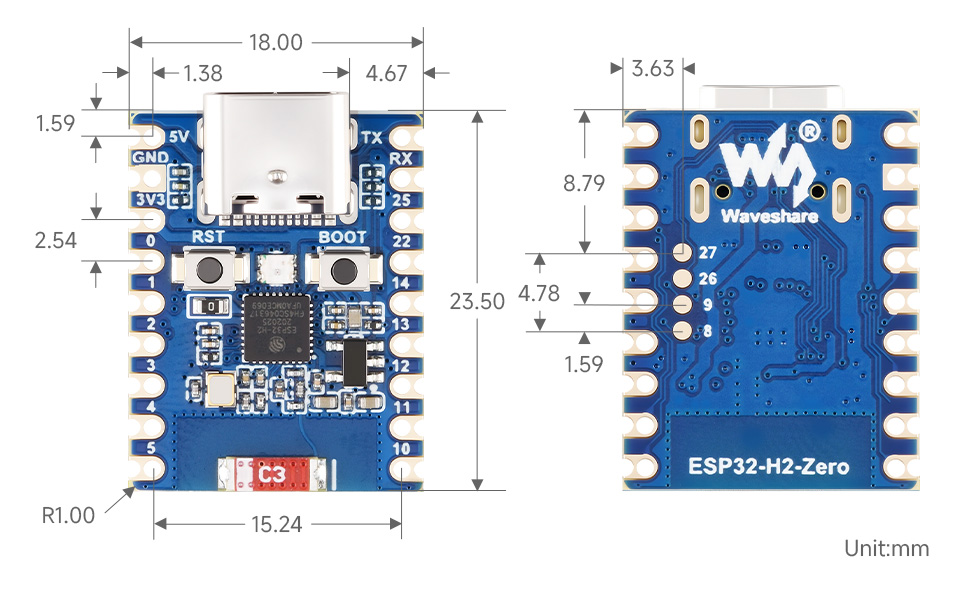

Size
