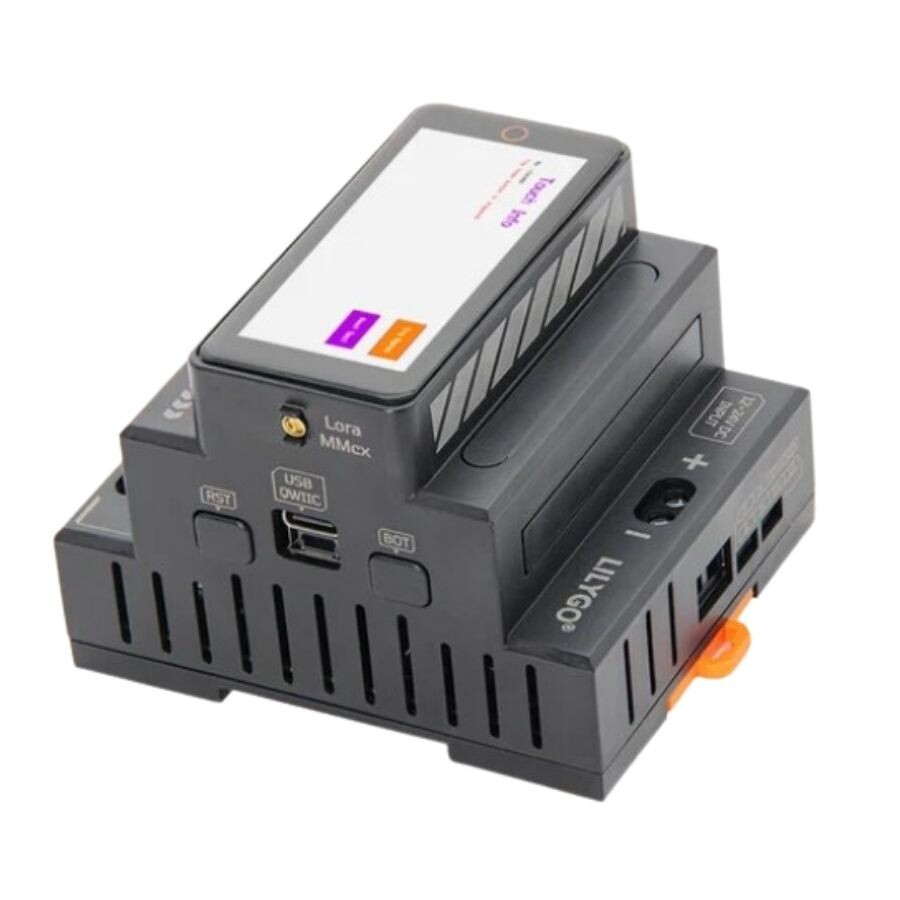

T-Connect Pro SX1262 868MHz LoRa Industrial Control Development Board - with Display
The T-Connect Pro SX1262 868MHz LoRa Industrial Control Development Board - with Display is a product consisting of three stacked circuit boards based on the ESP32S3 main control chip. It has a wide range of functions and is equipped with three different communication modules (CAN, RS485 and RS232) that enable long-distance data transmission. The product includes an Ethernet interface, a relay interface and a LoRa module (SX1262). It also comes with an LCD screen for easier use.
You can find other T-Connect Pro models here.
You can find sample code and the user manual here.

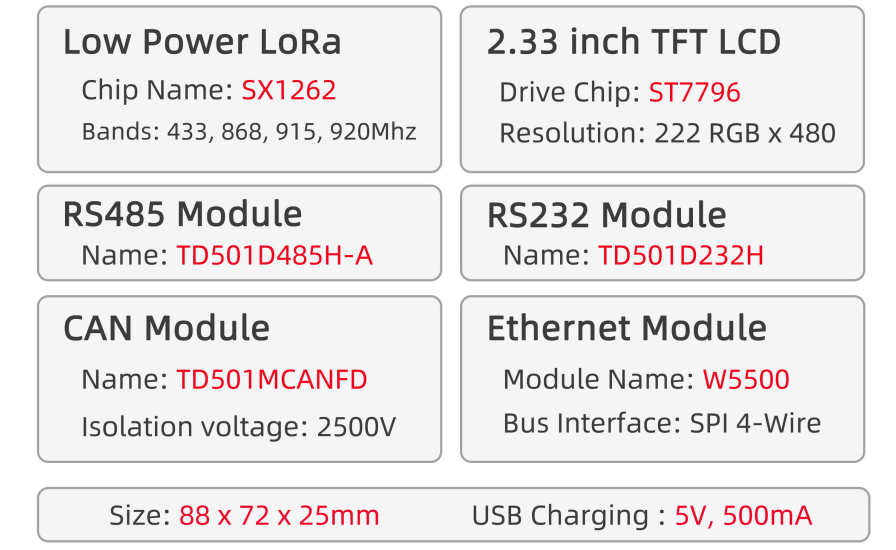

T-Connect Pro Technical Specifications
| SKU | H761-01 |
| MCU | ESP32-S3-R8 |
| Flash | 16MB |
| PSRAM | 8MB |
| Programming platform | Arduino-IDE, VS Code |
| Onboard functions | Relay, Capaitive Touch, DC input |
Package Content
- 1x T-Connect Pro
- 1x Antenna

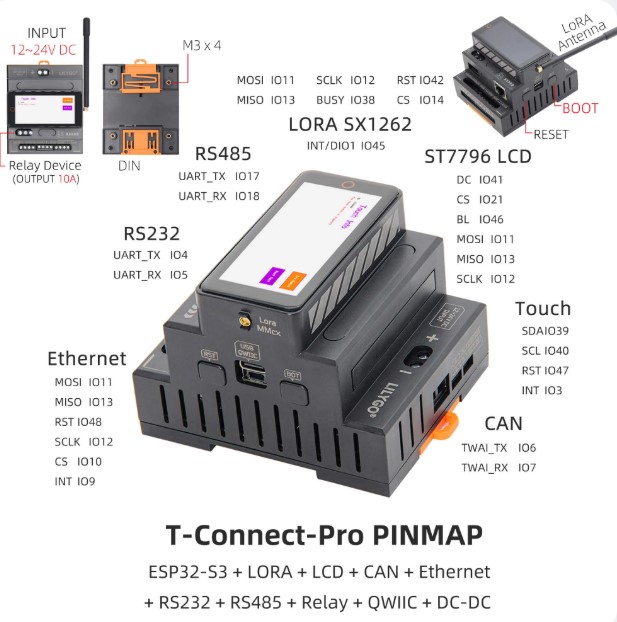

Pinout

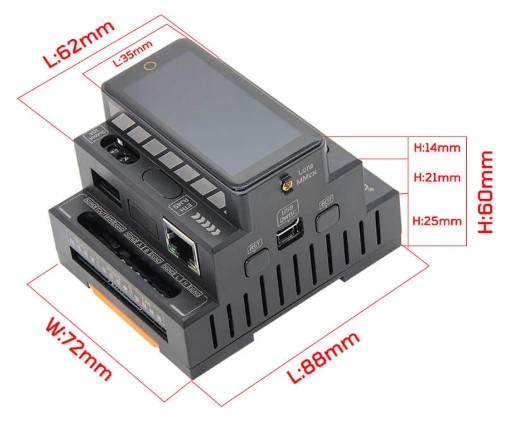

Size
