ESP32-S3 ETH Development Board

ESP32-S3 ETH Development Board

The ESP32-S3 ETH Development Board is an ETH development board based on the ESP32-S3R8; it supports Wi-Fi and Bluetooth wireless communication, offers reliable and efficient wired Ethernet connectivity, and optionally has PoE functionality. Its built-in camera interface supports OV5640 and other common cameras for image and video capture. It is compatible with Pico headers and can be used with some Raspberry Pi Pico HATs. Based on the rich ecosystem and open-source resources of the ESP32, users can quickly begin secondary development work. Suitable for Internet of Things, image capture, smart home and other artificial intelligence projects.

User Manual

Features

• SKU: 28972
• Uses a high-performance ESP32-S3R8 chip with an Xtensa 32-bit LX7 dual-core processor capable of operating at 240 MHz.
• Includes integrated 512 KB SRAM, 384 KB ROM, 8 MB PSRAM and 16 MB Flash memory.
• Features integrated 2.4 GHz Wi-Fi and Bluetooth 5 (LE) wireless communication capability and a built-in antenna. Supports switching to external antenna usage
• Built-in W5500 Ethernet chip to expand 10/100Mbps network port via SPI interface
• Optional PoE module to realize Power over Ethernet (PoE) function (IEEE 802.3af compliant)
• Built-in camera interface, supports OV5640 and other mainstream cameras for image and video capture
• Built-in USB Type-C port for power supply, program download and debugging, more convenient for development use
• Built-in TF card slot for storing pictures or files on an external TF card
• Compatible with Pico header, built-in multiple peripheral interfaces, offers strong compatibility and expandability

Package Contents

• ESP32-S3-ETH x1
• 20PIN male pin header (black) x2

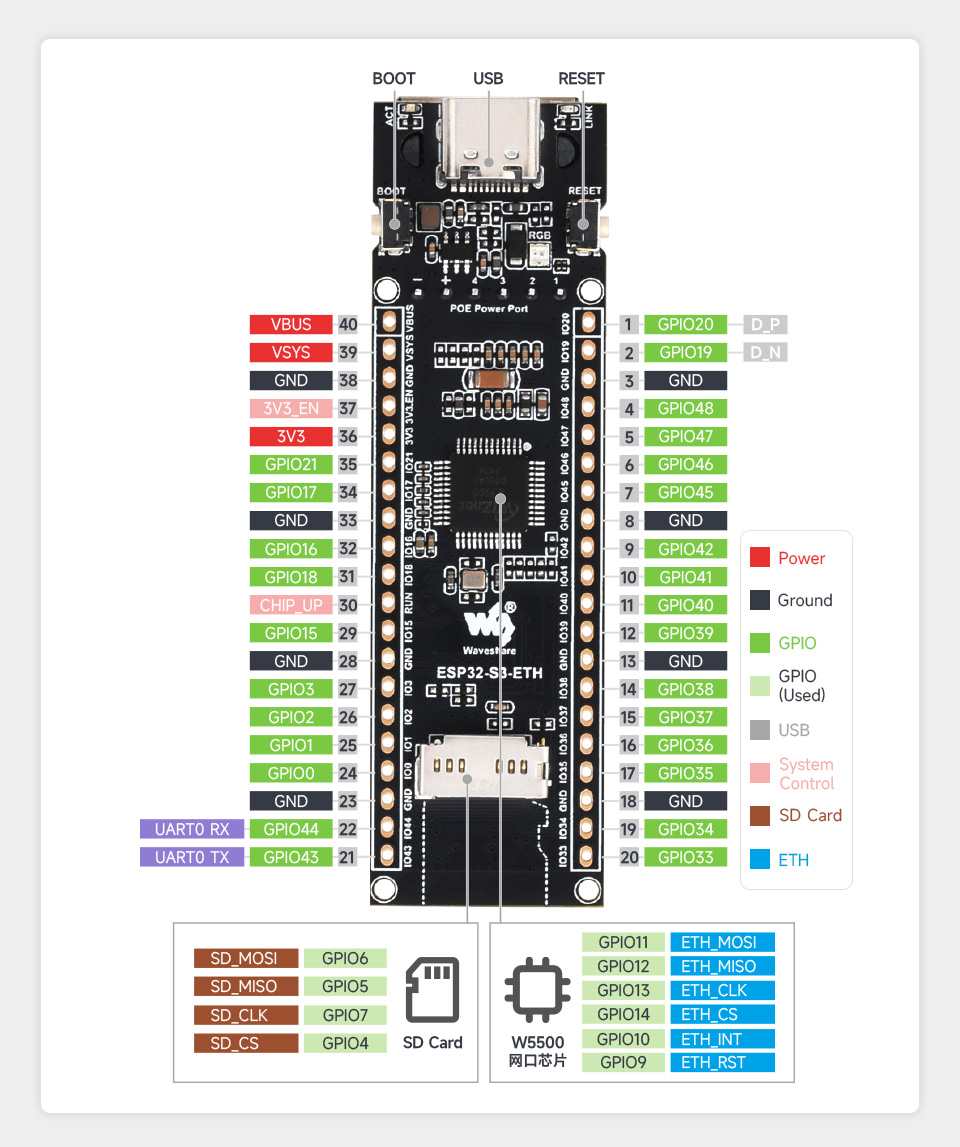

Pinout

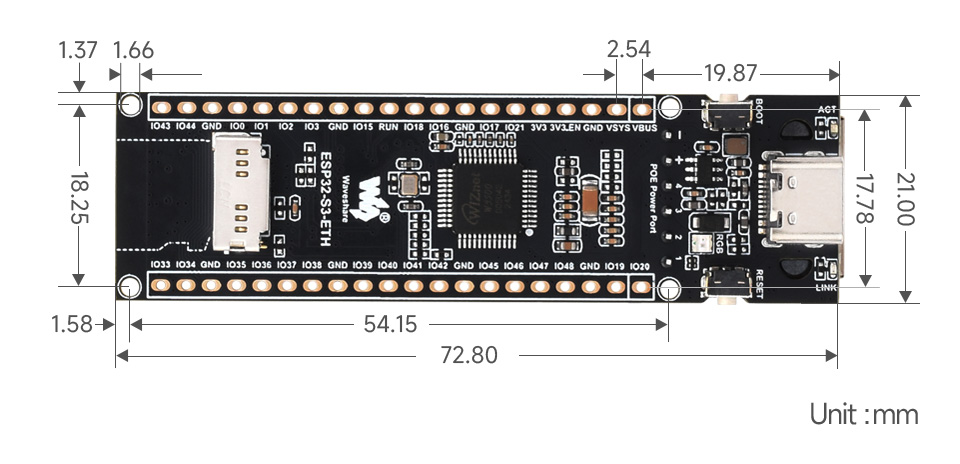

Size
