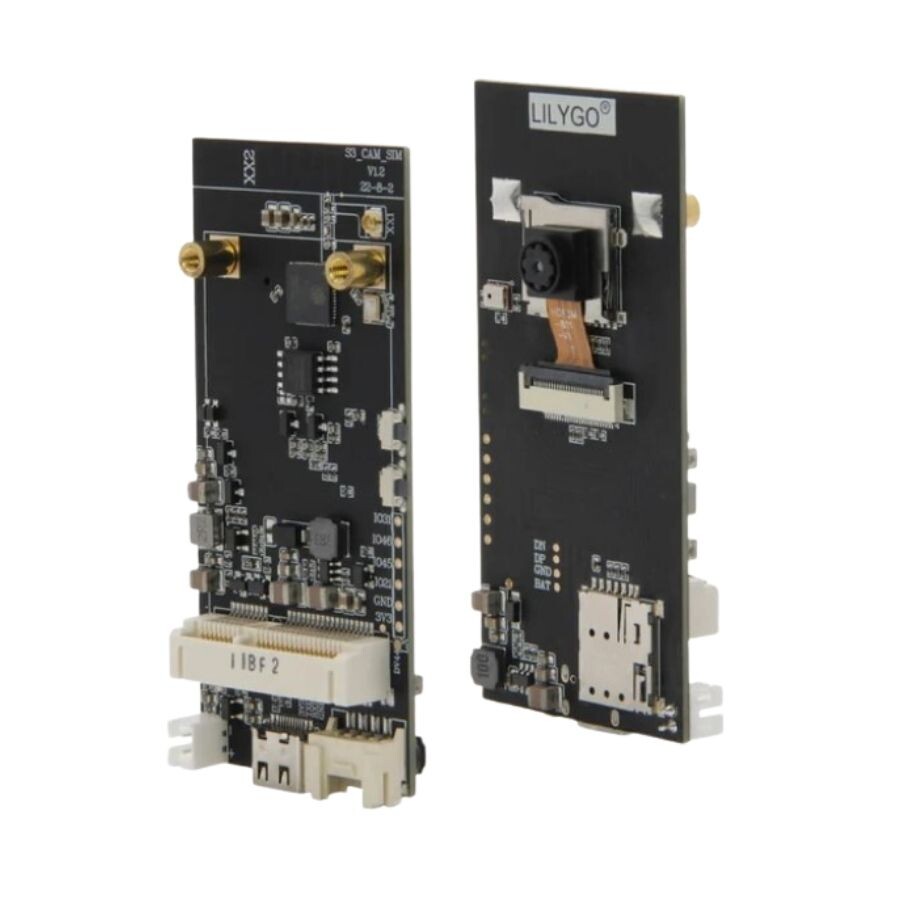

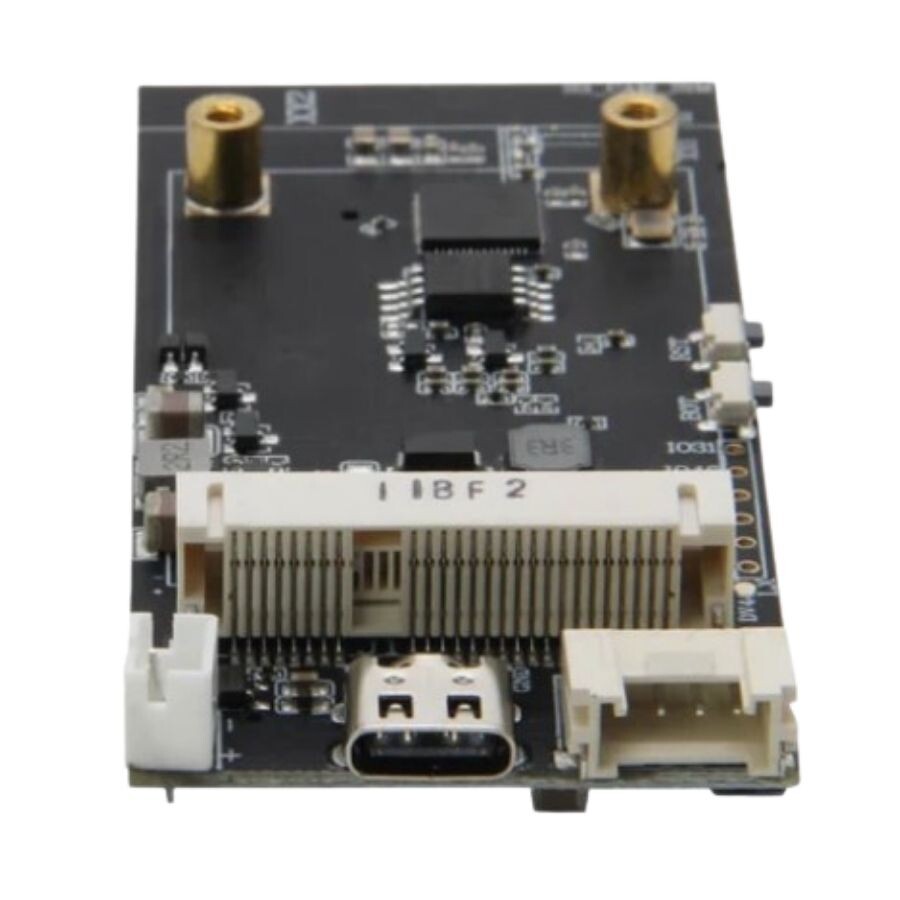

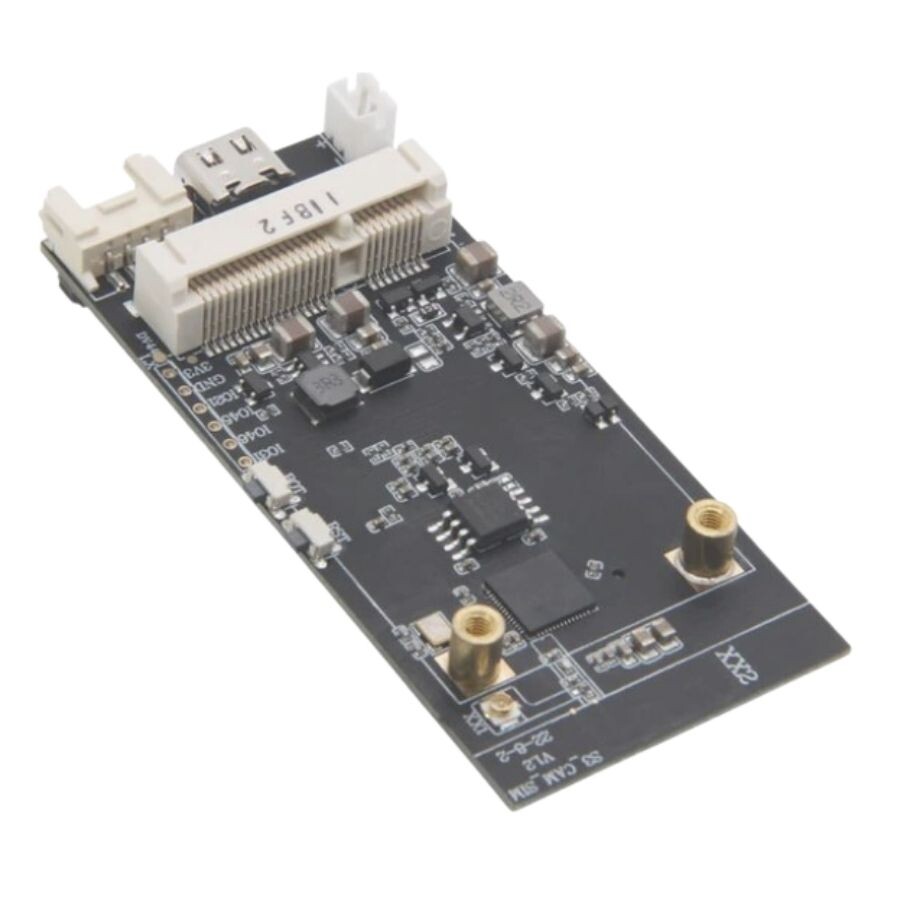

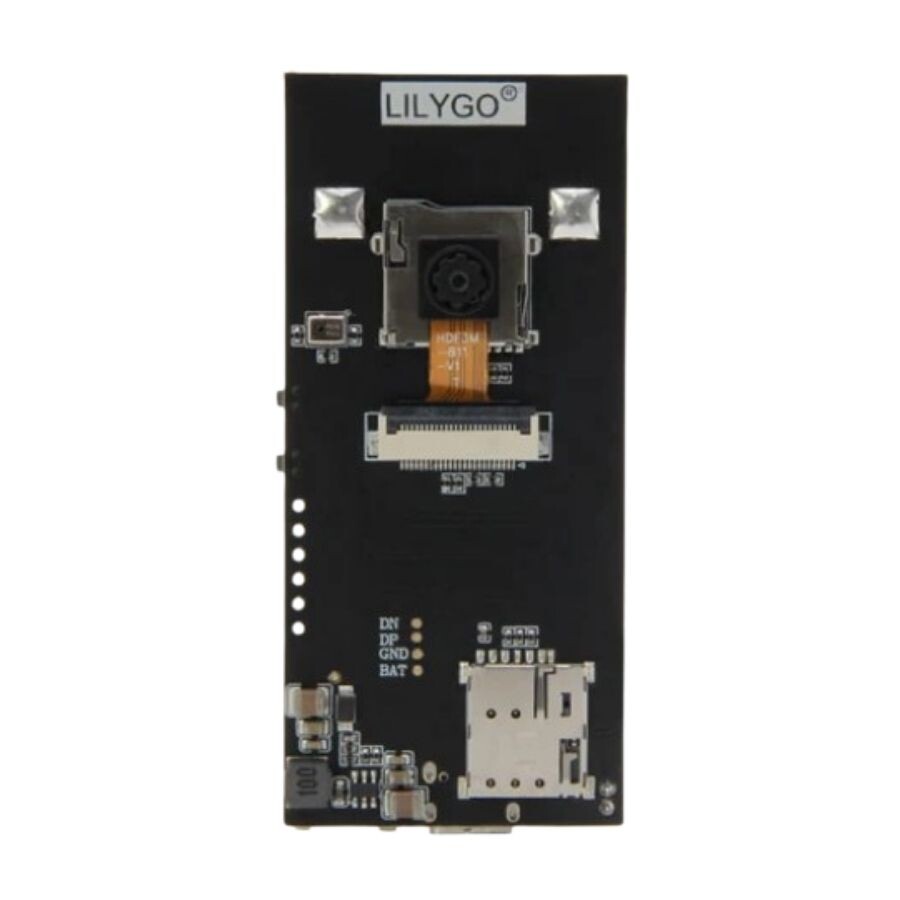

T-SIMCAM ESP32-S3 CAM OV5640 Development Board
The T-SIMCAM ESP32-S3 CAM OV5640 Development Board is a compact development board designed for IoT applications requiring image acquisition and data transmission over cellular networks. At the heart of the card is a 240 MHz dual-core ESP32-S3, while it also features an OV5640 camera, a Nano SIM card slot, an I2S MEMS microphone, and a Mini PCIe (mPCIe) modem slot.
You can find sample code and the user manual here.
T-SIMCAM ESP32-S3 Technical Specifications
| SKU | H677 |
| MCU | ESP32-S3R8 |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5+ BT mesh |
| Programming Platform | Arduino-ide, VS Code |
| Onboard functions | Boot + Reset Button, TF Card |
| PSRAM | 8MB |
| FL ASH | 16MB |
| 0V5640-Camera module | |
| Pixels | 5 Million Voltage: 3.3V |
| Dual-core LX7 microprocessor |
| 12S Digital Microphone Low Power mode, high performance, and reliability. |
Package Content
- 1x T-SIMCAM
- 1x JST 2.0mm 2P
- 2x Screw
- 1x 2.54mm Male Header (1*6P)

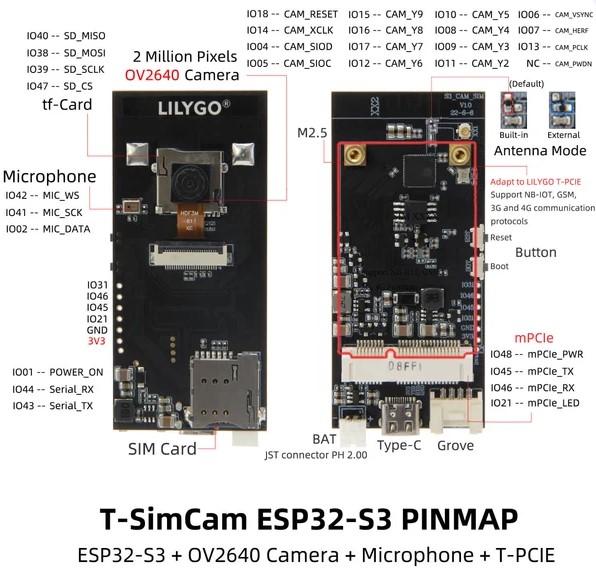

Pinout

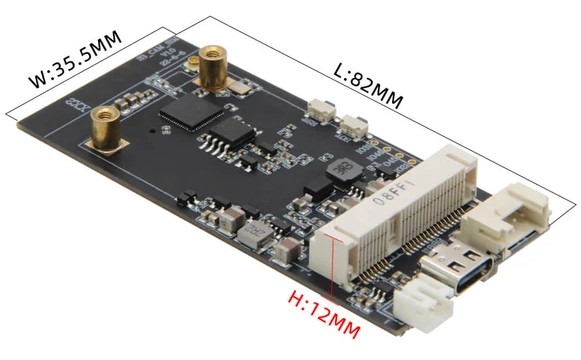

Size
