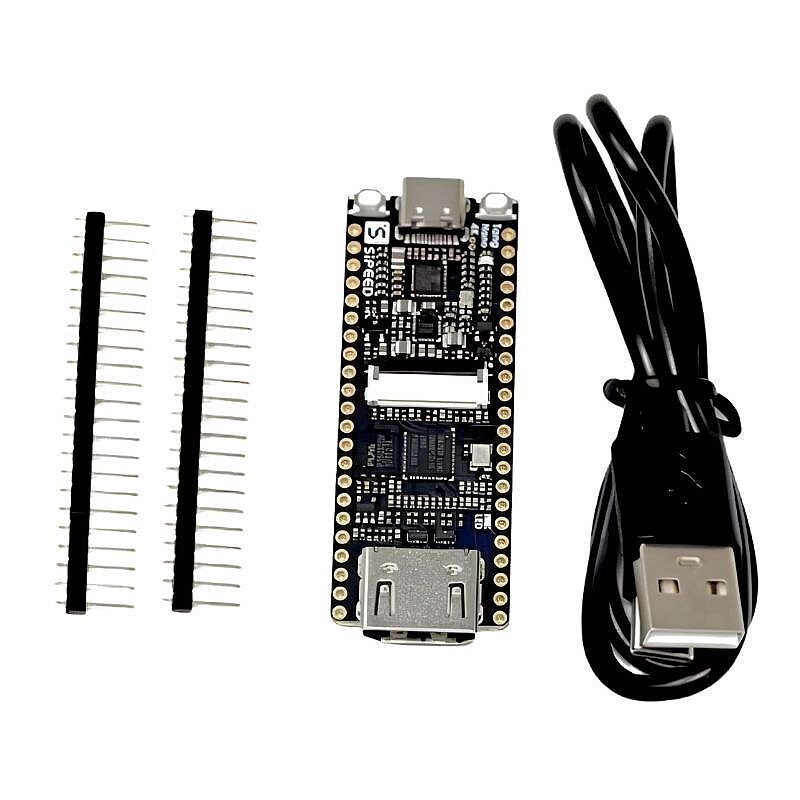

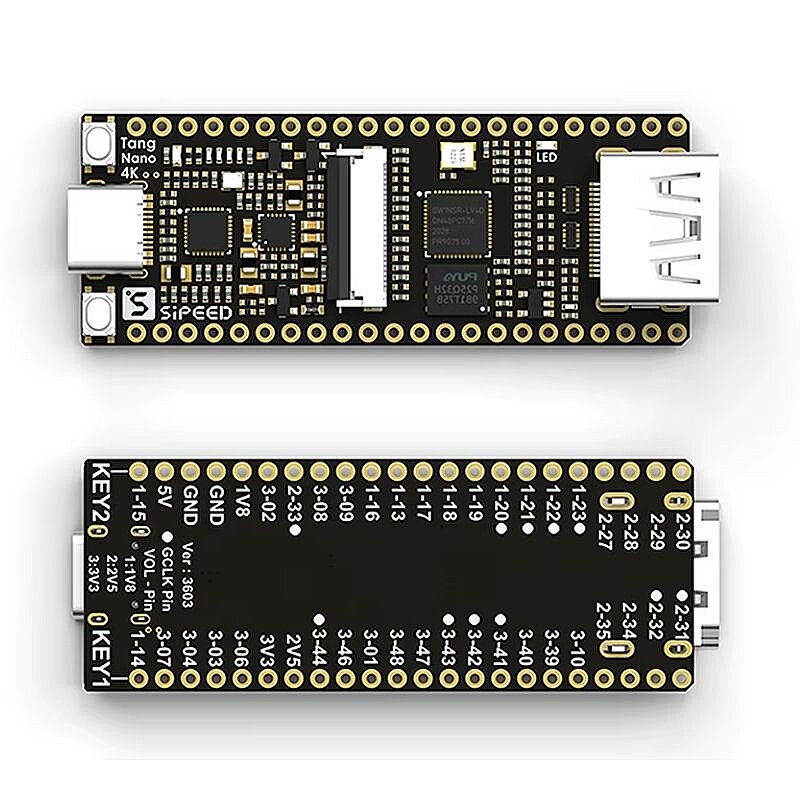

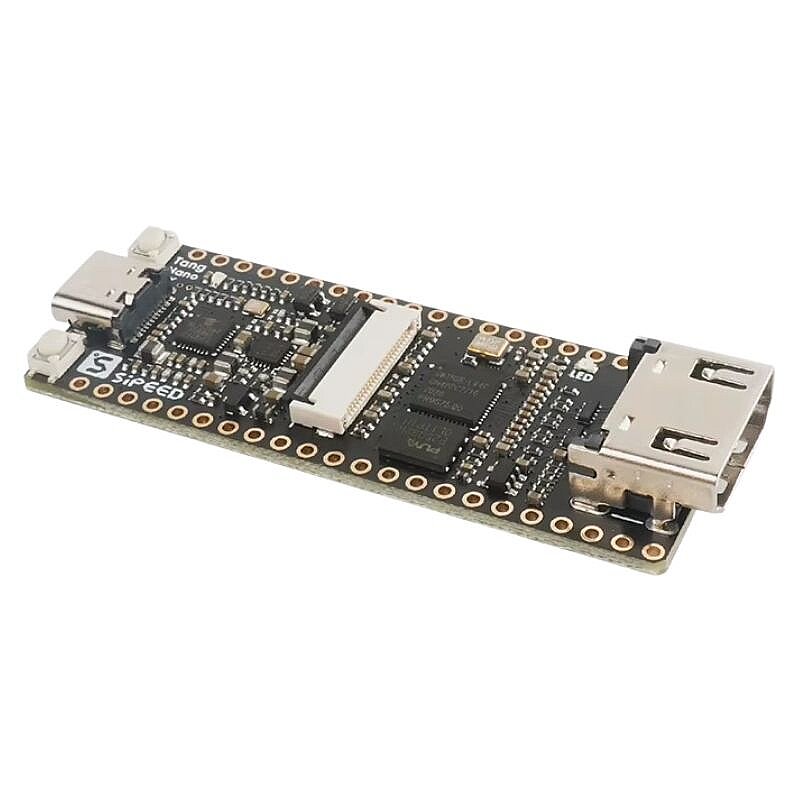

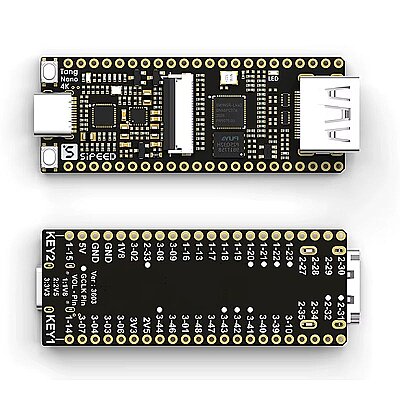

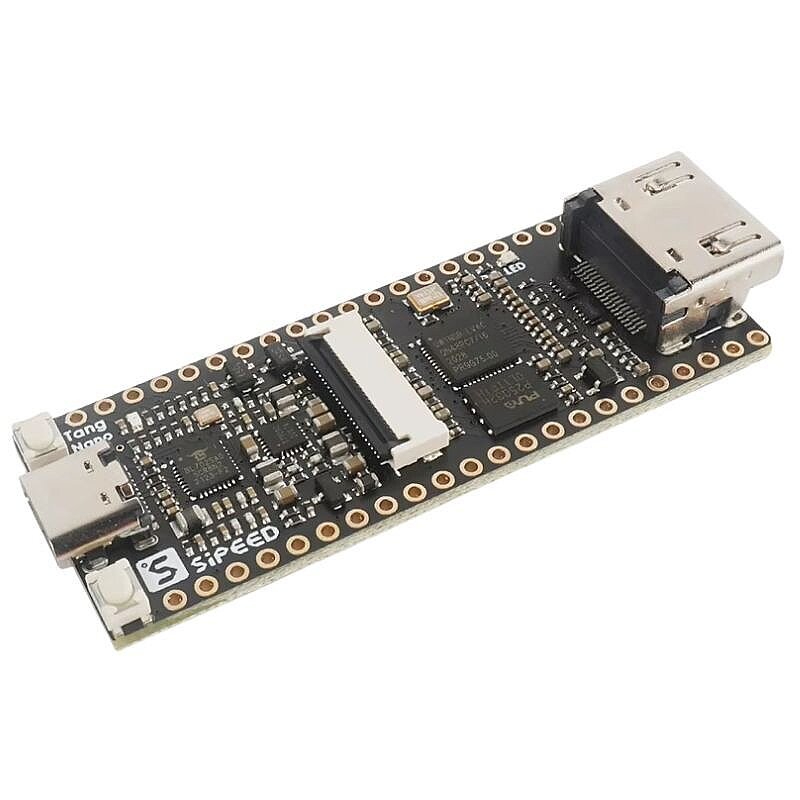

Tang Nano 4K FPGA Development Board
Tang Nano 4K FPGA Development Board
The Tang Nano 4K FPGA Development Board is a development board designed based on the Gowin little-bee GW1NSR-LV4CQN48PC6/I5 FPGA chip. The board is equipped with a camera interface and an HDMI interface. It also features a built-in USG-JTAG debugger, making it easy for users to operate.
Equipped with a Cortex-M3 processor, the Tang Nano 4K is not only suitable for FPGA development but also facilitates MCU work. The board's compact size and comprehensive features make it perfect for a wide range of projects, from simple DIY electronics projects to more complex embedded systems. Whether you're a hobbyist, a student, or a professional developer, Tang Nano 4K offers the perfect platform to explore FPGA and MCU development in a cost-effective and user-friendly way.
Features
| model | Tang Nano 1K | Tang Nano 4K |
|---|---|---|
| FPGA chip | GW1NZ-LV1 | GW1NSR-LV4C |
| logic units | 1152 | 4608 |
| Register | 864 | 3456 |
| Hard processor | none | ARM Cortex M3 |
| Block SRAM(bits) | 72K | 180K |
| Number of PLL | 1 | 2 |
| Number of I/O Bank | 4 | 4 |
| Number of users I/O | 48 | 44 |
| Screen interface | 40P RGB LCD interface | HDMI interface |
| camera interface | None | DVP interface |
| To You | 58.4mm*21.3mm | 60mm*22.86mm |

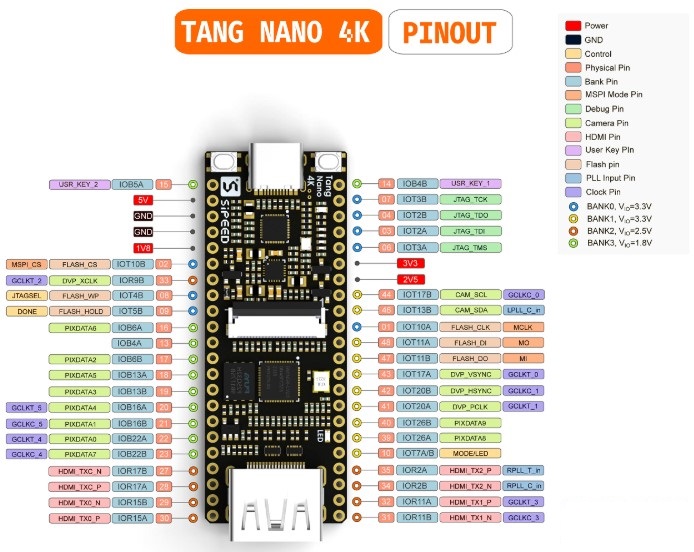

Pinout
