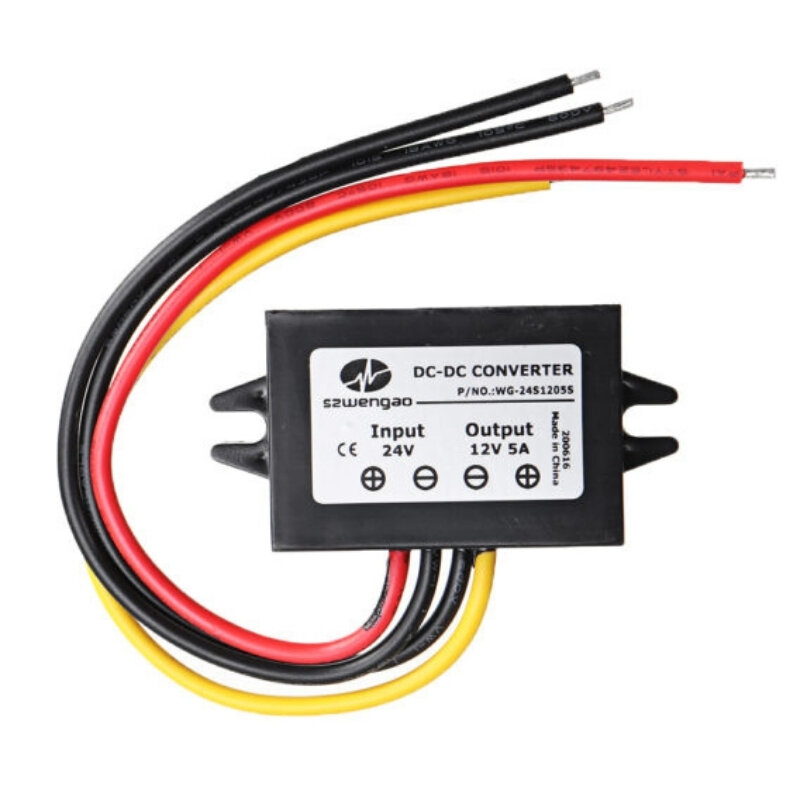

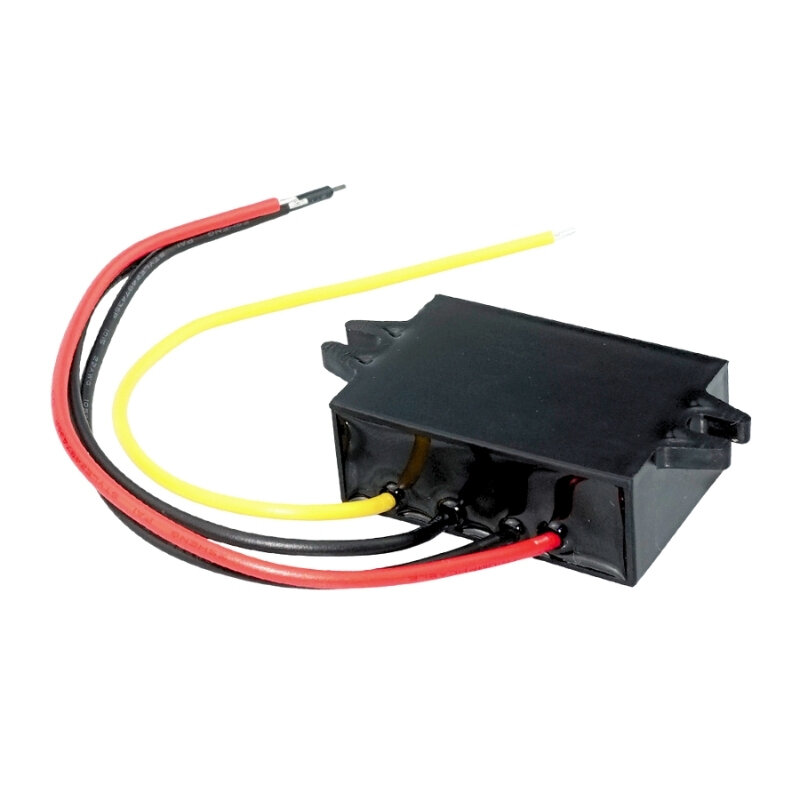

WG-24S1205P DC-DC 24V to 12V 5A Voltage Reducer Module

WG-24S1205P DC-DC 24V to 12V 5A Voltage Reducer Module

The WG-24S1205P DC-DC 24V to 12V 5A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Application Areas

• Automotive electronics (cars, forklifts, golf carts)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunications Equipment
• Marine applications (boat, yacht)
• LED and low-voltage electronic systems
• Medical and field equipment

Specifications

• Model: WG-24S1205P
• Supply Voltage: 18-40V DC (recommended 24V DC)
• Conversion Efficiency: 96%
• Output Voltage: 12V DC
• Output Current: 5A maximum
• Output Power: 60W
• Tolerance: < %1
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 18AWG
