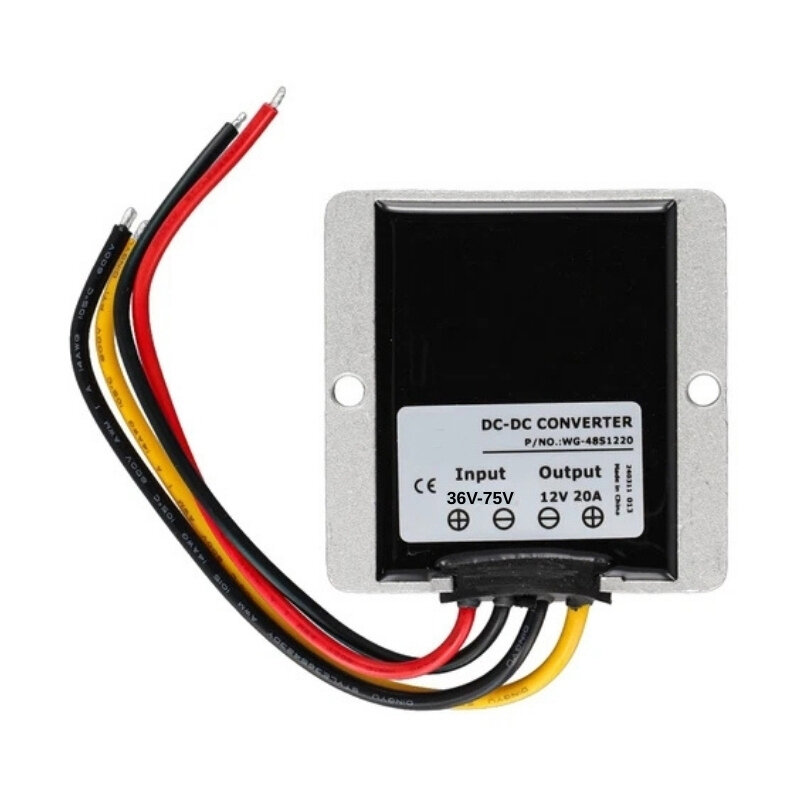

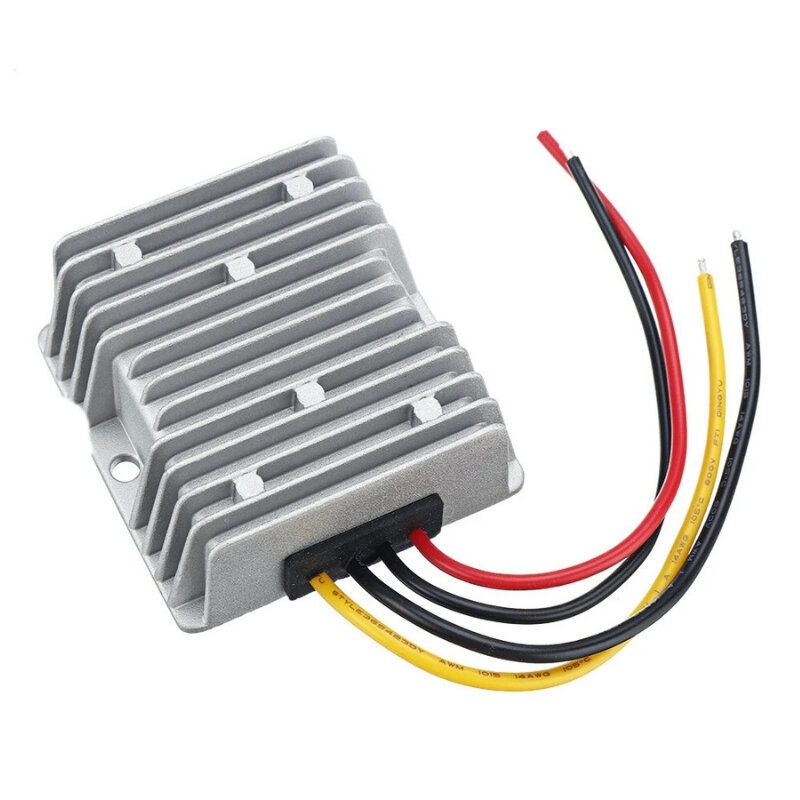

WG-75S1220 DC-DC 36-75V to 12V 20A Voltage Reducer Module

WG-75S1220 DC-DC 36-75V to 12V 20A Voltage Reducer Module

The WG-75S1220 DC-DC 36-75V to 12V 20A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Application Areas

• Automotive electronics (cars, forklifts, golf carts)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunications Equipment
• Marine applications (boat, yacht)
• LED and low-voltage electronic systems
• Medical and field devices

Specifications

• Model: WG-75S1220
• Supply Voltage: 36-75V DC
• Conversion Efficiency: 90%
• Output Voltage: 12V DC
• Output Current: 20A maximum
• Output Power: 240W
• Tolerance: < %1
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 14 AWG
