WG-90S1208 DC-DC 50-90V to 12V 8A Voltage Reducer Module

WG-90S1208 DC-DC 50-90V to 12V 8A Voltage Reducer Module

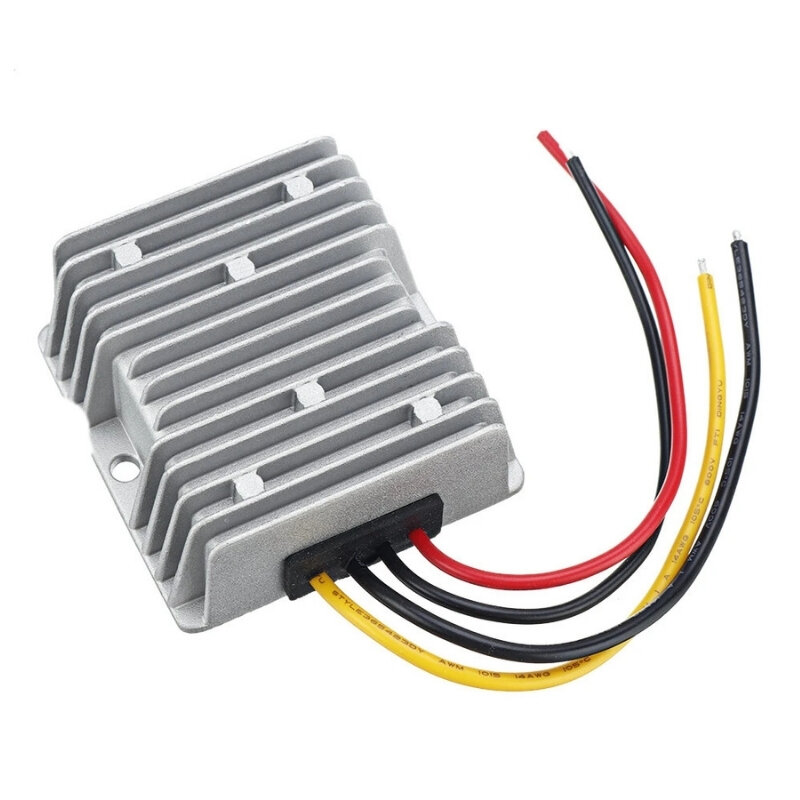

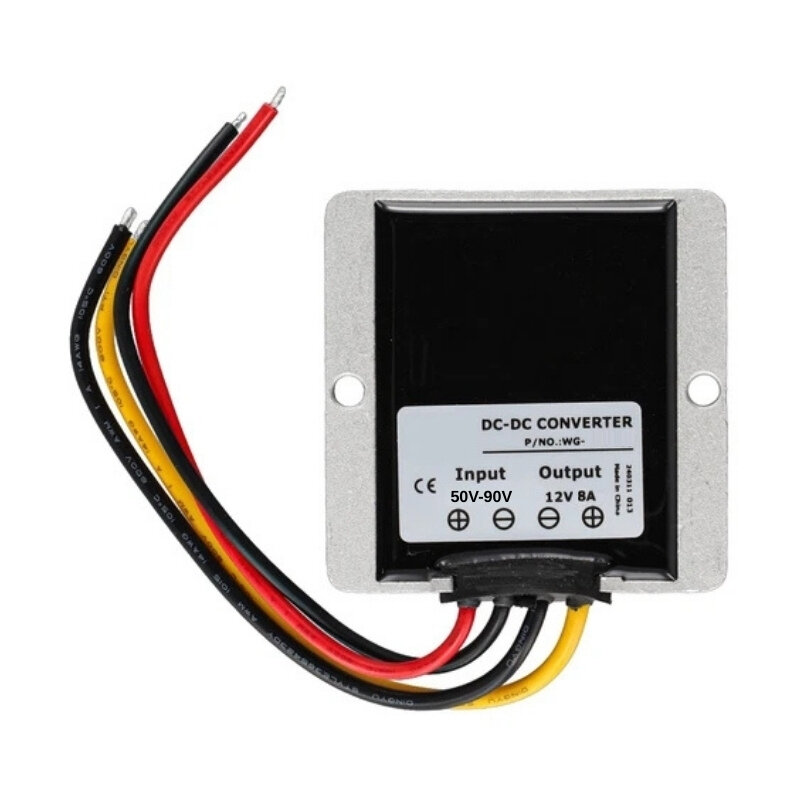

The WG-90S1208 DC-DC 50-90V to 12V 8A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Application Areas

• Automotive electronics (cars, forklifts, golf carts)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunications Equipment
• Marine applications (boat, yacht)
• LED and low-voltage electronic systems
• Medical and field devices

Specifications

• Model: WG-90S1208
• Supply Voltage: 50-90V DC
• Conversion Efficiency: 90%
• Output Voltage: 12V DC
• Output Current: 8A maximum
• Output Power: 96W
• Tolerance: < %1
• IP Rating: IP68
• Short Circuit Protection
• Overcurrent Protection
• Cable Thickness: 1mm2
