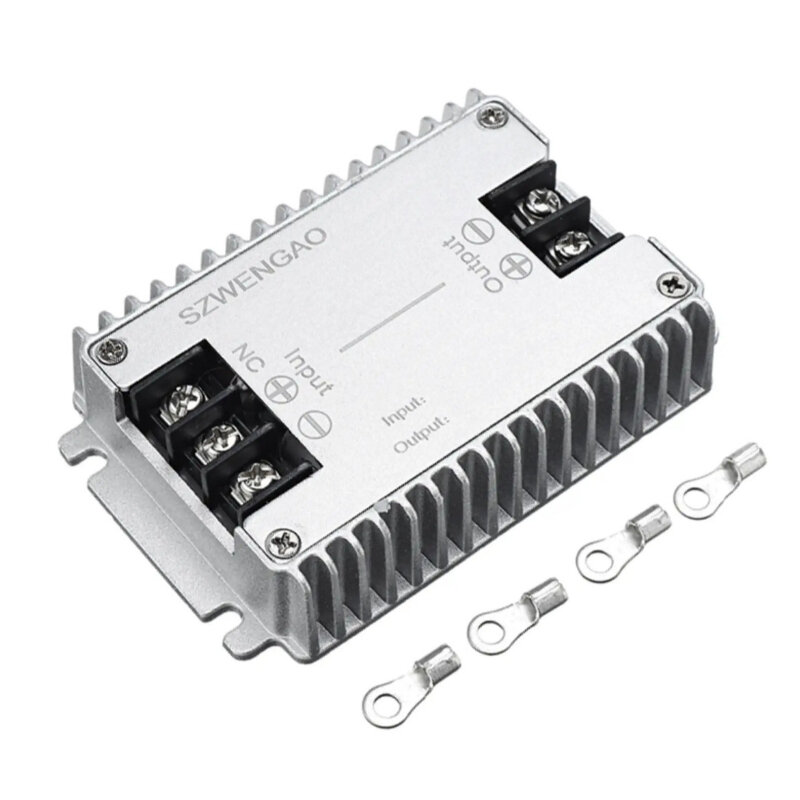

WGI08-72S12L DC-DC 50-90V to 12V 8A Voltage Reducer Module

WGI08-72S12L DC-DC 50-90V to 12V 8A Voltage Reducer Module

The WGI08-72S12L DC-DC 50-90V to 12V 8A Voltage Reducer Module is an industrial power converter designed to convert high DC input voltages to lower DC output voltages stably and safely.

WG series modules offer long-term and reliable operation in automotive, industrial, and energy systems with a wide input voltage range, high efficiency, and stable output performance.

Datasheet

Application Areas

• Vehicle electronics (car, forklift, golf cart)
• Industrial automation systems
• Alternative energy and battery systems
• Telecommunication equipment
• Marine applications (boat, yacht)
• LED and low voltage electronic systems
• Medical and field devices

Features

• Model: WGI08-72S12L
• Supply Voltage: 50-90V DC (recommended 72V DC)
• Conversion Efficiency: 92%
• Output Voltage: 12V DC Output Current: 8A maximum Output Power: 96W Error Tolerance: <1% IP Rating: IP65 Short Circuit Protection Overcurrent Protection Overtemperature Protection Overtemperature Protection
